Home >> Infiniti >> 2004 >> G35 x >> Repair and Diagnosis >> Engine Performance >> System >> 2004 - Engine Control System - Sedan >> Trouble Diagnosis >> DTC P0102, P0103: MAF Sensor >> CONSULT-II Reference Value in Data Monitor Mode

CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

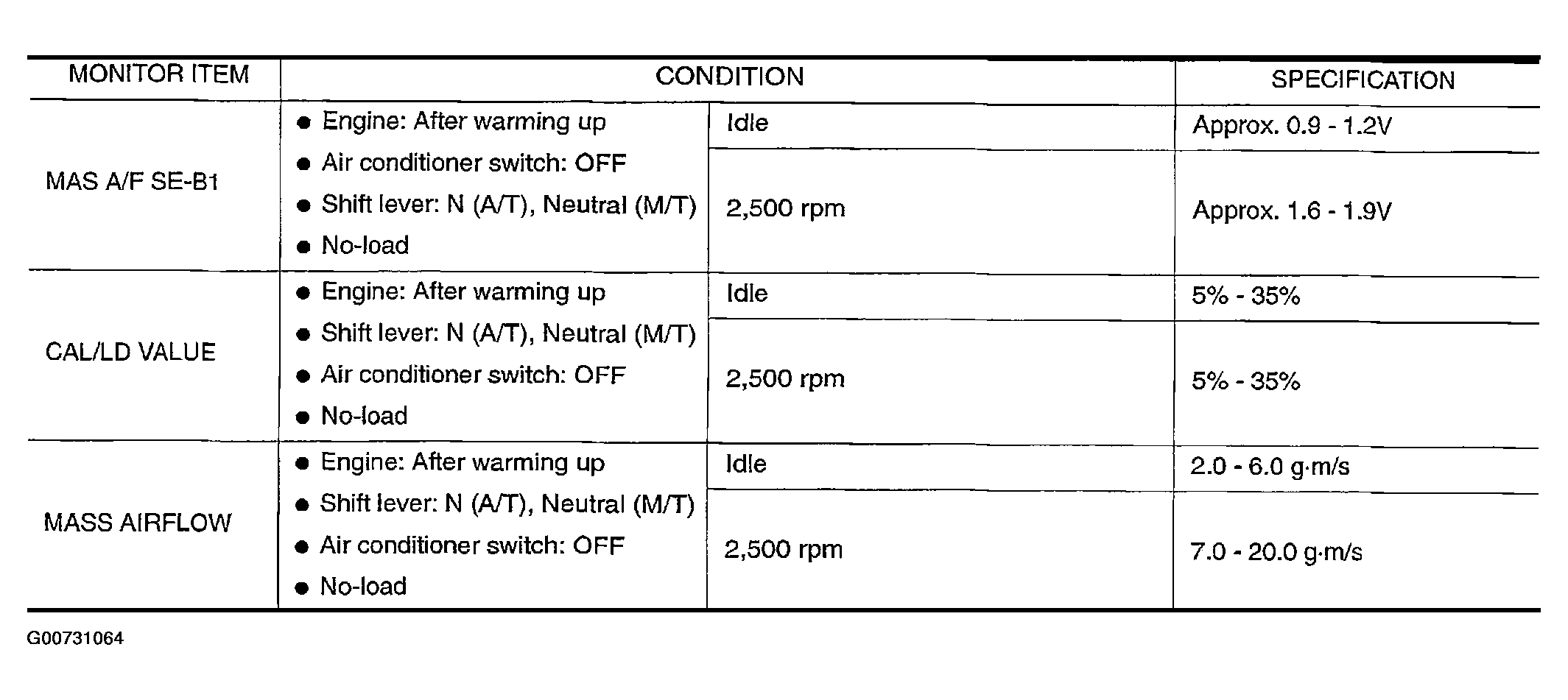

Fig 1: CONSULT-II Specification Data And Reference Values Table

G00731064

Courtesy of NISSAN MOTOR CO., U.S.A.
