Terminals And Reference Value For Combination Meter (With Navigation System)

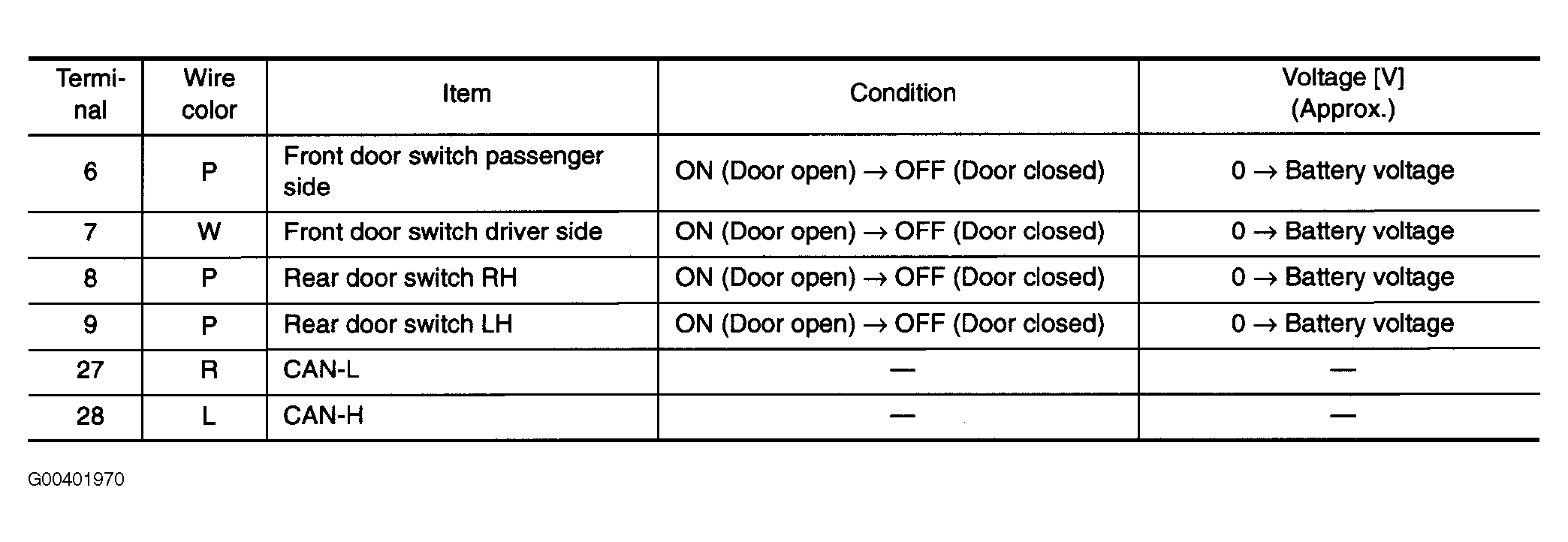

Fig 1: Displaying Terminals & Reference Value For Combination Meter

G00401970

Courtesy of NISSAN MOTOR CO., U.S.A.
