ASCD Indicator: Wiring Diagram

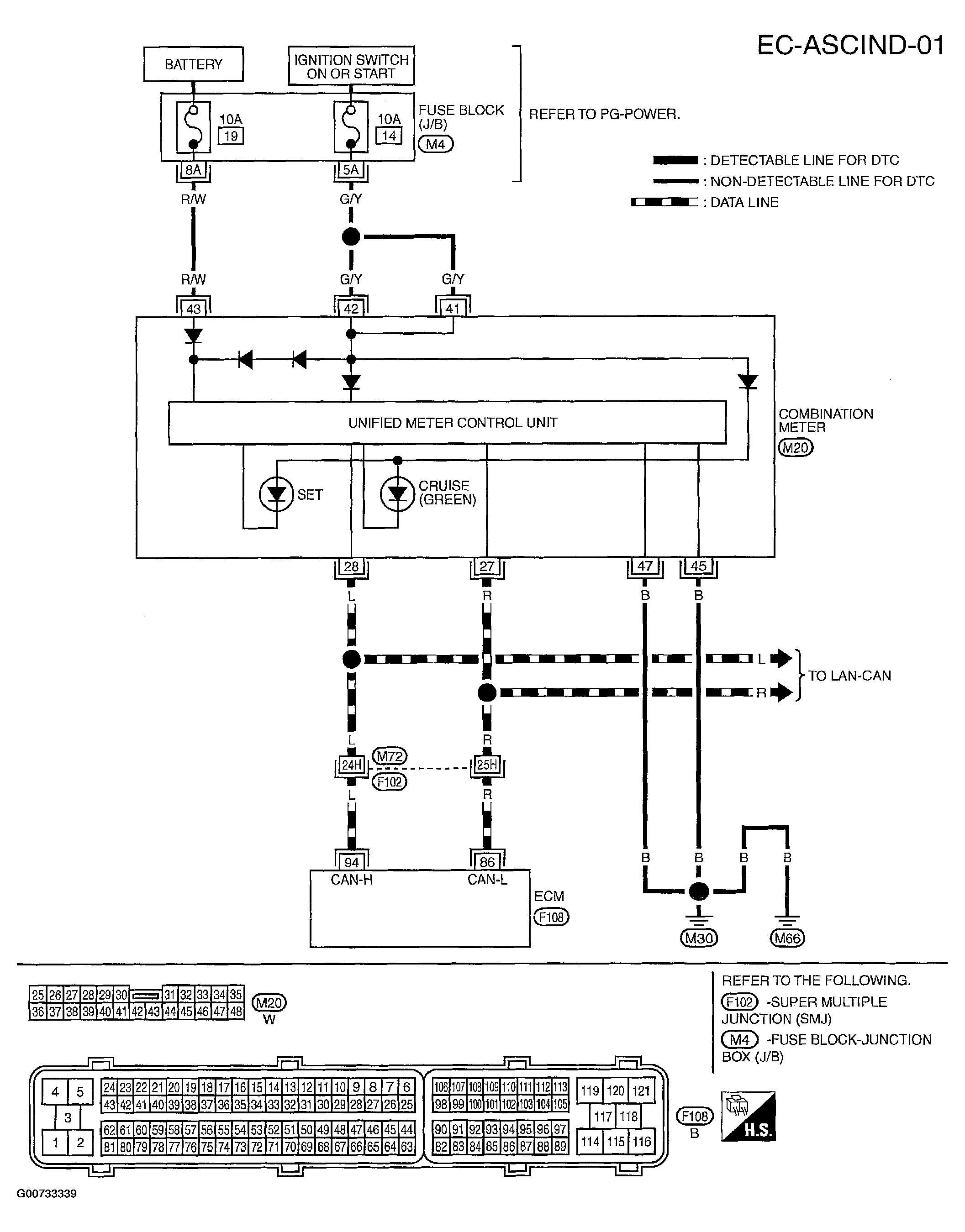

Fig 1: Wiring Diagram (EC-ASCIND-01)

G00733339

Courtesy of NISSAN MOTOR CO., U.S.A.
