2004.5 - Engine Control System - Introduction - Coupe
>>
Engine Control System
>>
Vacuum Hose Drawing
Vacuum Hose Drawing

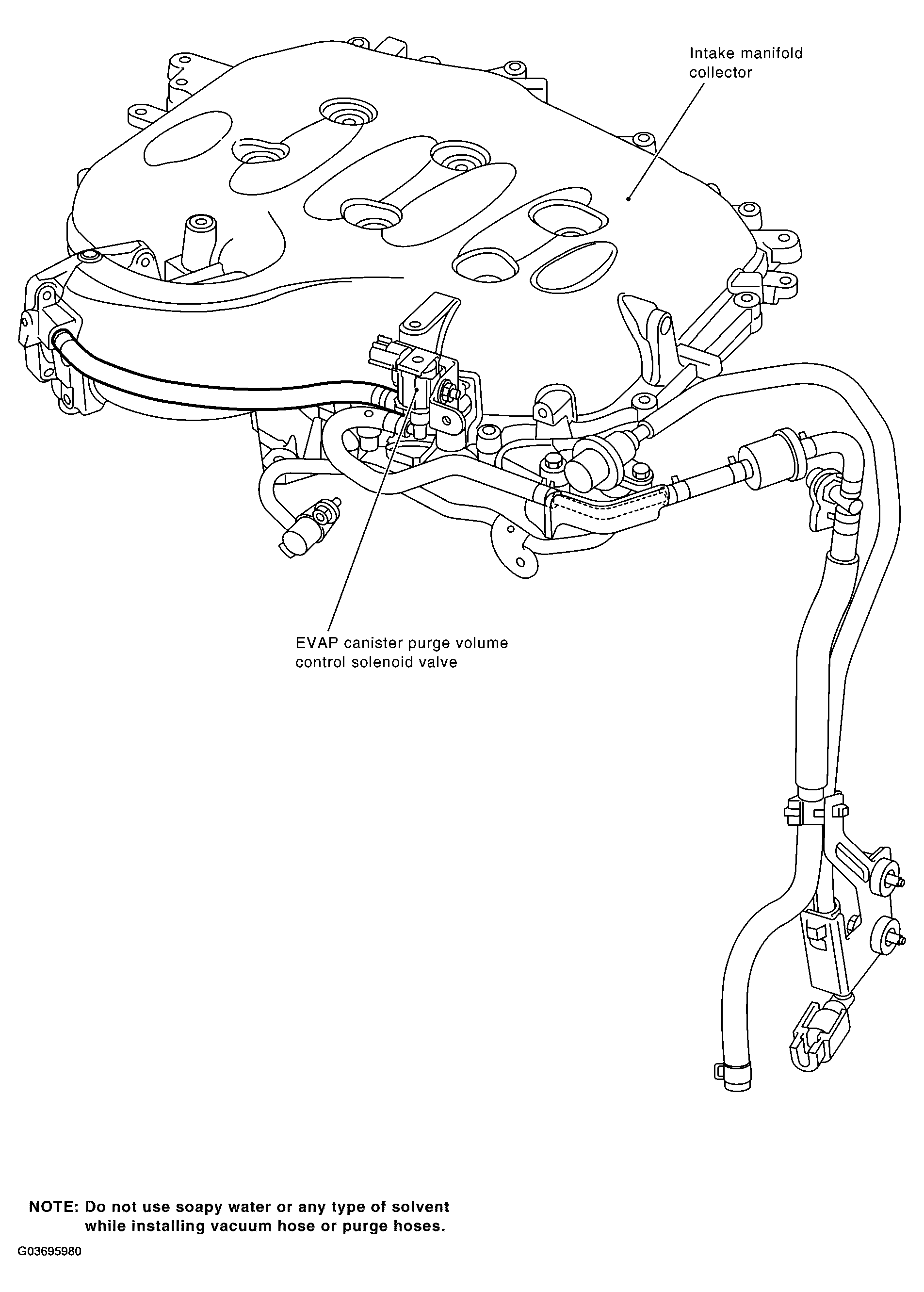

Fig 1: View Of Vacuum Hose
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
SYSTEM DIAGRAM
" for Vacuum Control System
.
