Home >> Infiniti >> 2004 >> G35 Base, 2D Coupe, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 2004 - Engine Control System - Coupe >> Trouble Diagnosis >> CONSULT-II Function >> Function

CONSULT-II Function: Function

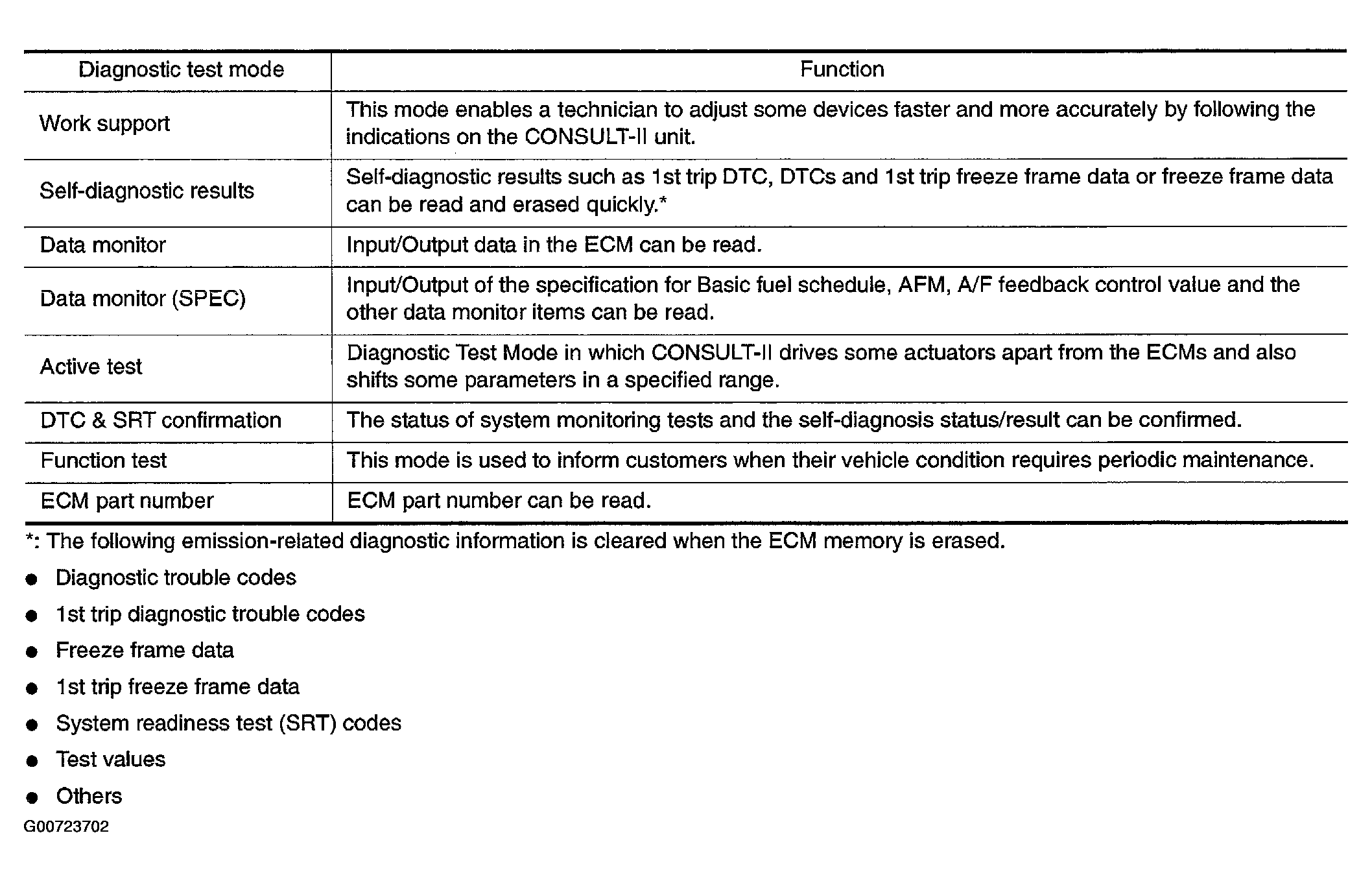

Fig 1: CONSULT-II Function

G00723702

Courtesy of NISSAN MOTOR CO., U.S.A.
