2004 - Engine Control System - Coupe
>>
Engine Control System
>>
System Chart
System Chart

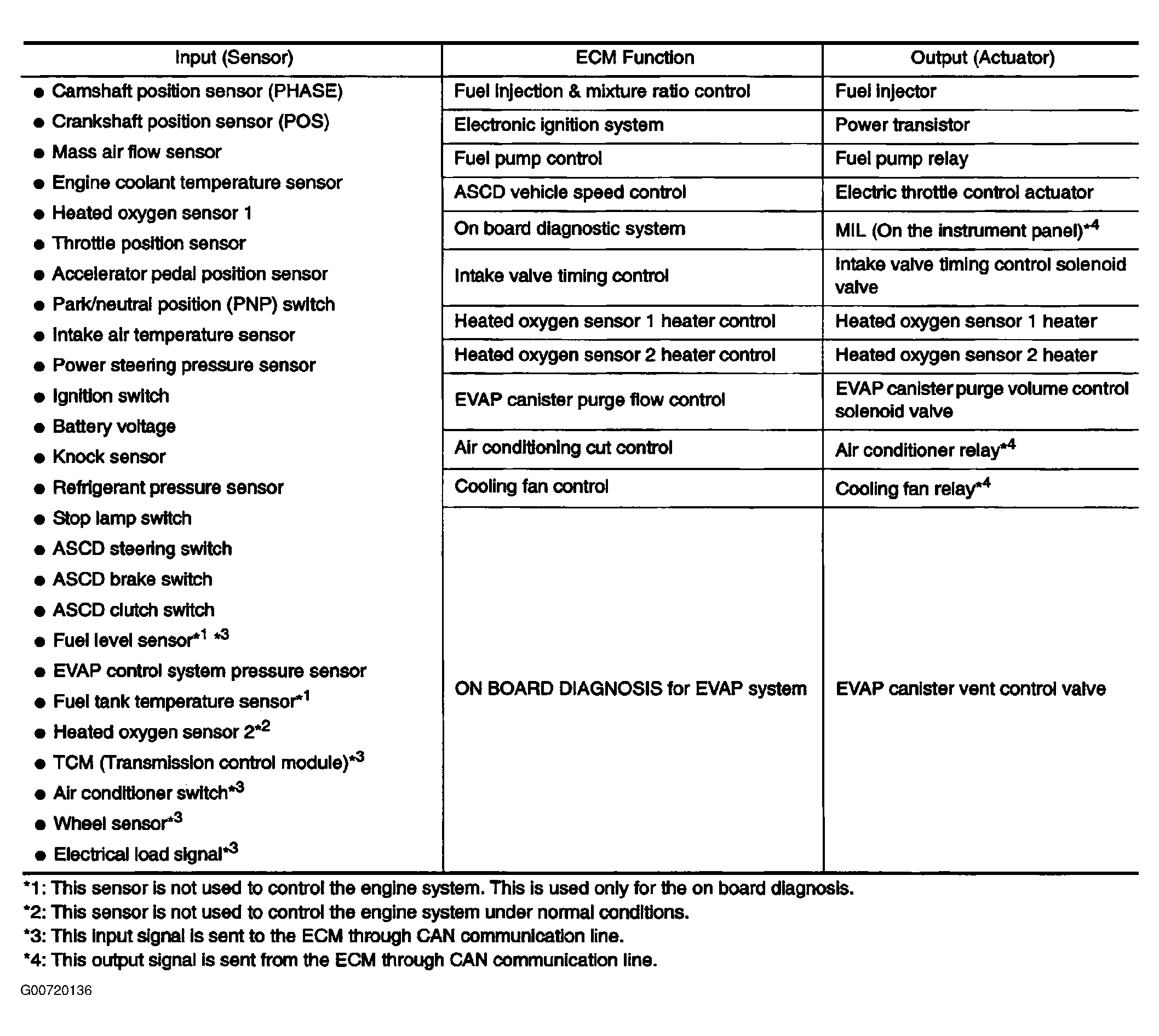

Fig 1: System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
