System Description

NOTE: If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

Cooling Fan Control

Fig 1: System Description

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

Cooling Fan Operation

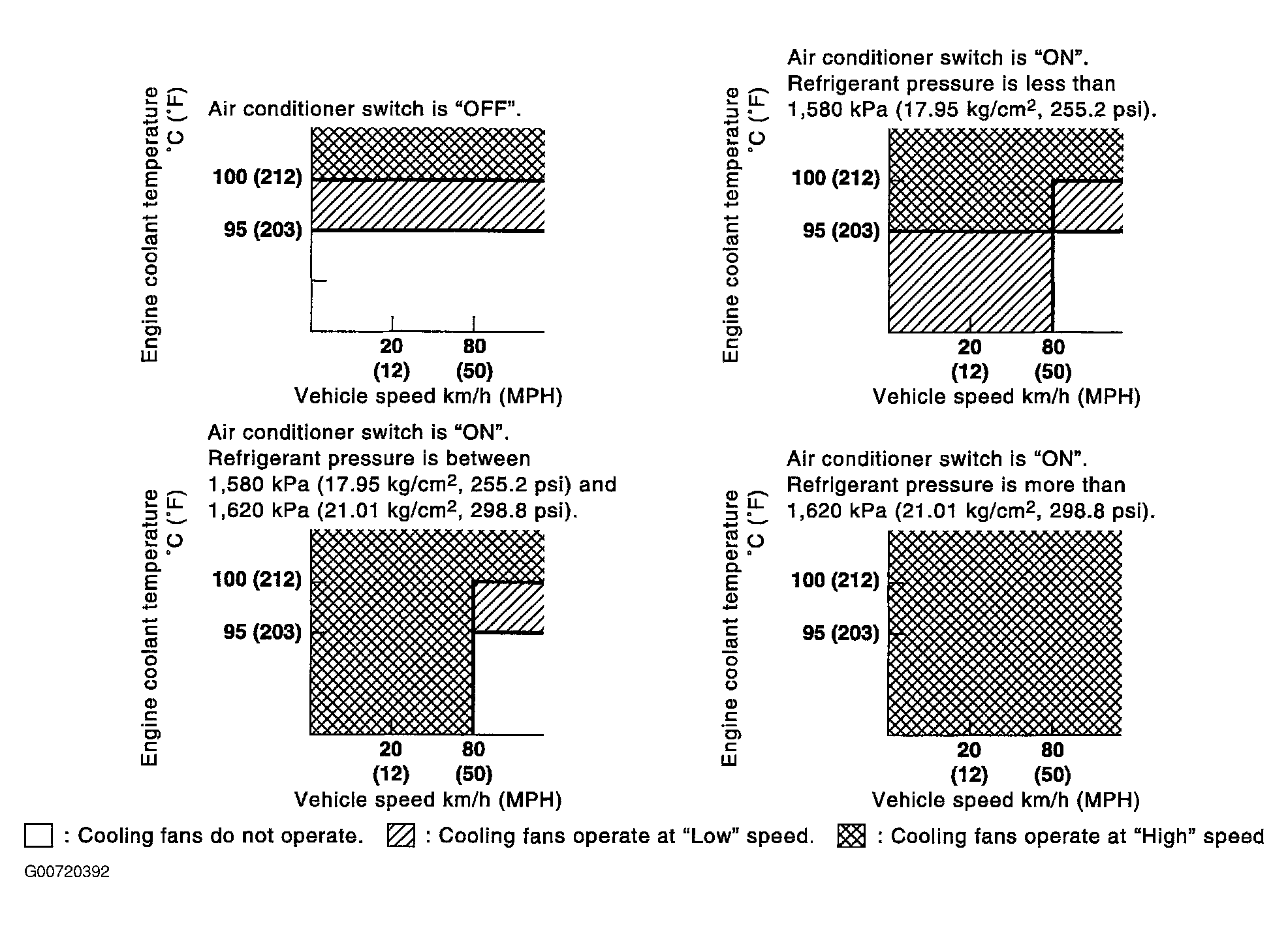

Fig 2: Cooling Fan Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling Fan Relay Operation

The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.

Fig 3: Cooling Fan Relay Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.
