Manual Mode Switch

Check continuity between terminals.

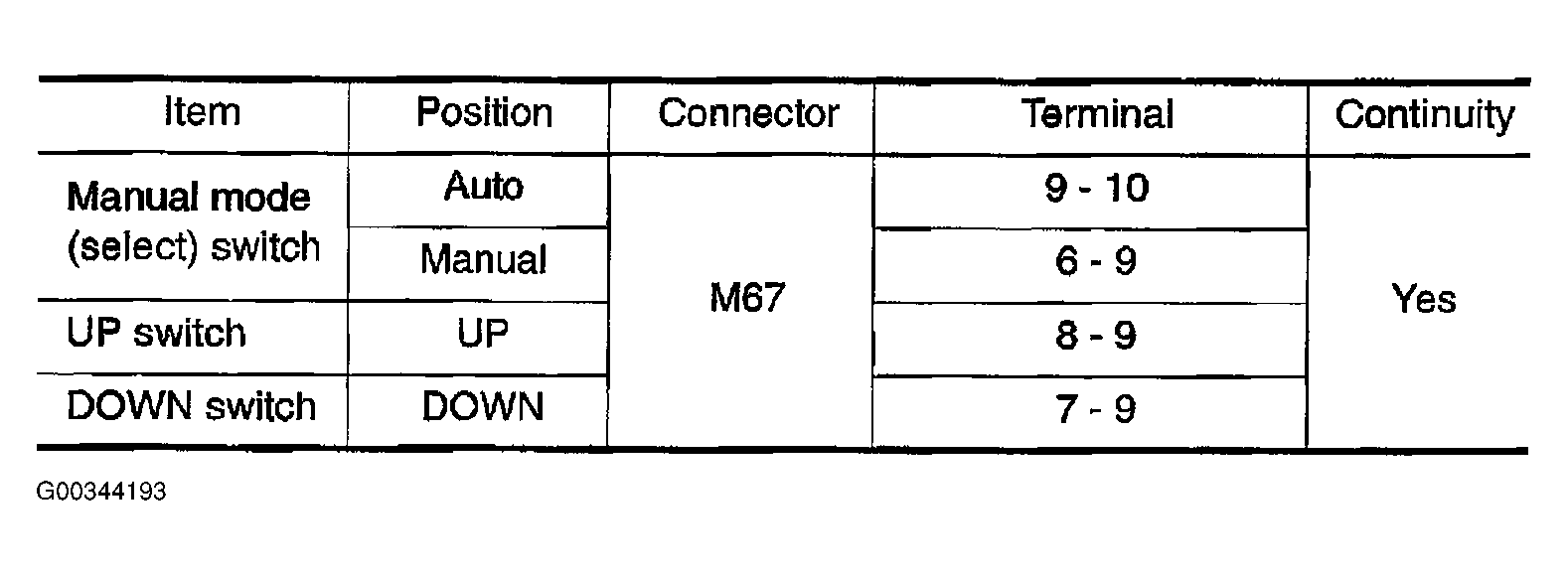

Fig 1: Continuity Test Terminals For Manual Mode Switch
G00344193Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Manual Mode Switch Connector Terminals
G00344194Courtesy of NISSAN MOTOR CO., U.S.A.
