Checking Condition Of Installation

Check installation condition of steering gear assembly, front suspension, axle and steering column.
Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial direction.
1. End play of the axle direction for steering wheel : 0 mm (0 in)
Check if the mounting bolts for steering gear assembly are loose or not. Refer to POWER STEERING GEAR AND LINKAGE .

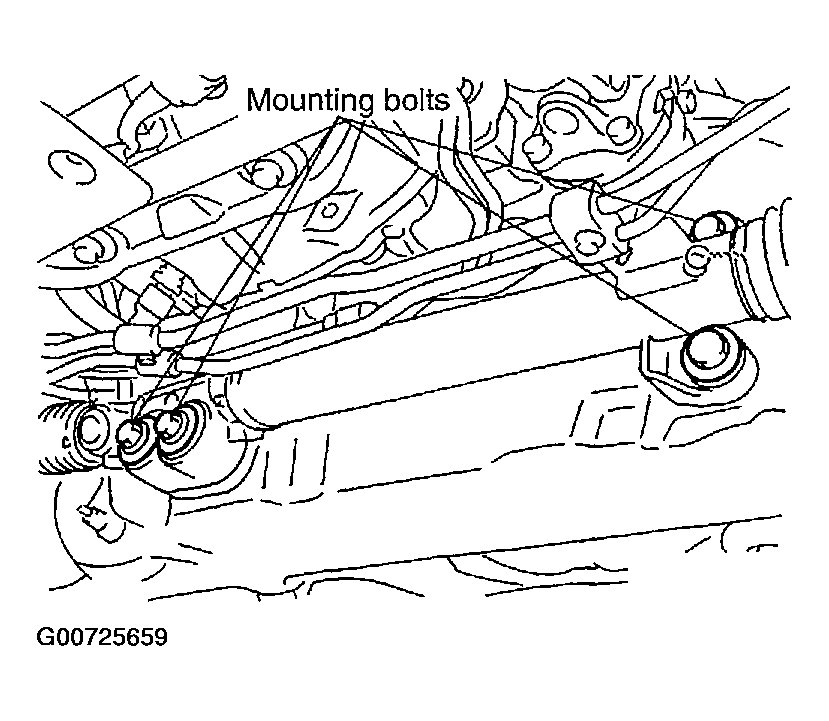

Fig 1: Locating Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
