Section 264 (Automatic Transmission)
>>
Overall System
>>
Control System
>>
Control System
Control System
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

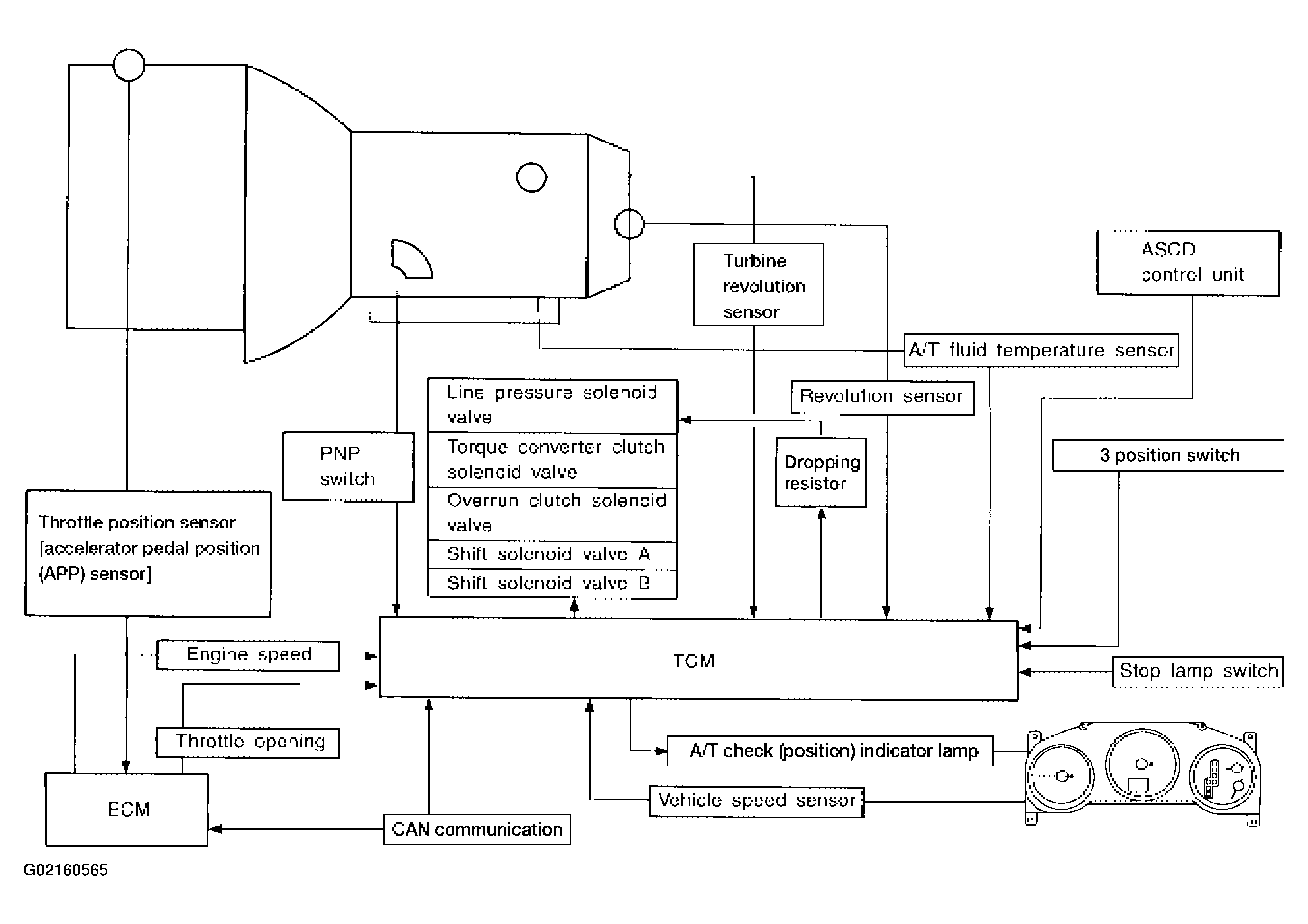

Fig 1: Automatic Transaxle Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
