Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

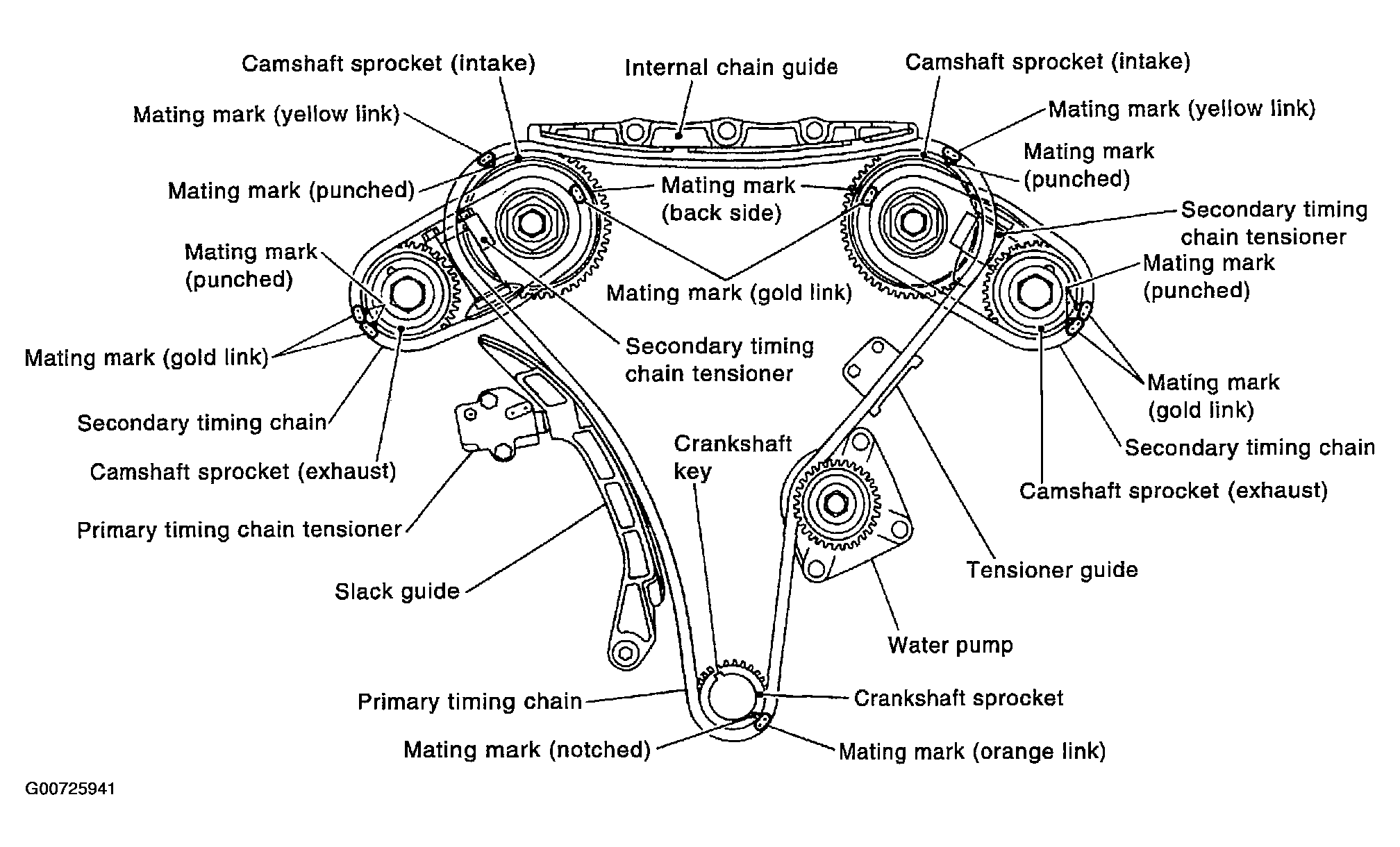

NOTE: The figure below shows the relationship between the mating mark on each timing chain and that on the corresponding sprocket, with the components installed.

Fig 1: Locating Timing Chain Alignment Marks

Courtesy of NISSAN MOTOR CO., U.S.A.

Install timing chain tensioners (secondary) to cylinder head as the following if removed. Refer to INSTALLATION .
1. Install chain tensioners with stopper pin attached and new O-rings.
2. Install No. 1 camshaft brackets. Refer to INSTALLATION .

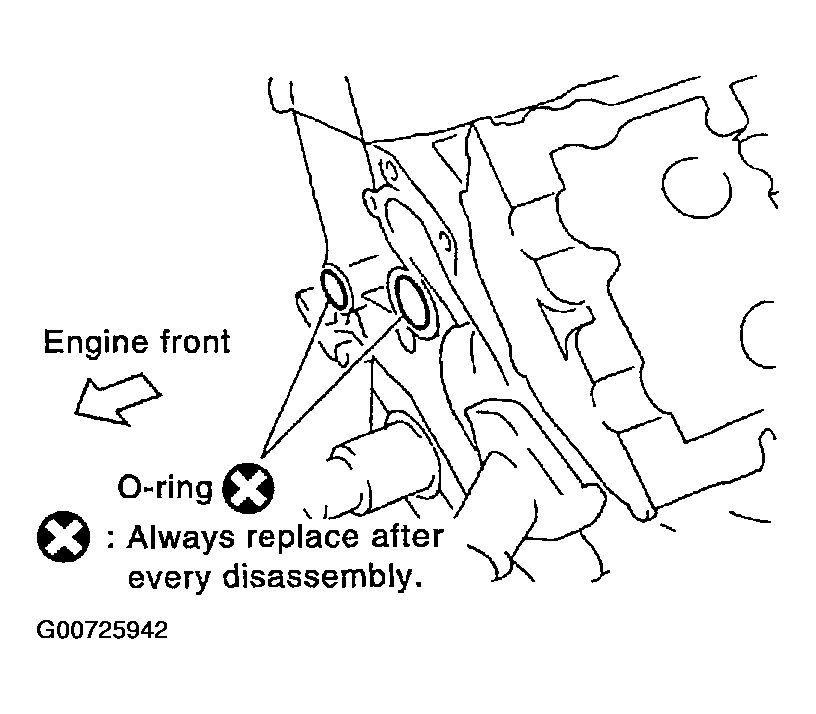

Install new O-rings onto cylinder block.

Fig 2: Installing New O-Rings To Cylinder Block
Courtesy of NISSAN MOTOR CO., U.S.A.

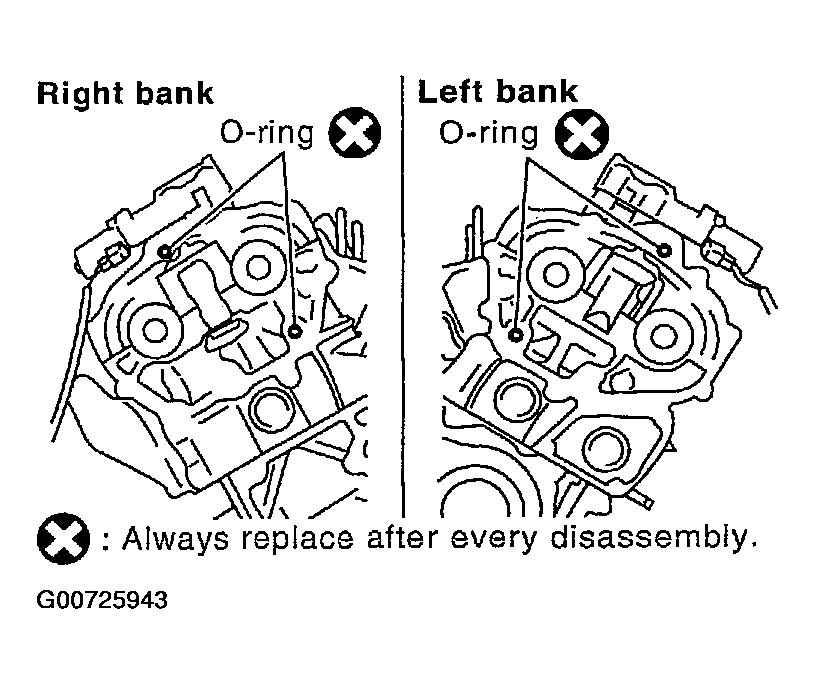

Install new O-rings to cylinder head.

Fig 3: Installing New O-Rings To Cylinder Heads
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply liquid gasket to rear timing chain case back side as shown with tube presser [SST: WS39930000 (-)].

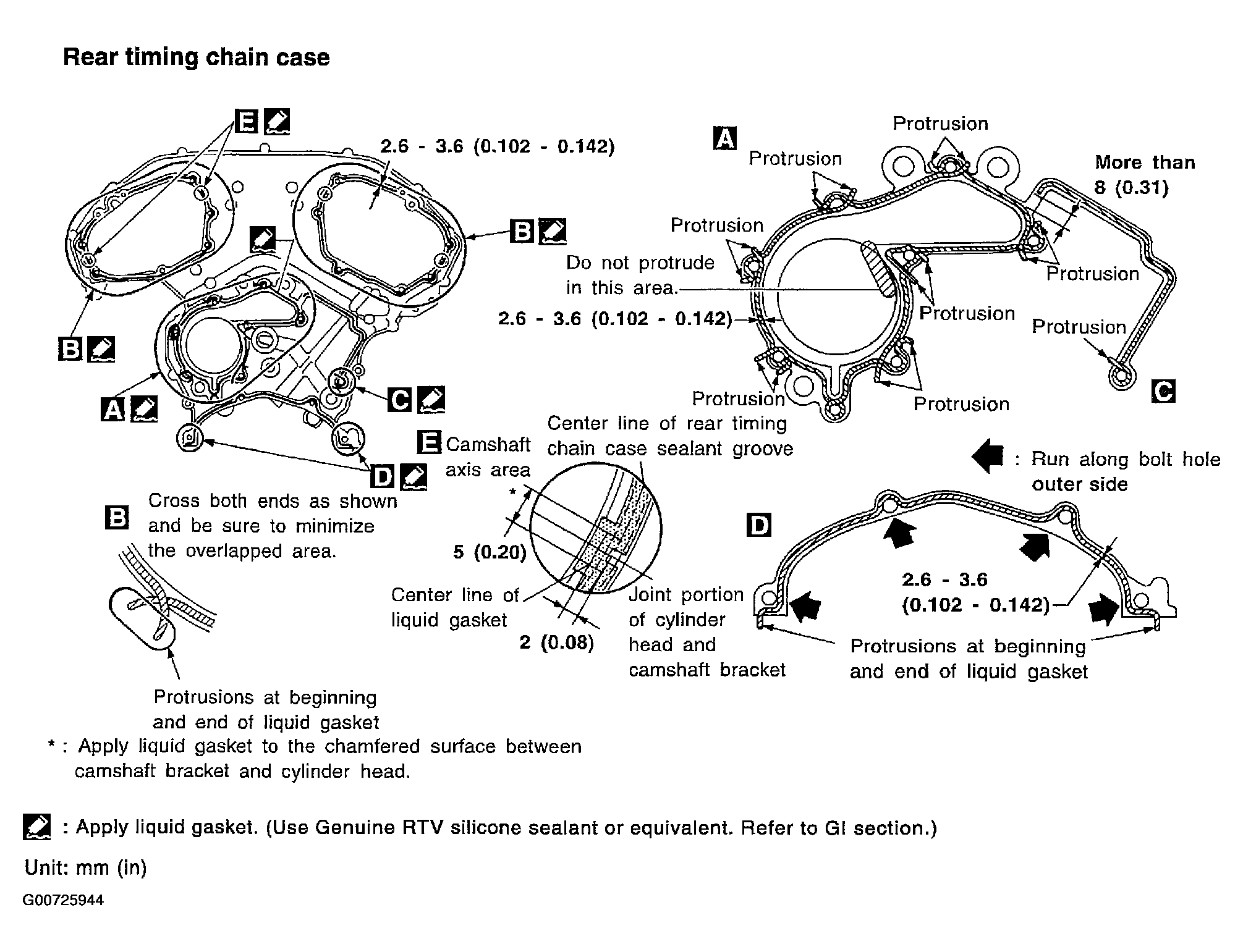

Fig 4: Locating Areas For Applying Liquid Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
CAUTION:
- For "A" in the figure, completely wipe out liquid gasket extended on a portion touching at engine coolant.
- Apply liquid gasket on installation position of water pump and cylinder head very completely.
Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block and install case.
- Make sure O-rings stay in place during installation to cylinder block and cylinder head.

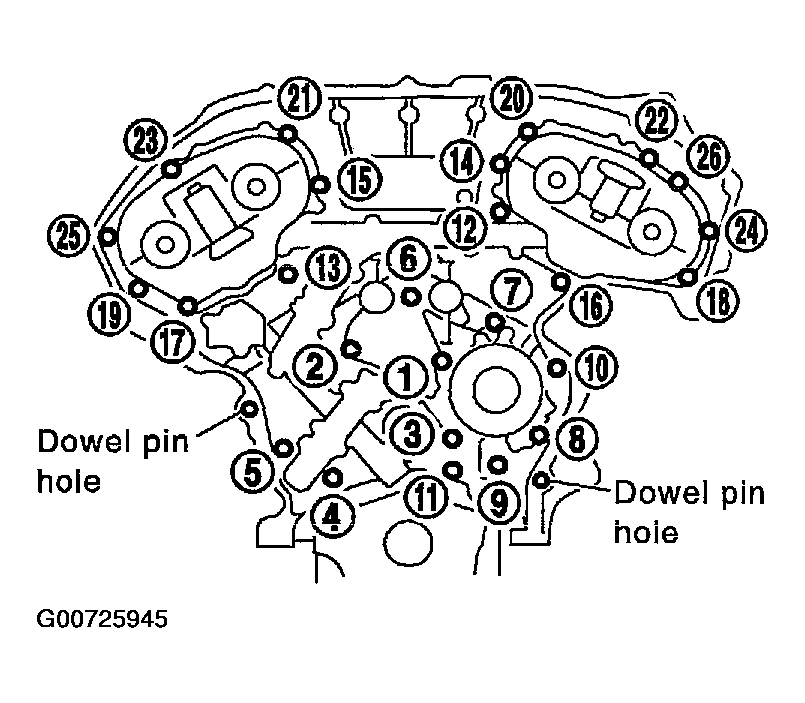

1. Tighten mounting bolts in the numerical order as shown.
  - There are two bolt lengths used. Follow the below for proper bolt length specifications.

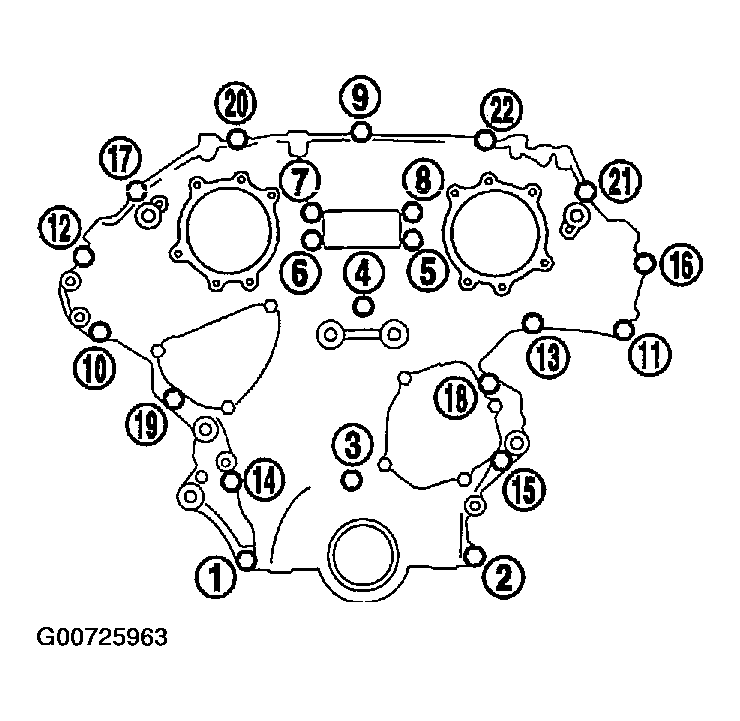

    Fig 5: Identifying Rear Timing Chain Case Bolt Tightening Sequence
    Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Bolt length/Bolt position:
    2. 20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10
    3. 16 mm (0.63 in) : Except the above:
    4. 12.7 N.m (1.3 kg-m, 9 ft-lb)
2. After all bolts are temporarily tightened, retighten them to the specification in the numerical order as shown.
  - If RTV Silicone Sealant protrudes, wipe it off immediately.
After installing rear timing chain case, check surface height difference between following parts on oil pan mounting surface.

Fig 6: Checking Surface Height Differences
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard (Rear timing chain case to cylinder block) : - 0.24 to 0.14 mm (-0.0094 to 0.0055 in)
  - If not within standard, repeat above installation procedure.
Position crankshaft so No. 1 piston is set at TDC on the compression stroke.

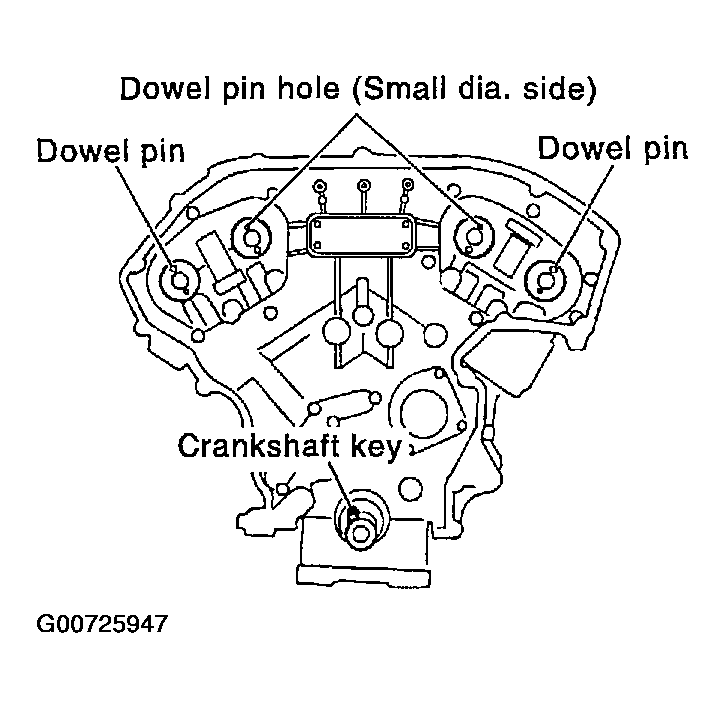

- Make sure that dowel pin hole, dowel pin and crankshaft key are located as shown.

  Fig 7: Ensuring Proper Camshaft Dowel Pin/Hole & Crankshaft Key Alignment
  Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Though camshaft does not stop at position as shown in the figure, for the placement of cam nose, it is generally accepted camshaft is placed for the same direction of the figure.
1. Camshaft dowel pin hole (intake side) : At cylinder head upper face side in each bank.
2. Camshaft dowel pin (exhaust side) : At cylinder head upper face side in each bank.
3. Crankshaft key: At cylinder head side of right bank.
  CAUTION: Hole on small dia. side must be used for intake side dowel pin hole. Do not misidentify (ignore big dia. side).
Install timing chains (secondary) and camshaft sprockets.
CAUTION: Matching marks between timing chain and sprockets slip easily. Confirm all matching mark positions repeatedly during the installation process.

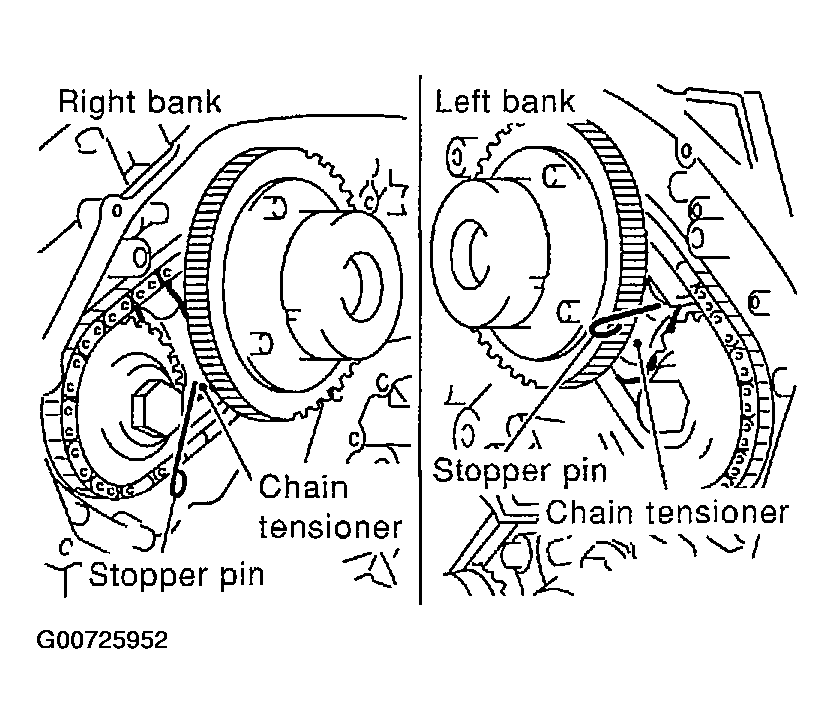

1. Push plunger of secondary chain tensioner and keep it pressed in with a stopper pin.

  Fig 8: Using Stopper Pins To Keep Secondary Chain Tensioners Compressed
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install secondary timing chains and camshaft sprockets.

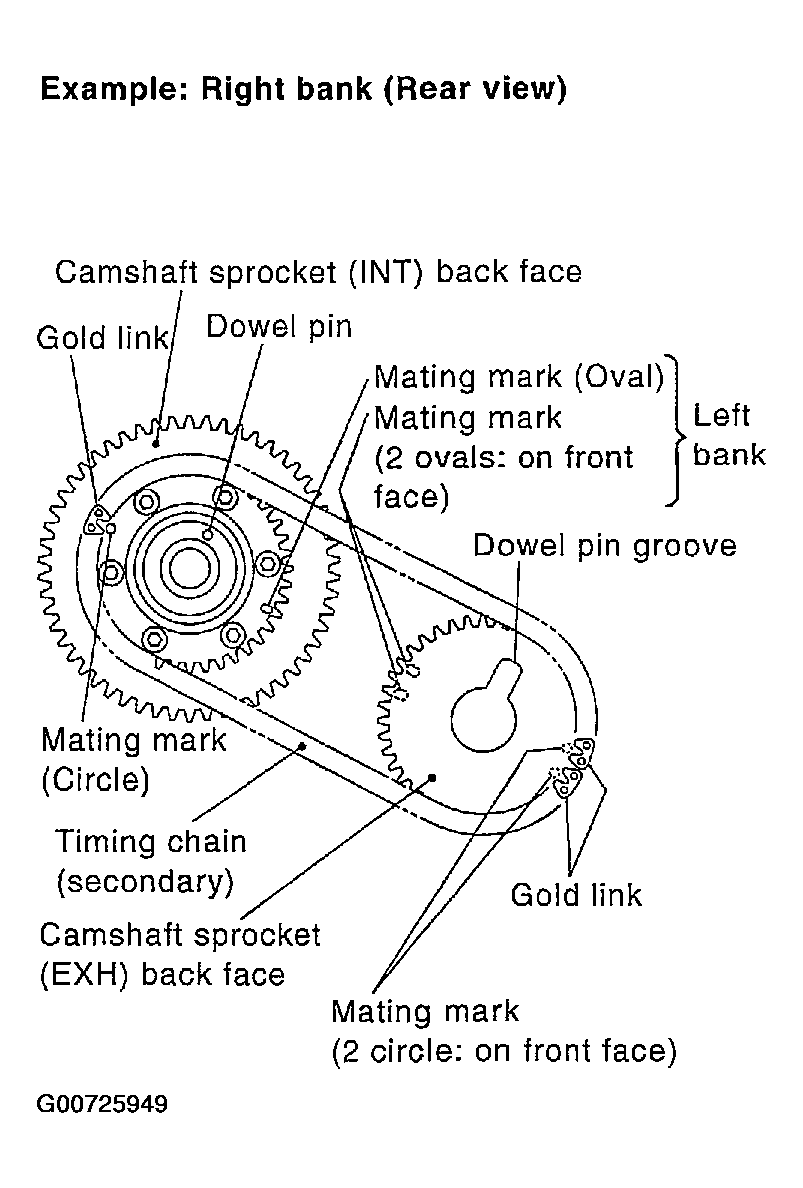

- Align the mating marks on secondary timing chain (gold link) with the ones on intake and exhaust camshaft sprockets (stamped), and install them.

  Fig 9: Aligning Camshaft Sprocket Mating Marks
  Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
- Mating marks for intake camshaft sprocket are on the back side of secondary camshaft sprocket.
- There are two types of mating marks, circle and oval types. They should be used for the right and left banks, respectively.
  1. Right bank: use circle type.
  2. Left bank: use oval type.
- Align dowel pin and pin hole on camshaft with the groove and dowel pin on sprocket, and install them.
- On the intake side, align the pin hole on the small diameter side of camshaft front end with dowel pin on the back side of camshaft sprocket, and install them.
- On the exhaust side, align dowel pin on camshaft front end with the pin groove on camshaft sprocket, and install them.
- In case that positions of each mating mark and each dowel pin are not fit on mating parts, make fine adjustment to the position holding the hexagonal portion on camshaft with wrench or equivalent.
- Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is enough to prevent the dislocation of dowel pins.
- It may be difficult to visually check the dislocation of mating marks during and after installation. To make the matching easier, make a mating mark on the top of sprocket teeth and its extended line in advance with paint.

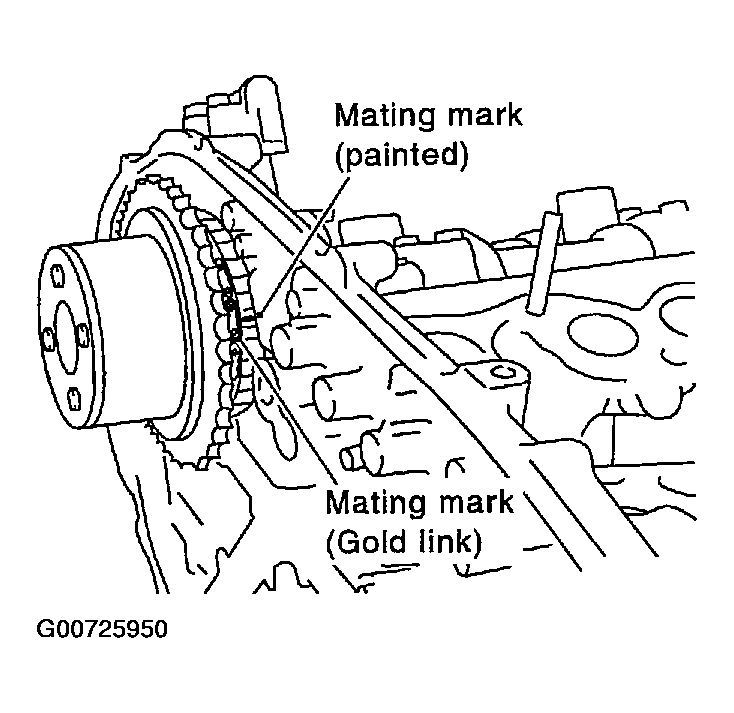

  Fig 10: Matching Painted Mating Mark With Gold Link
  Courtesy of NISSAN MOTOR CO., U.S.A.

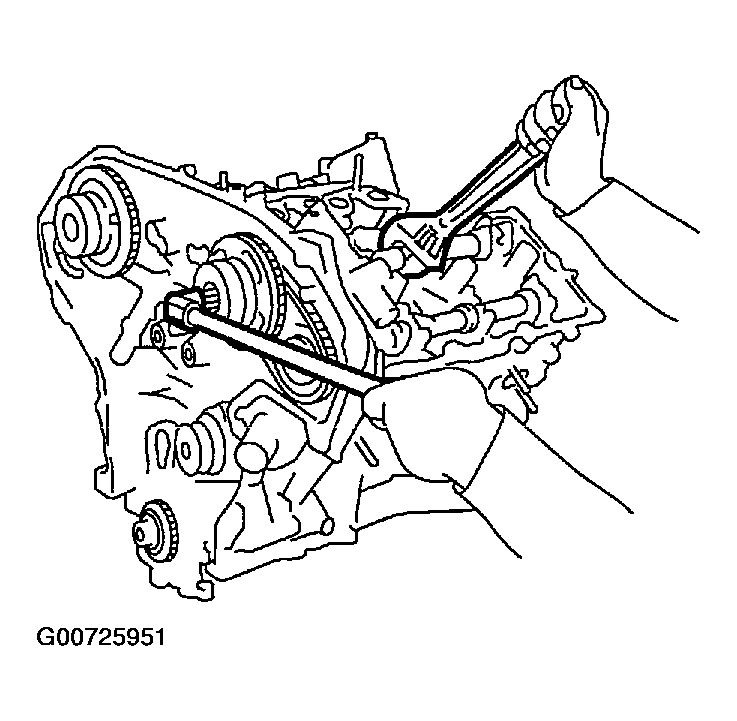

After confirming the mating marks are aligned, tighten camshaft sprocket mounting bolts.
- Secure camshaft using a wrench at the hexagonal portion to tighten mounting bolts.

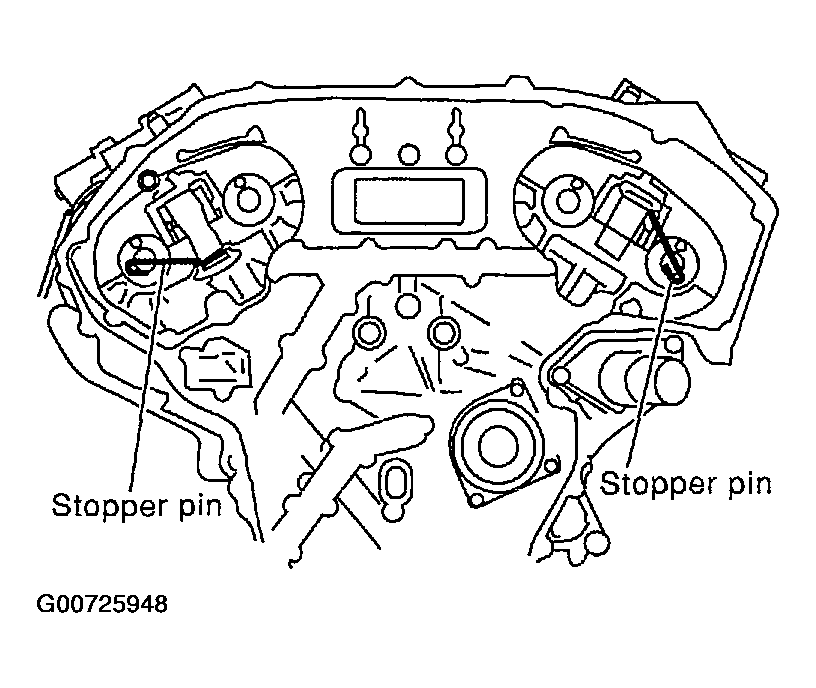

Pull stopper pins out from timing chain tensioners (secondary).

Fig 12: Removing Stopper Pins From Secondary Timing Chain Tensioners
Courtesy of NISSAN MOTOR CO., U.S.A.
Install primary timing chain as follows:
1. Install crankshaft sprocket.
  - Make sure the mating marks on crankshaft sprocket face the front of engine.

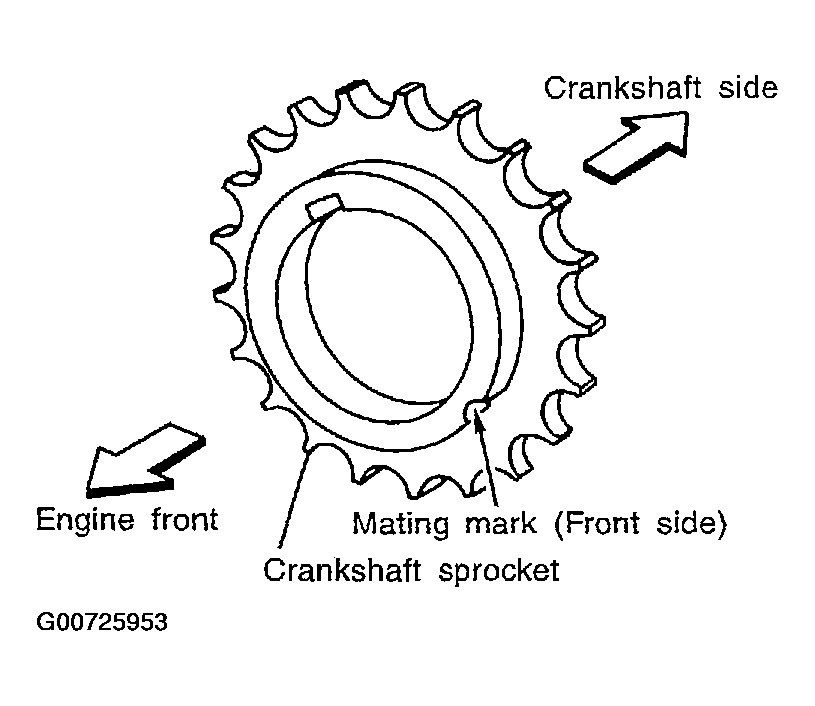

  Fig 13: Identifying Primary Timing Chain Sprocket Mating Mark
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install primary timing chain.
  - Install primary timing chain so the mating mark (punched) on camshaft sprocket is aligned with the yellow link on timing chain, while the mating mark (notched) on crankshaft sprocket is aligned with the orange one on timing chain, as shown.

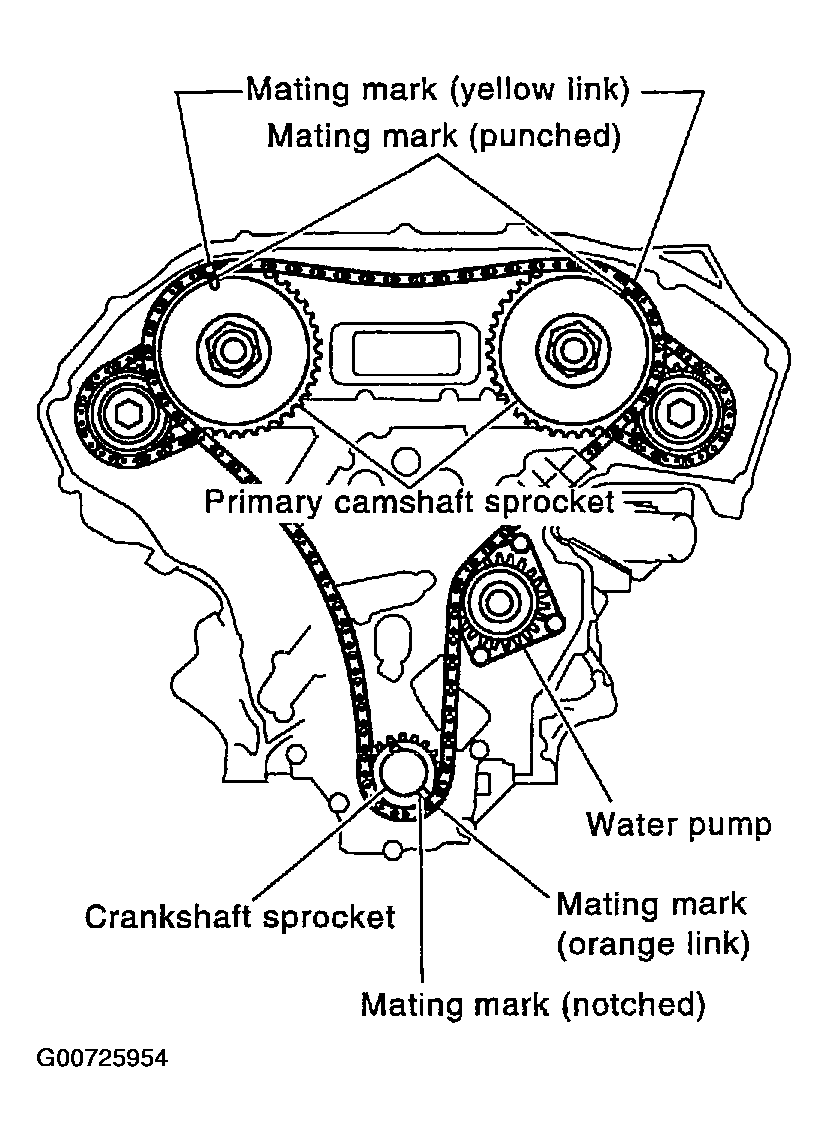

    Fig 14: Aligning Primary Timing Chain
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - When it is difficult to align mating marks of primary timing chain with each sprocket, gradually turn camshaft using a wrench on the hexagonal portion to align it with the mating marks.
  - During alignment, be careful to prevent dislocation of mating mark alignments of secondary timing chains.

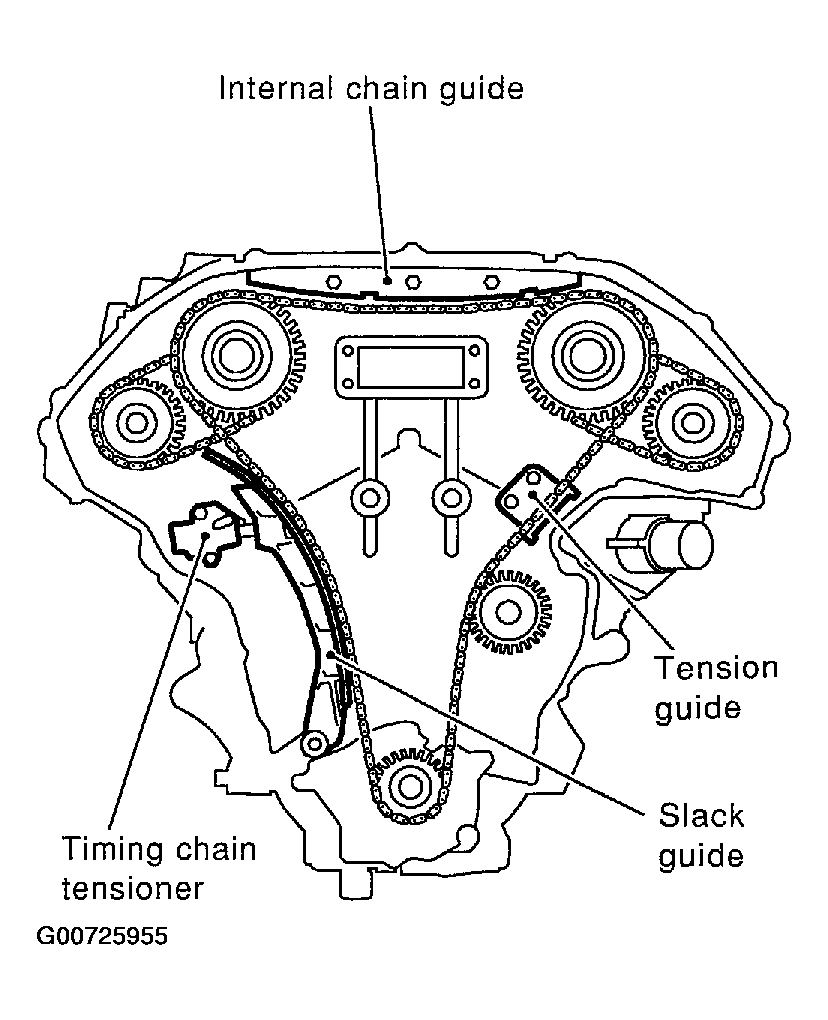

Install internal chain guide and timing chain tensioner (primary).

Fig 15: Installing Primary Timing Chain Guides
Courtesy of NISSAN MOTOR CO., U.S.A.
Install slack guide.
CAUTION: Do not overtighten slack guide mounting bolts. It is normal for a gap to exist under the bolt seats when mounting bolts are tightened to specification.

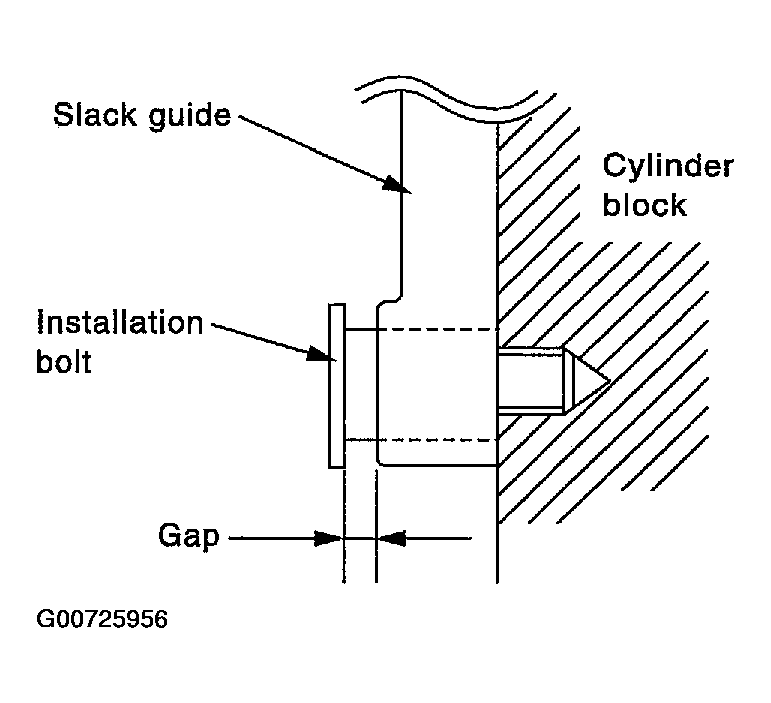

Fig 16: Confirming Slack Guide Gap After Installation
Courtesy of NISSAN MOTOR CO., U.S.A.
Install chain tensioner for slack guide.

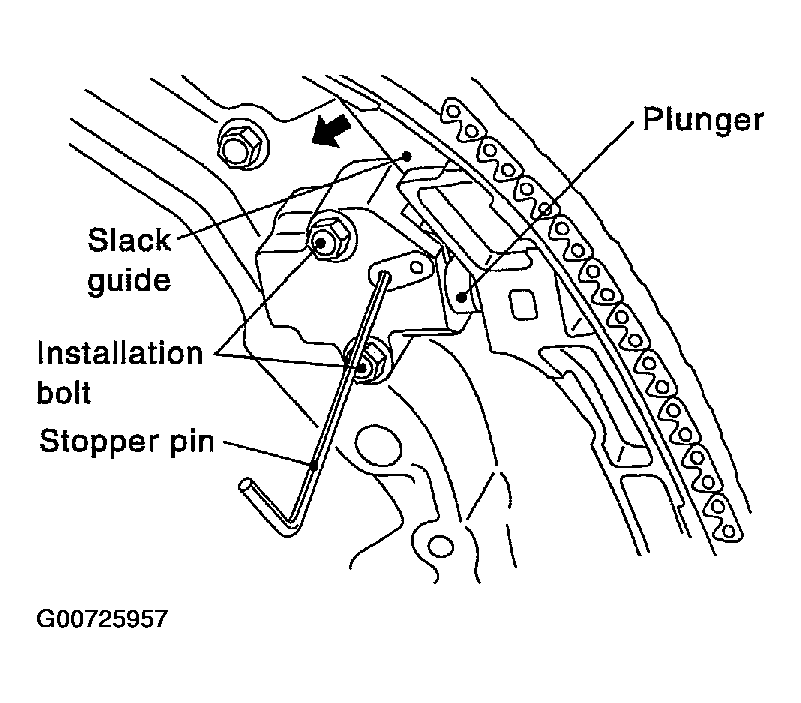

Fig 17: Installing Chain Tensioner For Slack Guide
Courtesy of NISSAN MOTOR CO., U.S.A.
- When installing chain tensioner, push in sleeve and keep it pressed in with stopper pin.
- Remove any dirt and foreign materials completely from the back and the mounting surfaces of chain tensioner.
- After installation, pull out stopper pin by pressing slack guide.
Reconfirm that the mating marks on sprockets and timing chain have not slipped out of alignment.
Install new O-rings on rear timing chain case.

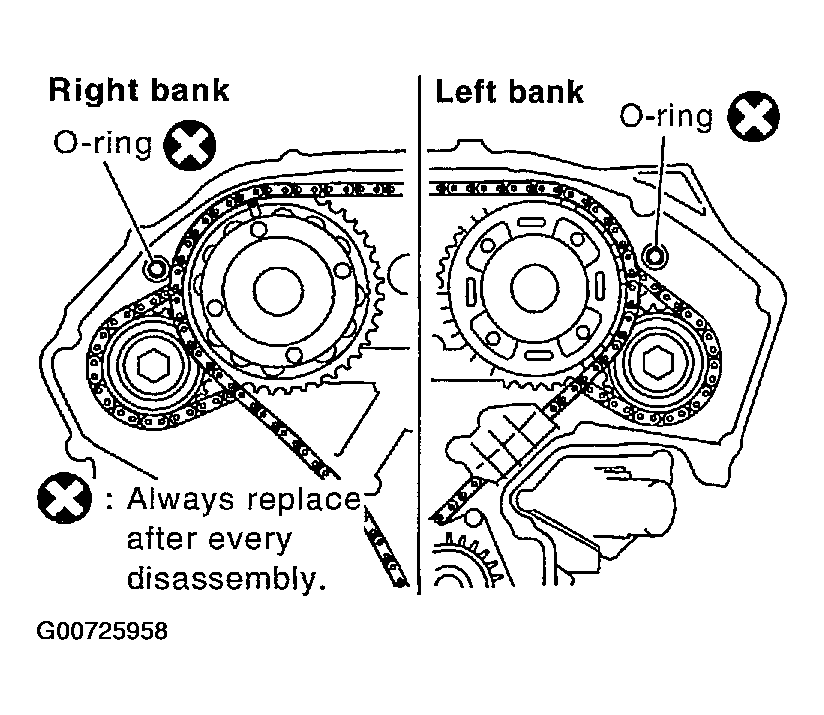

Fig 18: Installing New O-Rings On Rear Timing Chain Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front oil seal on front timing chain case.
- Apply new engine oil to the oil seal edges.

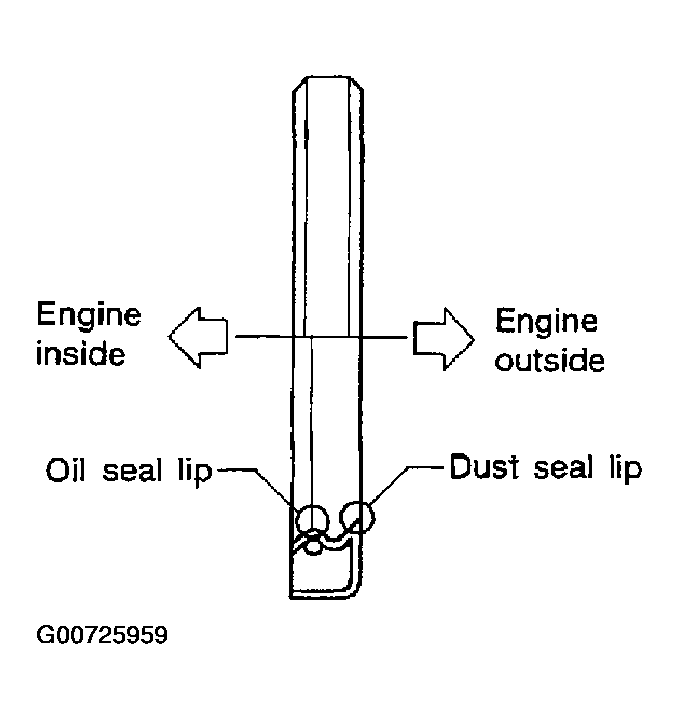

- Install it so that each seal lip is oriented as shown in the figure.

  Fig 19: Identifying Engine Oil Seal Installation Direction
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Using suitable drift, press-fit oil seal until it becomes flush with front timing chain case end face.
- Make sure the garter spring is in position and seal lip is not inverted.

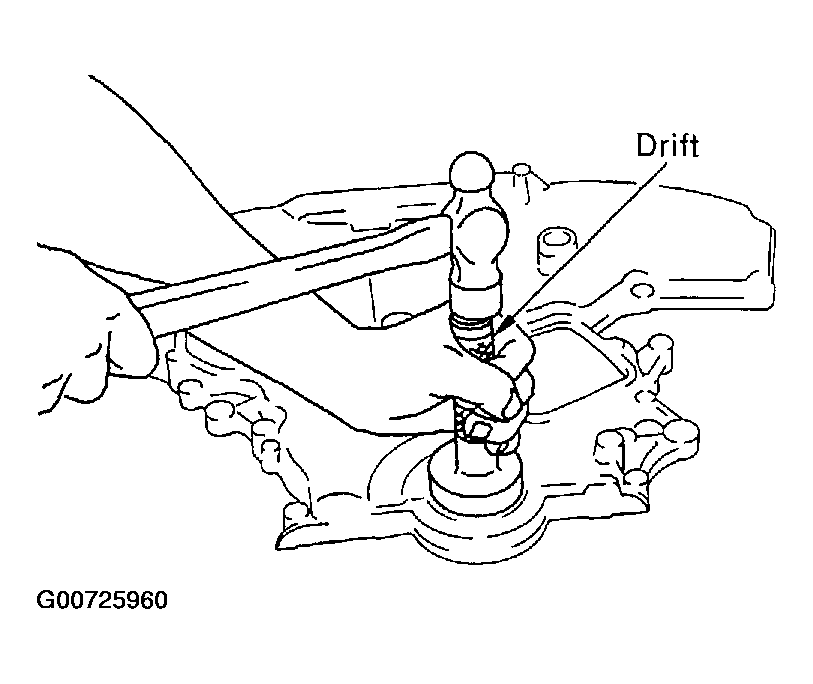

  Fig 20: Installing Front Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.

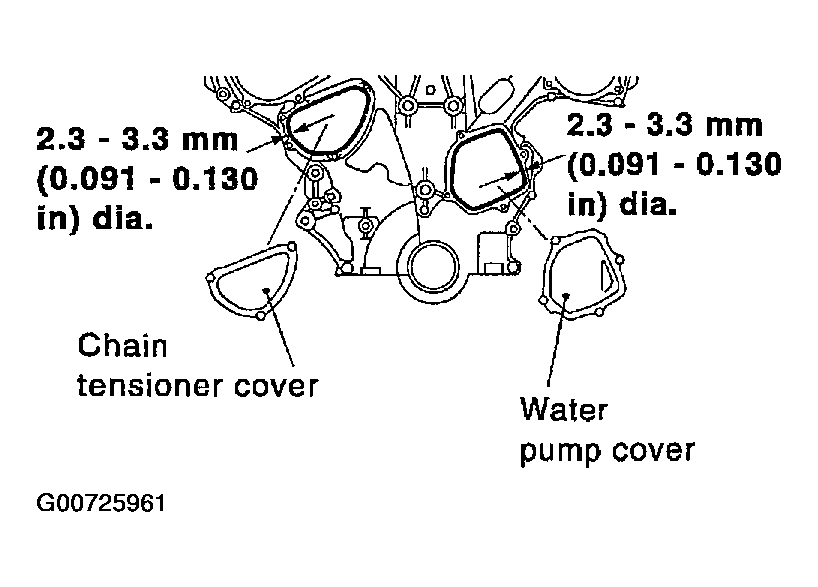

Install water pump cover and chain tensioner cover to front timing chain case.
- Apply liquid gasket to front timing chain case front side as shown with tube presser [SST: WS39930000 (-)].
  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

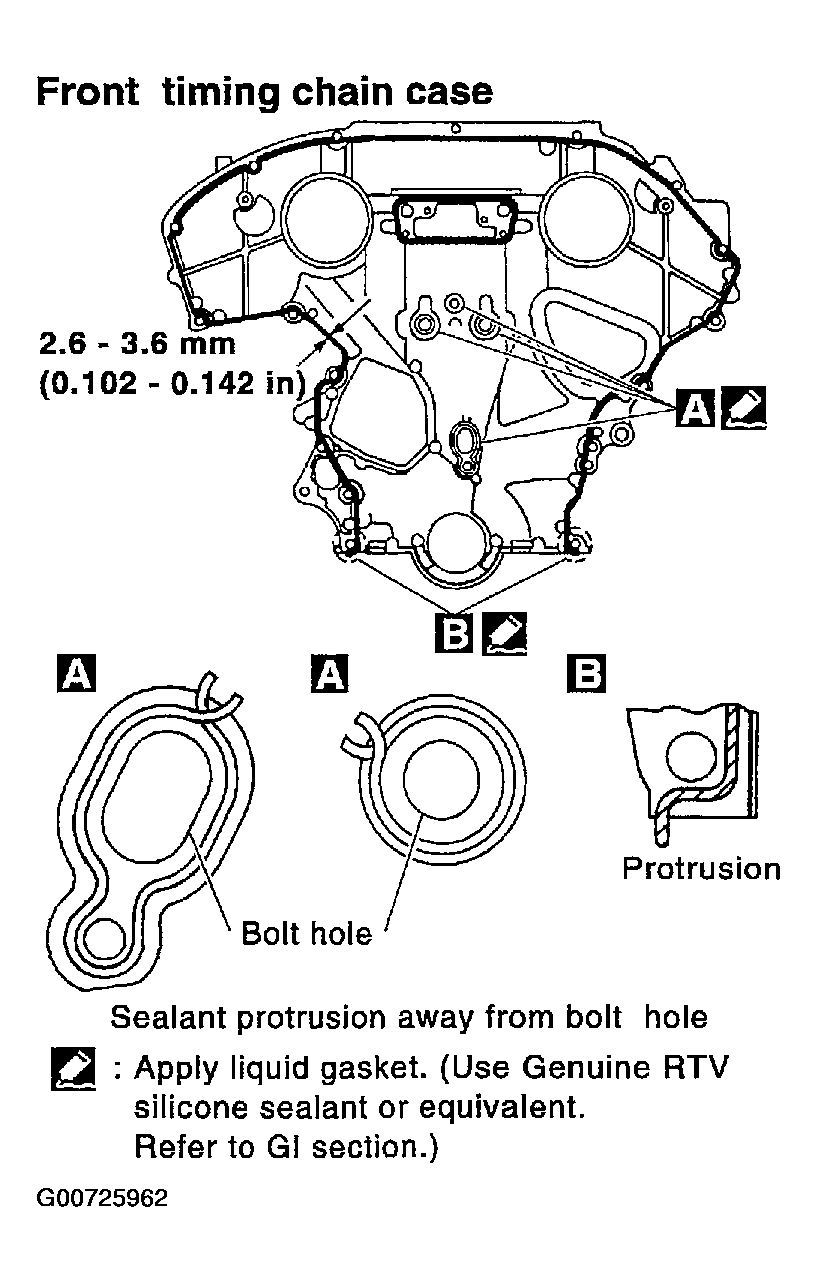

  Fig 21: Identifying Areas To Apply Liquid Gasket For Front Covers
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install front timing chain case as follows:
1. Apply liquid gasket to front timing chain case back side as shown with tube presser [SST: WS39930000 (-)].

  Fig 22: Applying Liquid Gasket To Back Side Of Front Timing Chain Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
2. Install dowel pin on rear timing chain case into dowel pin hole on front timing chain case.
3. Tighten bolts to the specified torque in order shown in the figure.

  Fig 23: Identifiying Front Timing Chain Case Bolt Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. 8 mm (0.31 in) dia. bolts : 1, 2:
  2. 28.4 N.m (2.9 kg-m, 21 ft-lb)
  3. 6 mm (0.24 in) dia. bolts : Except the above:
  4. 12.7 N.m (1.3 kg-m, 9 ft-lb)
4. After tightening, retighten them to specified torque in numerical order shown in Fig 23.

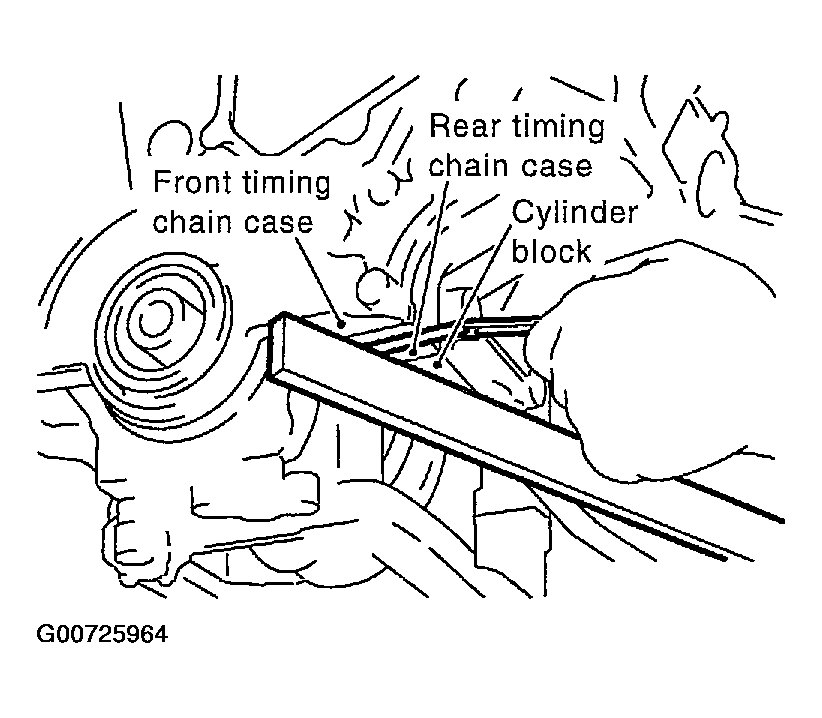

After installing front timing chain case, check the surface height difference between the following parts on the oil pan mounting surface.

Fig 24: Checking Surface Height Differences Between Front & Rear Timing Chain Case
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard
  1. Front timing chain case to rear timing chain case: -0.14 to 0.14 mm (-0.005 to 0.0055 in)
- If not within specification, repeat the installation procedure.
Install right and left intake valve timing control covers as follows:
1. Install seal rings in shaft grooves.

  Fig 25: Installing Seal Rings In Shaft Grooves
  Courtesy of NISSAN MOTOR CO., U.S.A.

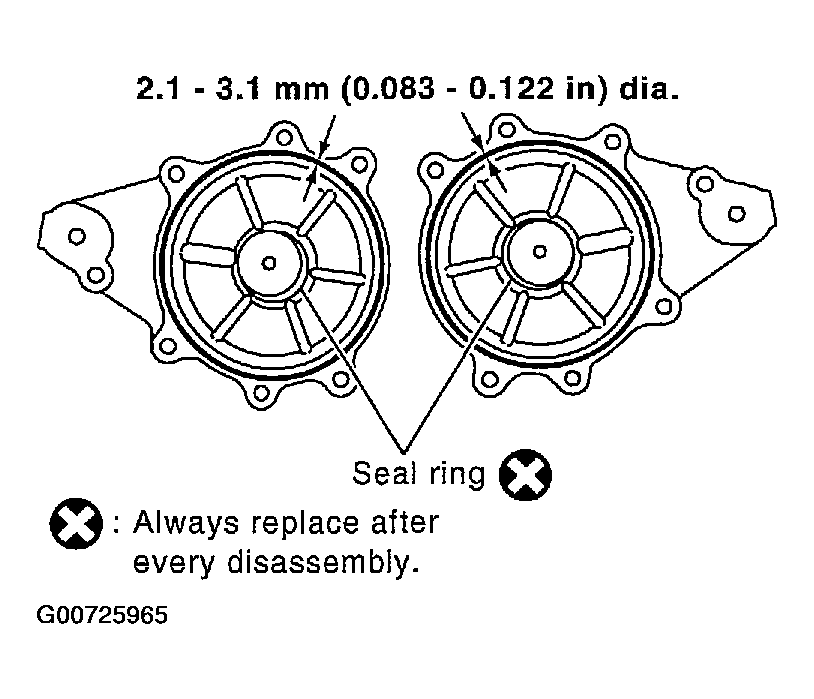

2. Apply liquid gasket to intake valve timing control covers with tube presser [SST: WS39930000 (-)].
  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
3. Install collared O-ring in front cover engine oil hole (left and right sides).

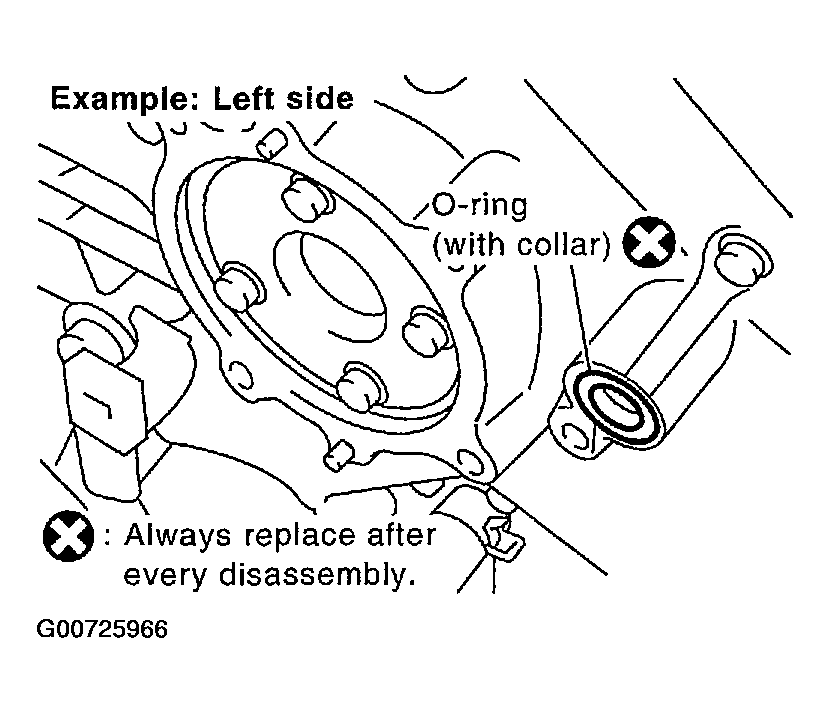

  Fig 26: Installing O-Rings On Rear Timing Chain Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Being careful not to move seal ring from the installation groove, align dowel pins on chain case with the holes to install intake valve timing control covers.

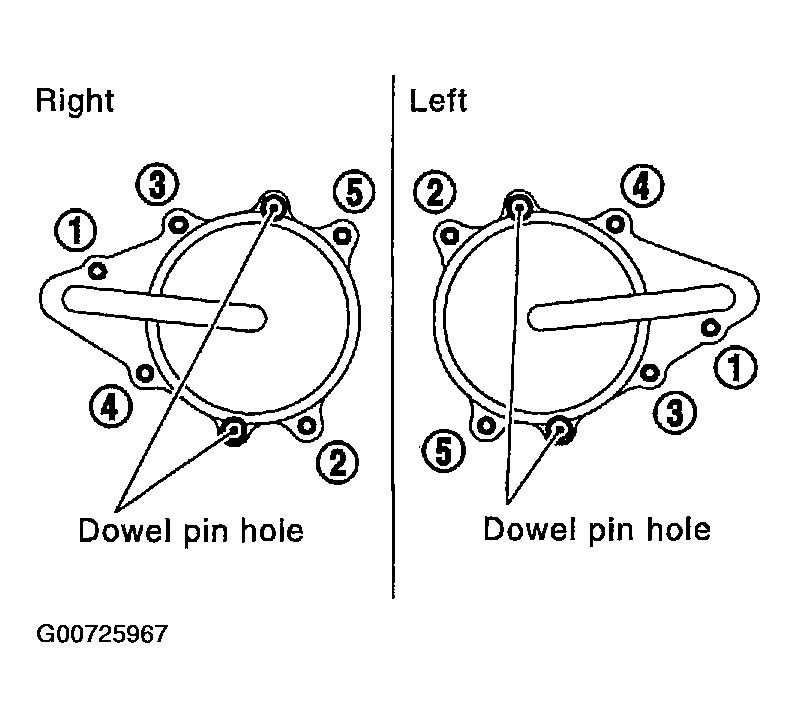

5. Tighten bolts in the numerical order as shown.

  Fig 27: Identifying Timing Control Cover Bolt Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install crankshaft pulley as follows:
1. Fix crankshaft using ring gear stopper [SST: KV10117700 (J44716)].
2. Install crankshaft pulley, taking care not to damage front oil seal.
  - When press-fitting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
3. Tighten bolt.
  1. 44.1 N.m (4.5 kg-m, 33 ft-lb)

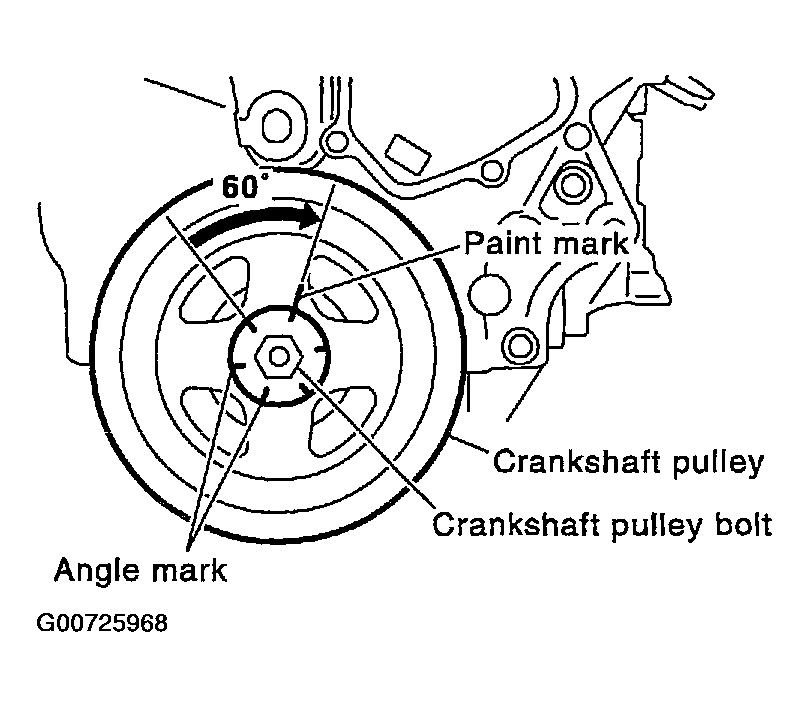

4. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt. Then, further retighten bolt by "60" degrees (equivalent to one graduation).

  Fig 28: Applying Paint Mark To Crankshaft Pulley
  Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
For the following operations, perform steps in the reverse order of removal.
NOTE: If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a pounding noise during and just after engine start. However, this does not indicate an unusualness. Noise will stop after hydraulic pressure rises.
