Intake Manifold

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

If stud bolts were removed, install them and tighten to the specified torque.
1. 10.8 N.m (1.1 kg-m, 8 ft-lb)
Tighten all mounting bolts and nuts to the specified torque in two or more steps in numerical order shown in the figure.

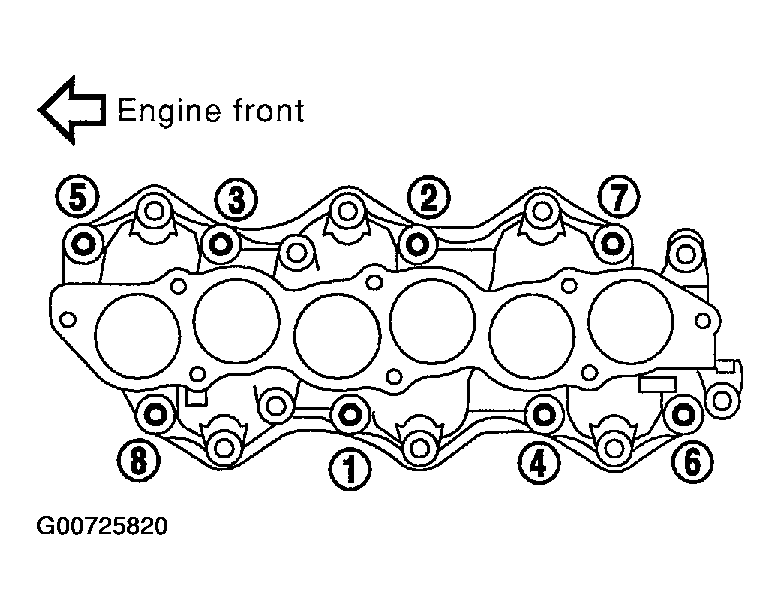

Fig 1: Intake Manifold Bolt Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
1. 1st step:
2. 7.4 N.m (0.75 kg-m, 5 ft-lb)
3. 2nd step and after:
4. 29.0 N.m (3.0 kg-m, 21 ft-lb)
