Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Install timing chain and related parts. Refer to TIMING CHAIN .
Hammer dowel pins (left and left) into front timing chain case up to a point close to taper in order to shorten protrusion length.

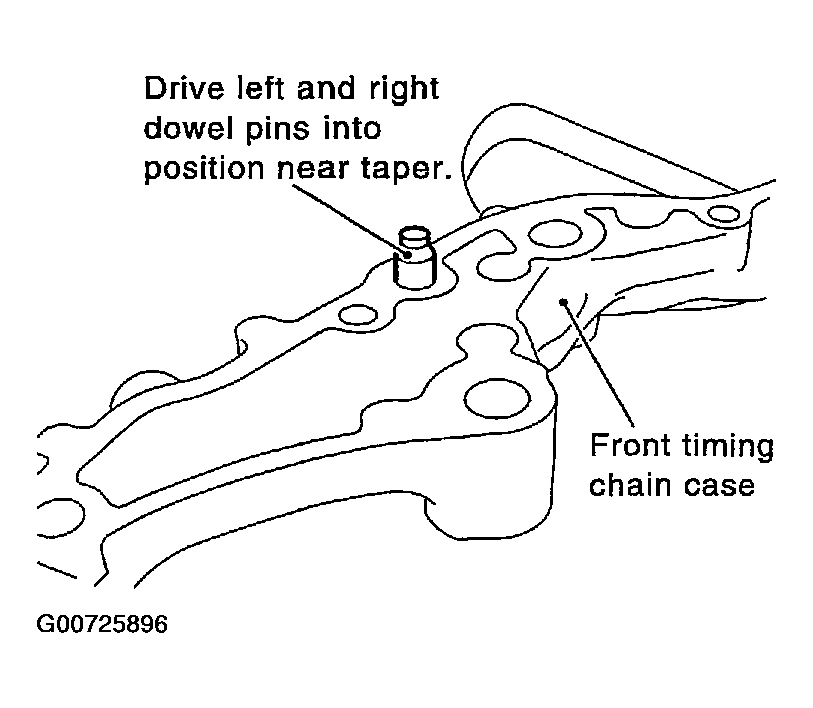

Fig 1: Hammering Dowel Pins Into Front Timing Chain Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front oil seal on front timing chain case.
- Apply new engine oil to the oil seal edges.
- Install it so that each seal lip is oriented as shown in the figure.

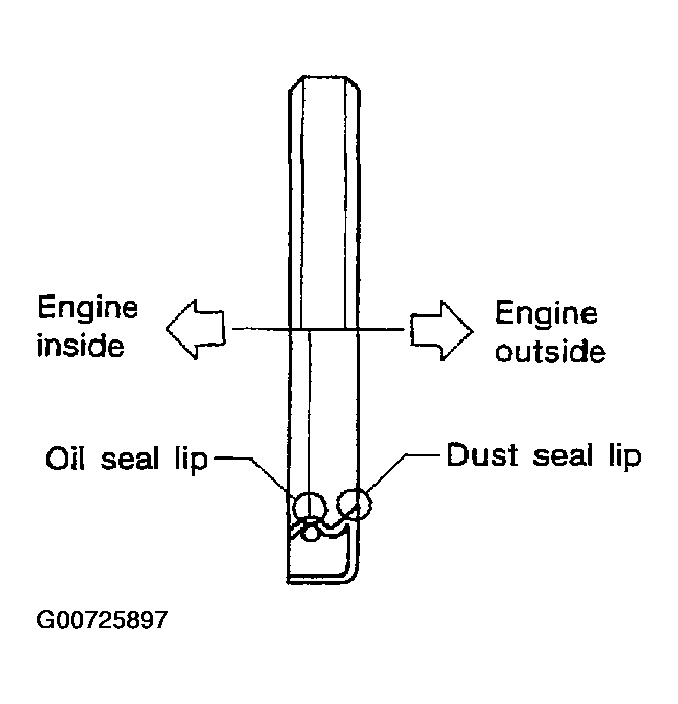

  Fig 2: Identifying Front Oil Seal Installation Direction
  Courtesy of NISSAN MOTOR CO., U.S.A.

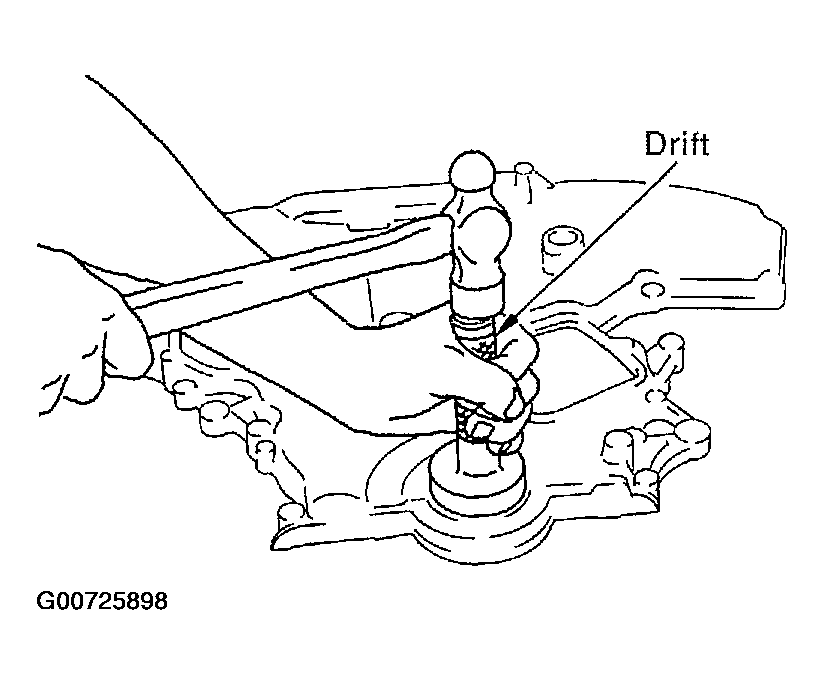

- Using suitable drift, press-fit oil seal until it becomes flush with front timing chain case end face.
- Make sure the garter spring is in position and seal lip is not inverted.

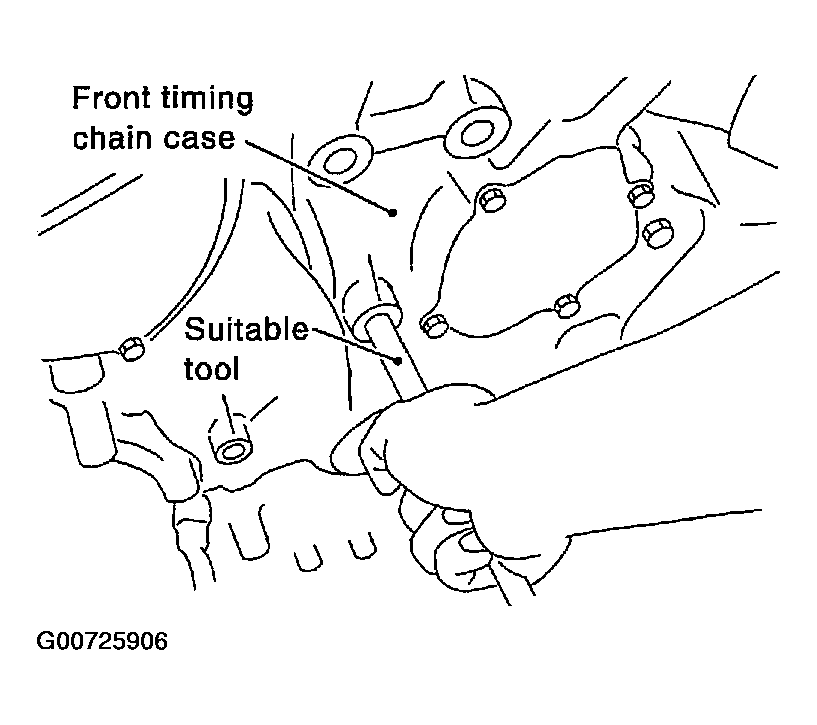

  Fig 3: Installing Front Oil Seal Into Front Timing Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install water pump cover and chain tensioner cover to front timing chain case.

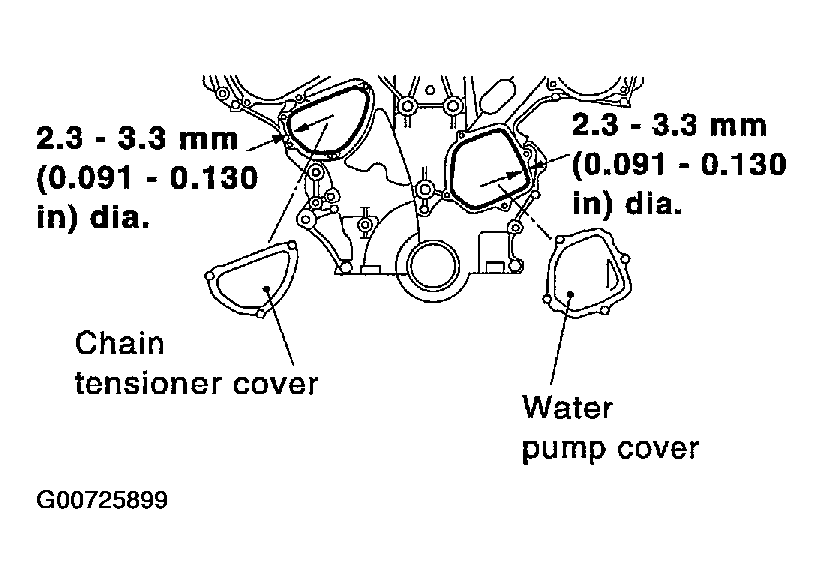

- Apply liquid gasket to front timing chain case front side as shown with tube presser [SST: WS39930000 (-)].
  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

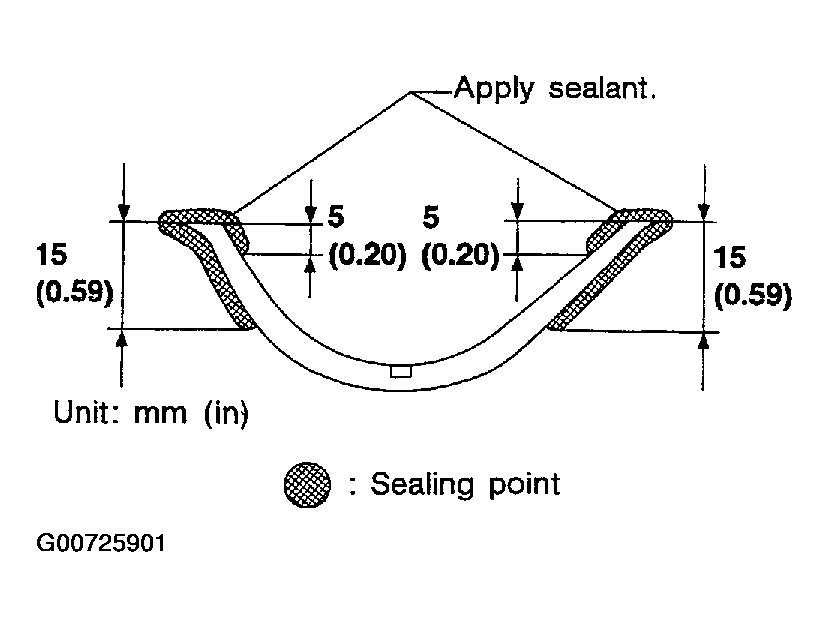

Fig 4: Installing Covers To Front Timing Chain Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front timing chain case as follows:

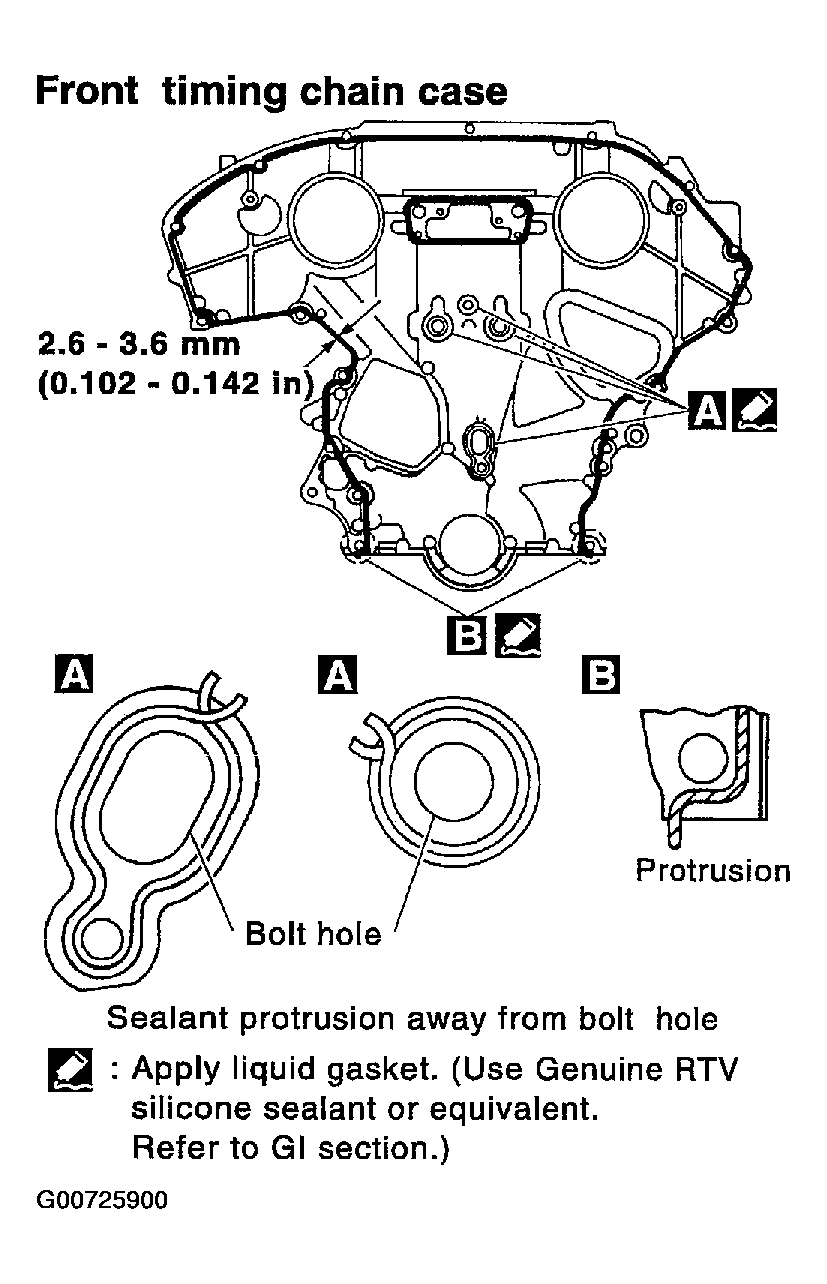

1. Apply liquid gasket to front timing chain case back side as shown with tube presser [SST: WS39930000 (-)].

  Fig 5: Applying Liquid Gasket To Front Timing Chain Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
2. Install oil pan gasket front side.
  - Apply liquid gasket to oil pan gasket as shown with tube presser [SST: WS39930000 (-)].

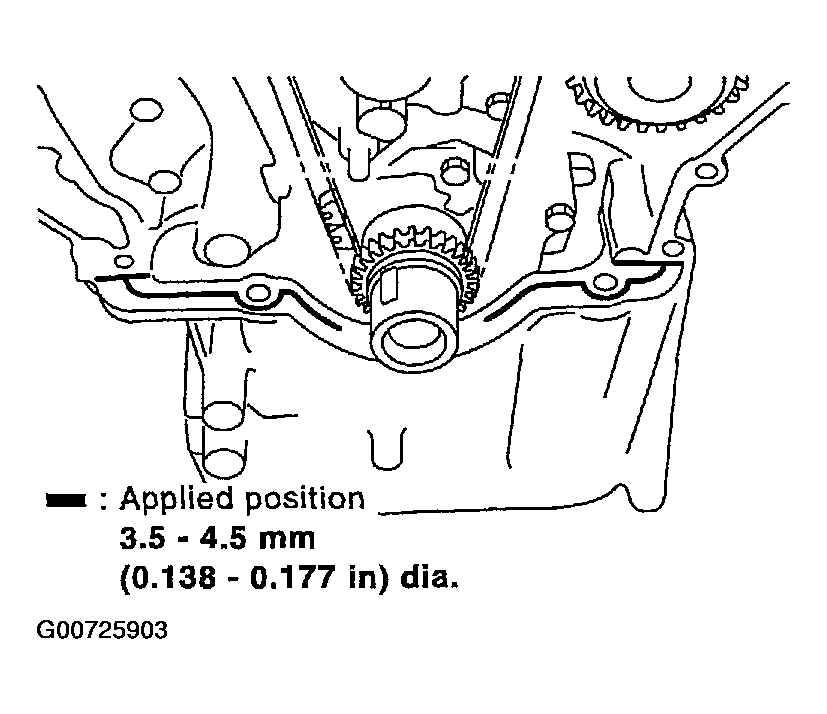

    Fig 6: Applying Sealant To Oil Pan Gasket
    Courtesy of NISSAN MOTOR CO., U.S.A.

    Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
  - Align notch of front timing chain case with protrusion of oil pan gasket.

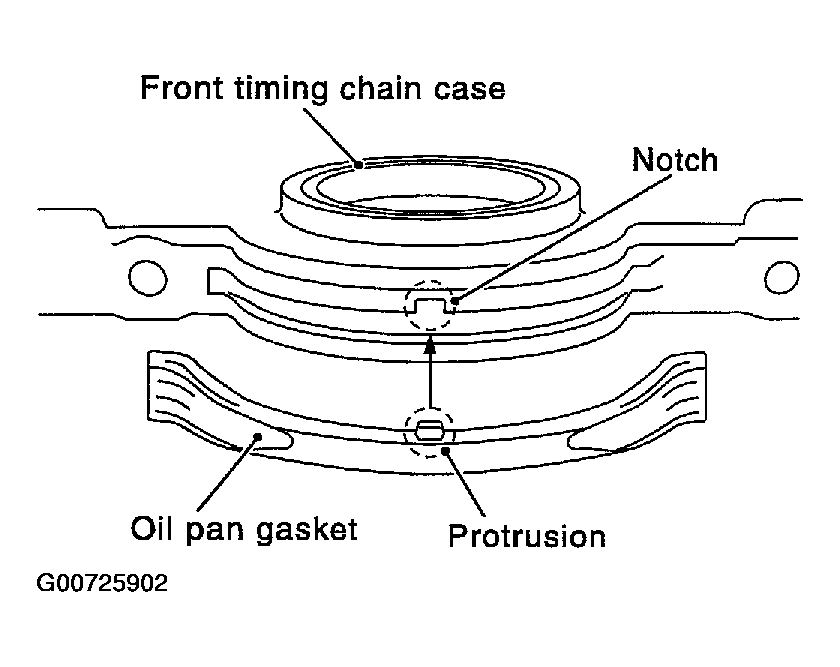

    Fig 7: Aligning Oil Pan Gasket With Timing Chain Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Apply liquid gasket to top surface of oil pan (upper) as shown in figure with tube presser [SST: WS39930000 (-)].

    Fig 8: Applying Liquid Gasket To Top Surface Of Upper Oil Pan
    Courtesy of NISSAN MOTOR CO., U.S.A.

    Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
3. Install new O-rings on rear timing chain case.

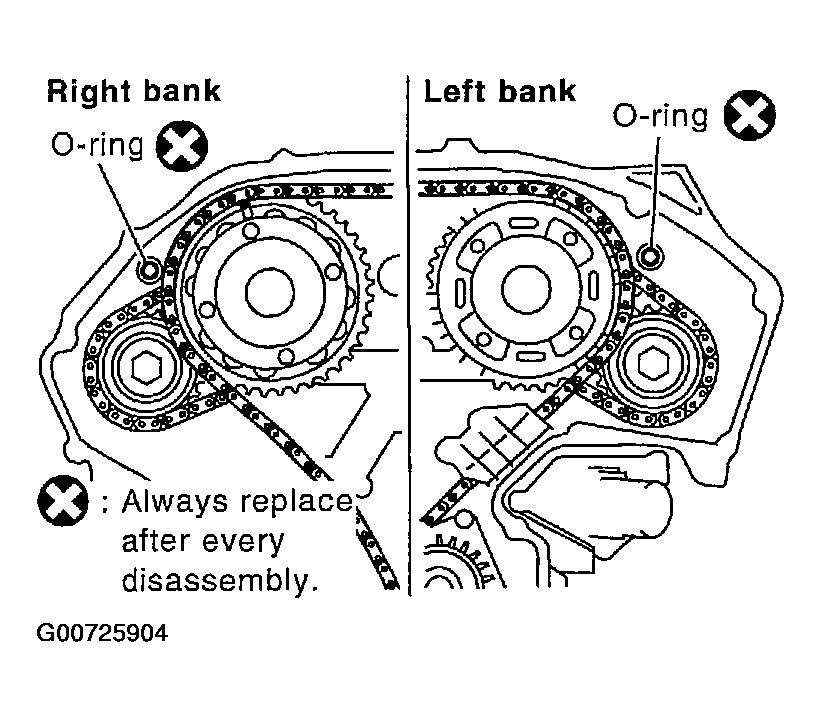

  Fig 9: Installing New O-Rings Into Rear Timing Chain Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Assemble front timing chain case as follows.

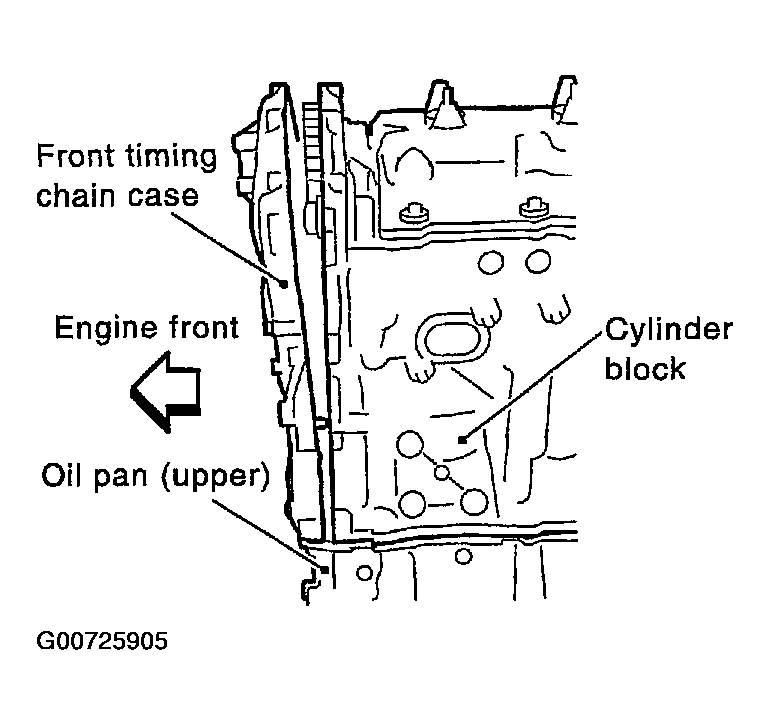

  1. Fit lower end of front timing chain case tightly onto top face of oil pan (upper). From the fitting point, make entire front timing chain case contact rear timing chain case completely.
    CAUTION: Be careful that oil pan gasket is in place.

    Fig 10: Installing Front Timing Chain Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. While pressing front timing chain case from its front and top as shown in figure, install bolts and temporarily tighten them.
    For bolt length and positions, refer to the step 6.
  3. Hammer dowel pin until the outer end becomes flush with surface.

    Fig 11: Ensuring Front Timing Chain Case Installs Flush With Surface
    Courtesy of NISSAN MOTOR CO., U.S.A.

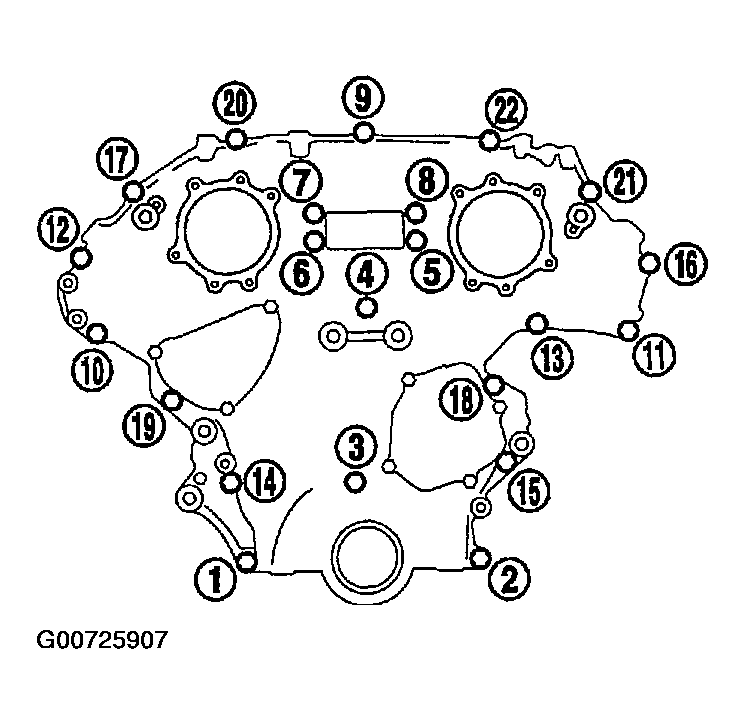

Tighten bolts to the specified torque in order shown in the figure.

Fig 12: Identifying Front Timing Chain Case Bolt Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
1. 8 mm (0.31 in) dia. bolts : 1, 2
2. 28.4 N.m (2.9 kg-m, 21 ft-lb)
3. 6 mm (0.24 in) dia. bolts : Except the above
4. 12.7 N.m (1.3 kg-m, 9 ft-lb)
- After tightening, retighten them to specified torque in numerical order shown in Fig 12.

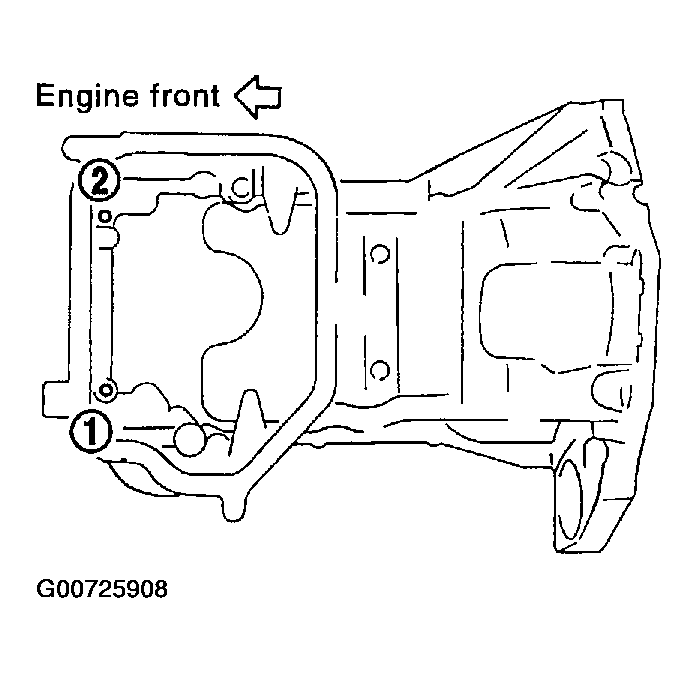

Install two mounting bolts in front of oil pan (upper) in numerical order shown in figure.

Fig 13: Installing Upper Oil Pan-To-Timing Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
1. 17.2 N.m (1.8 kg-m, 13 ft-lb)
Install oil pan (lower). Refer to OIL PAN AND OIL STRAINER .
Install right and left intake valve timing control covers as follows:
1. Install seal rings in shaft grooves.
2. Apply liquid gasket to intake valve timing control covers with tube presser [SST: WS39930000 (-)].
  Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

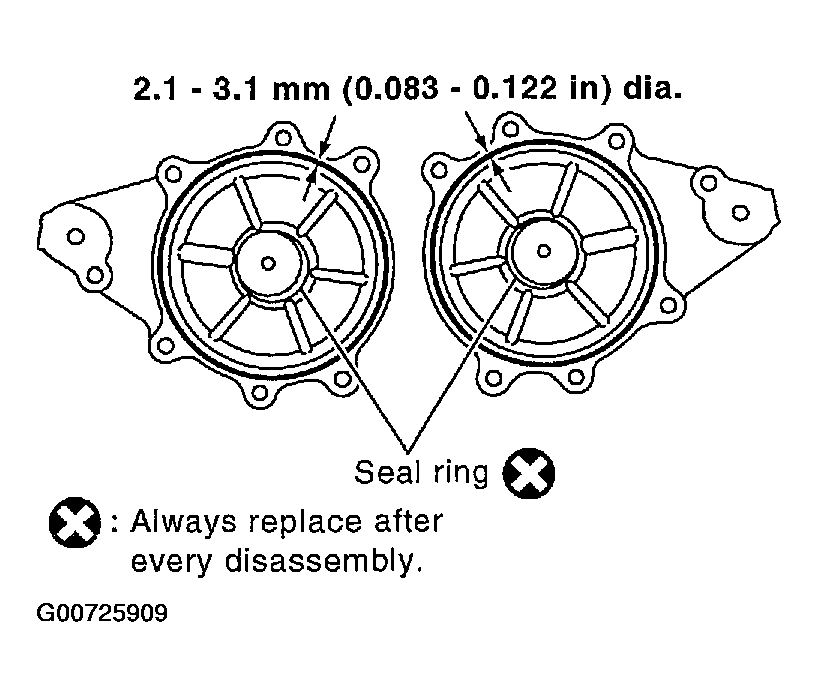

  Fig 14: Installing Sealing Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.

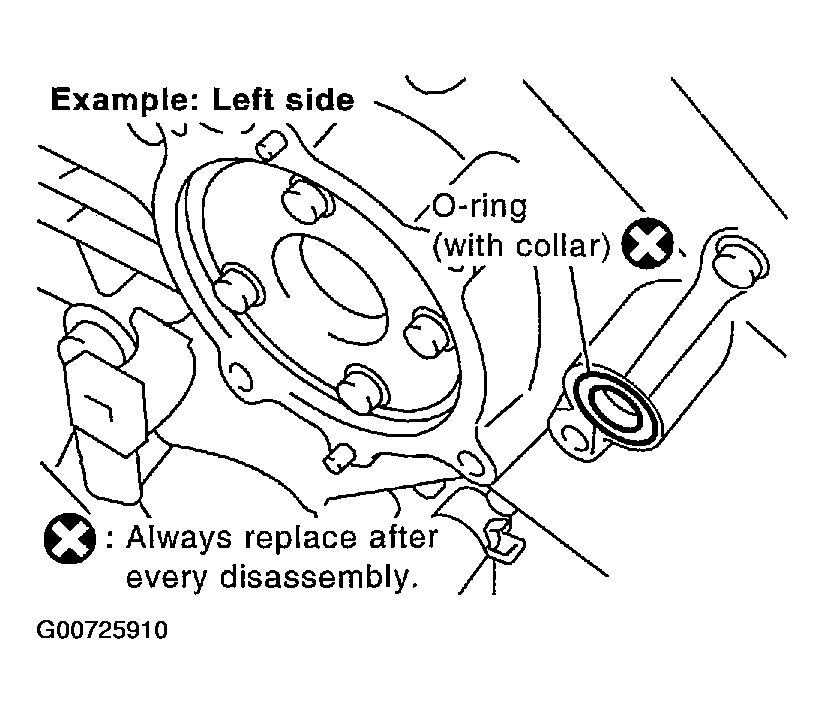

3. Install collared O-ring in front timing chain case oil hole (left and right sides).

  Fig 15: Installing Collared O-Ring In Front Timing Chain Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

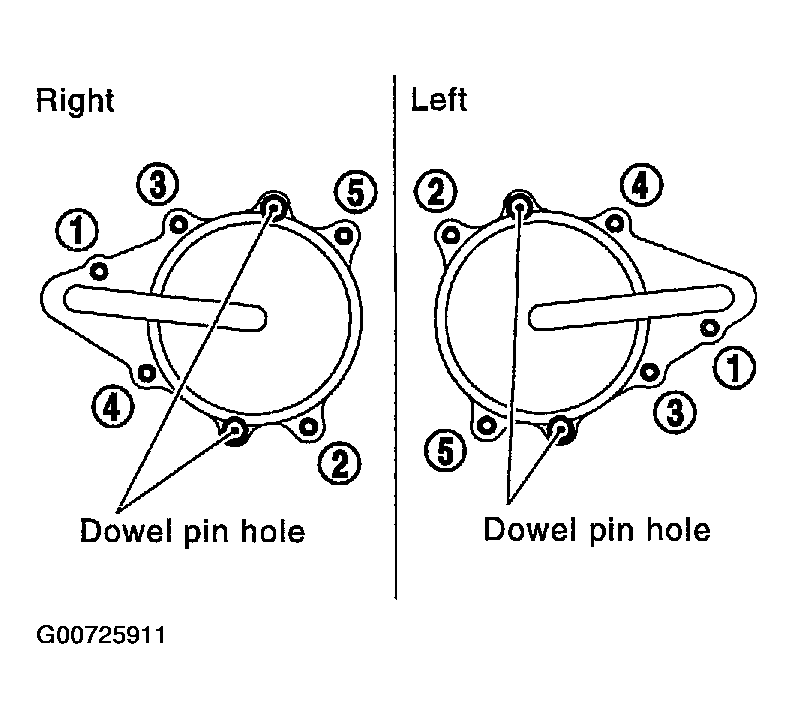

4. Being careful not to move seal ring from the installation groove, align dowel pins on chain case with the holes to install intake valve timing control covers.
5. Tighten bolts in the numerical order as shown.

  Fig 16: Tightening Intake Valve Timing Control Cover Bolts In Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. 11.3 N.m (1.2 kg-m, 8 ft-lb)
Install crankshaft pulley as follows:
1. Fix crankshaft using ring gear stopper [SST: KV10117700 (J44716)].
2. Install crankshaft pulley, taking care not to damage front oil seal.
  - When press-fitting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
3. Tighten bolt.
  1. 44.1 N.m (4.5 kg-m, 33 ft-lb)

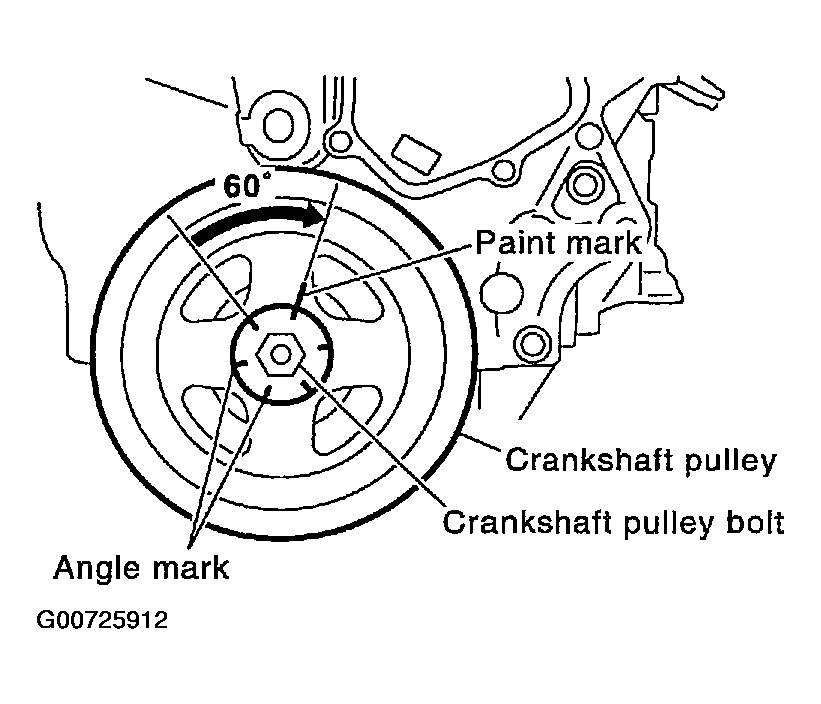

4. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt. Then, further retighten bolt by "60" degrees (equivalent to one graduation)].

  Fig 17: Painting 60 Degree Mark On Crankshaft Pulley
  Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
For the following operations, perform steps in the reverse order of removal.
NOTE: If hydraulic pressure inside chain tensioner drops after removal/installation, slack in the guide may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after hydraulic pressure rises.
