Removal Work

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Use a manual lift table caddy (commercial service tool) or equivalently rigid tool such as a transmission jack. Securely support bottom of suspension member and transmission.

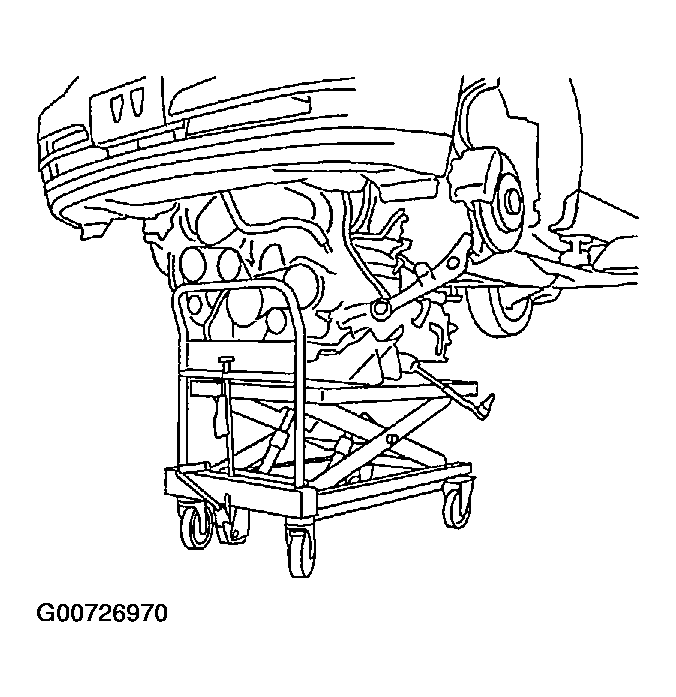

Fig 1: Removing Engine/Transmission Assembly From Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Put a piece of wood or something similar as the supporting surface, secure a completely stable condition.
Remove rear member mounting bolt.
Remove suspension member mounting bolt and nut. Refer to REMOVAL & INSTALLATION .
Carefully lower jack to remove engine, transmission, and suspension member assembly. When performing work, observe the following:
CAUTION:
- Confirm there is no interference with vehicle.
- Make sure all connection points have been disconnected.
- Keep in mind the center of vehicle gravity changes. If necessary, use jack(s) to support vehicle at rear jacking point(s) to prevent it from falling it off lift.
