Engine Room

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect heater hose from vehicle-side, and fit a plug onto hose end to prevent engine coolant leak.
  2. Disconnect grounding wire (between vehicle to left bank cylinder head).
  3. Disconnect battery positive cable at vehicle side and temporarily fasten it on engine.
  4. Disconnect engine room harness connectors shown in the figure.

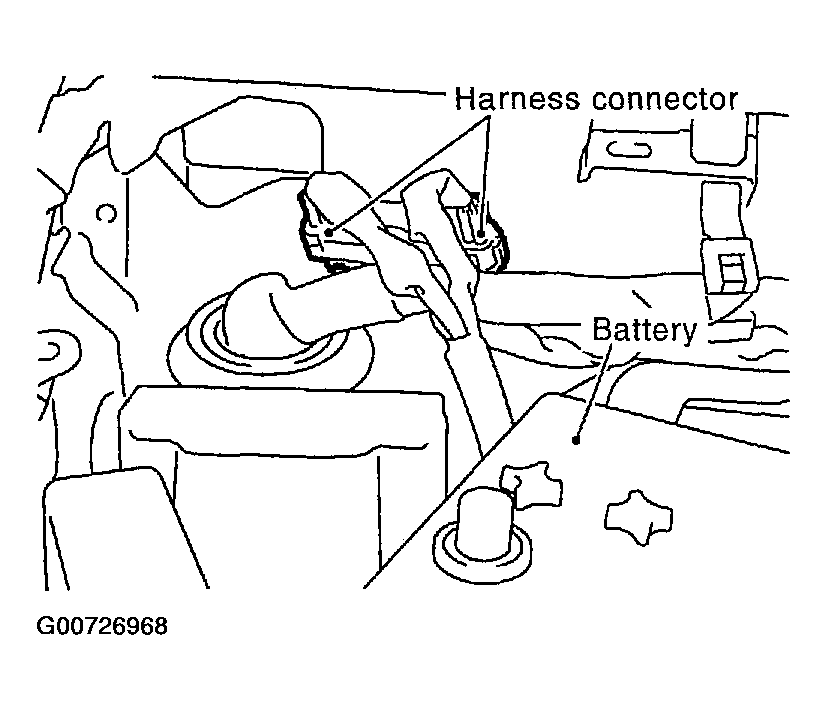

    Fig 1: Disconnecting Engine Room Harness Connectors
    G00726968Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope.
  6. Disconnect two body ground cables.
  7. Disconnect brake booster vacuum hose.
  8. Disconnect fuel feed hose and EVAP hose.
    CAUTION: Fit plugs onto disconnected hoses to prevent fuel leak.
  9. Remove power steering oil pump reservoir tank and piping from vehicle, and temporarily secure them on engine. Refer to POWER STEERING OIL PUMP .
    CAUTION: When temporarily securing, keep them upright to avoid a fluid leak.
