Separation Work

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install engine slingers into front of right bank cylinder head and rear ofleft bank cylinder head.

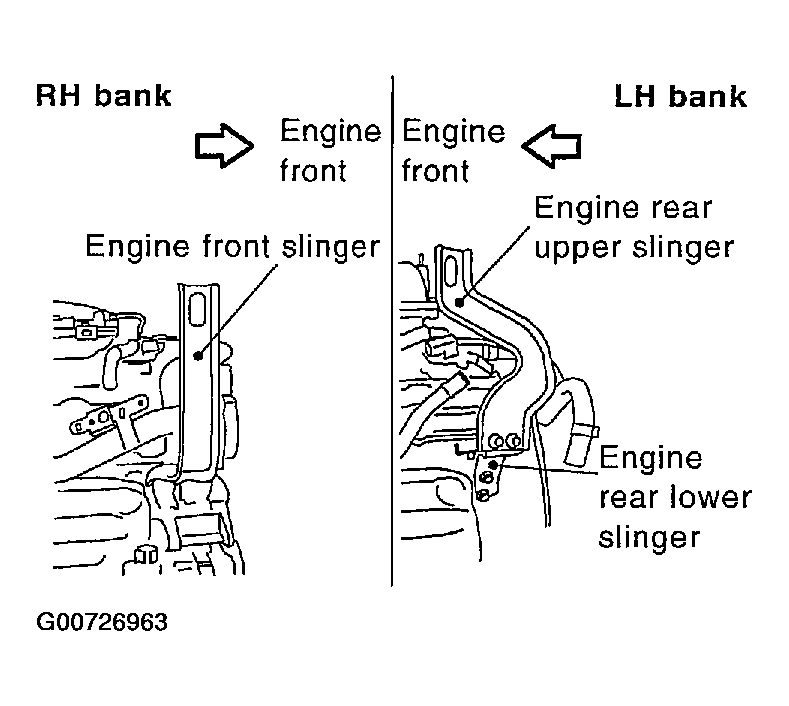

    Fig 1: Installing Engine Slingers
    G00726963Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Slinger bolts:
      1. 28.0 N.m (2.9 kg-m, 21 ft-lb)
  2. Remove power steering oil pump from engine side. Refer to POWER STEERING OIL PUMP .
  3. Remove engine mounting insulator under side nut with power tool.
  4. Lift with hoist and separate engine and transmission assembly from suspension member.
    CAUTION:
    • Before and during this lifting, always check if any harnesses are left connected.
    • Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
  5. Remove alternator. Refer to GENERATOR .
  6. Remove starter motor. Refer to REMOVAL & INSTALLATION .
  7. Separate engine from transmission assembly. Refer to REMOVAL & INSTALLATION .
  8. Remove engine mounting insulator and bracket with power tool.
