Piston Selection Table

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

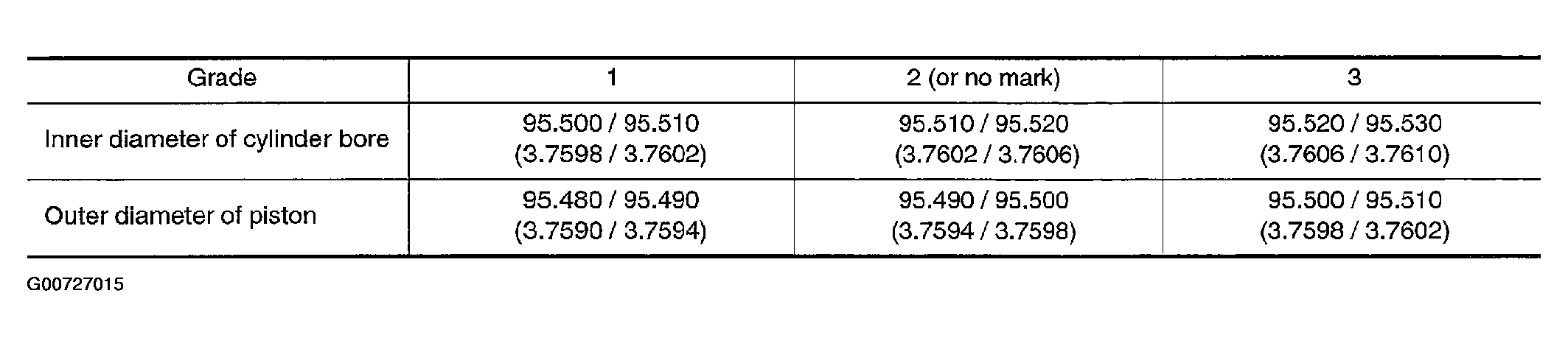

Fig 1: Selecting Piston Based On Size
G00727015Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Piston is available together with piston pin as an assembly.
  • Piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For service parts, no piston pin grades can be selected. (Only "0" grade is available.)
  • No second grade mark is available on piston.
