Relationship Between MIL, DTC, 1ST Trip DTC And Driving Patterns Except For Misfire (Exhaust Quality Deterioration) , Fuel Injection System: Notes

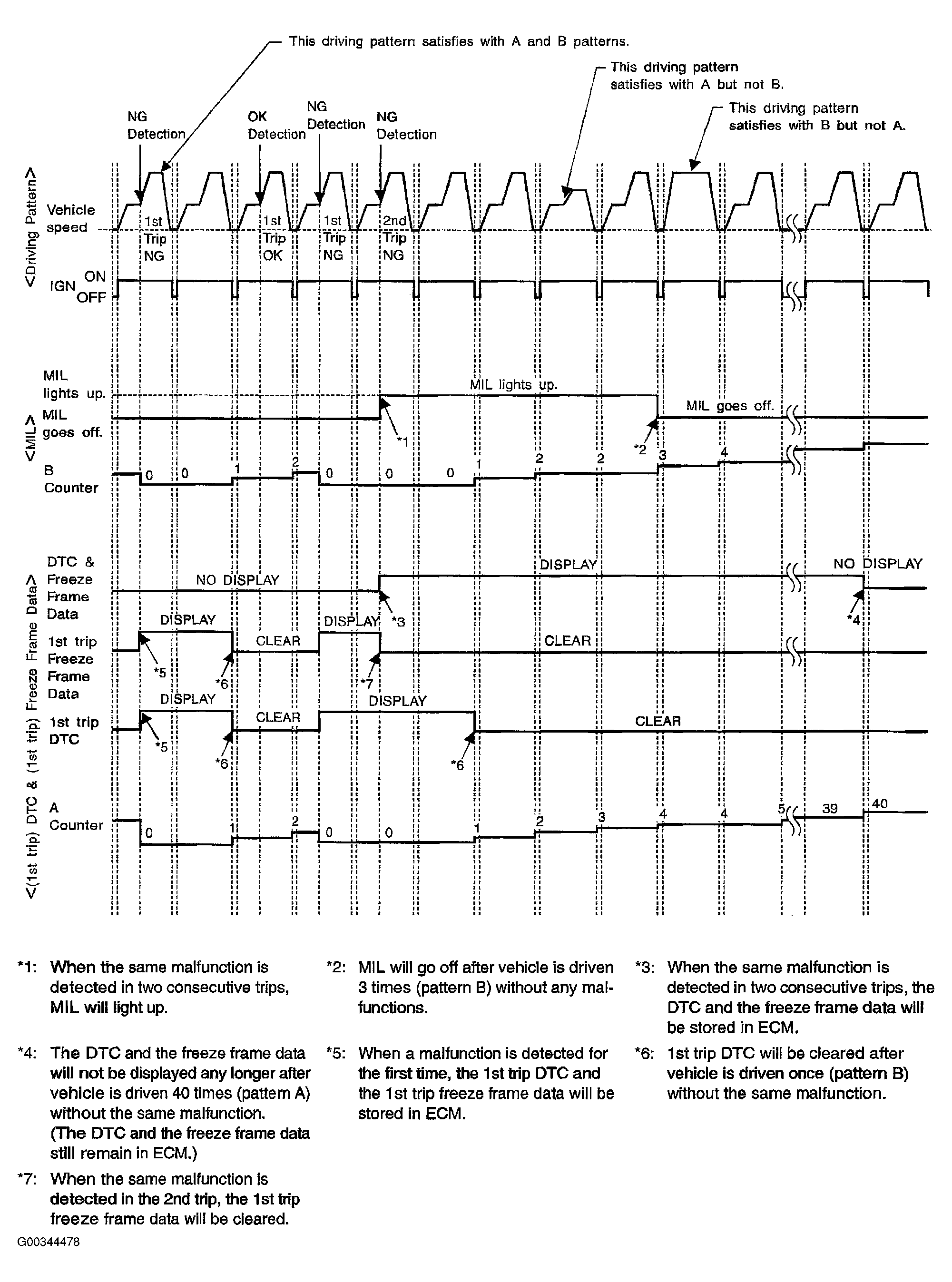

Fig 1: Graphing Driving Pattern, MIL & DTC Freeze Frame Types (Except Misfire)
G00344478Courtesy of NISSAN MOTOR CO., U.S.A.
