CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

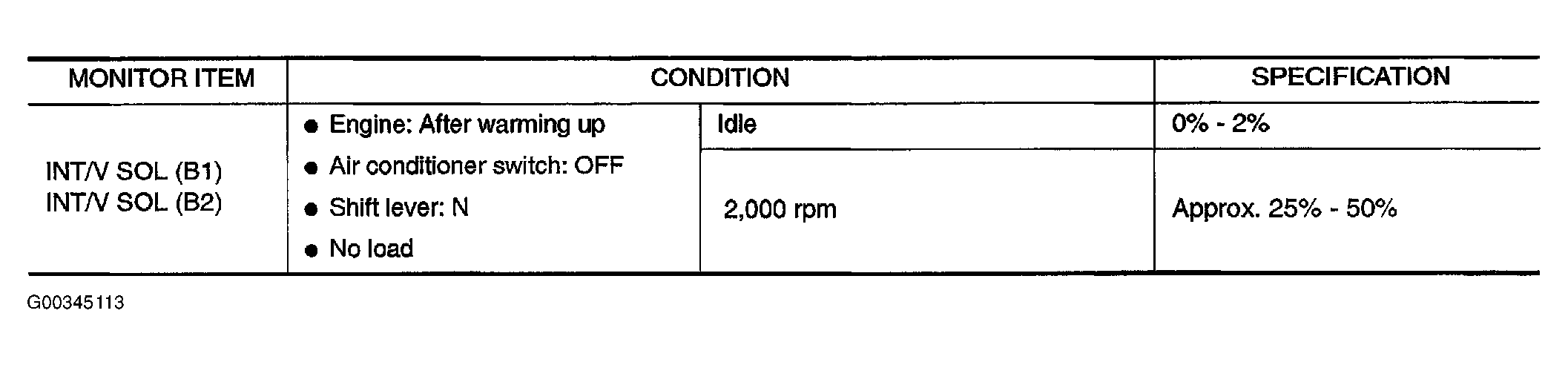

Fig 1: Identifying DTC P1111 & P1136 Monitored Items & Specifications (CONSULT-II )

Courtesy of NISSAN MOTOR CO., U.S.A.
