Fail-Safe Mode

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

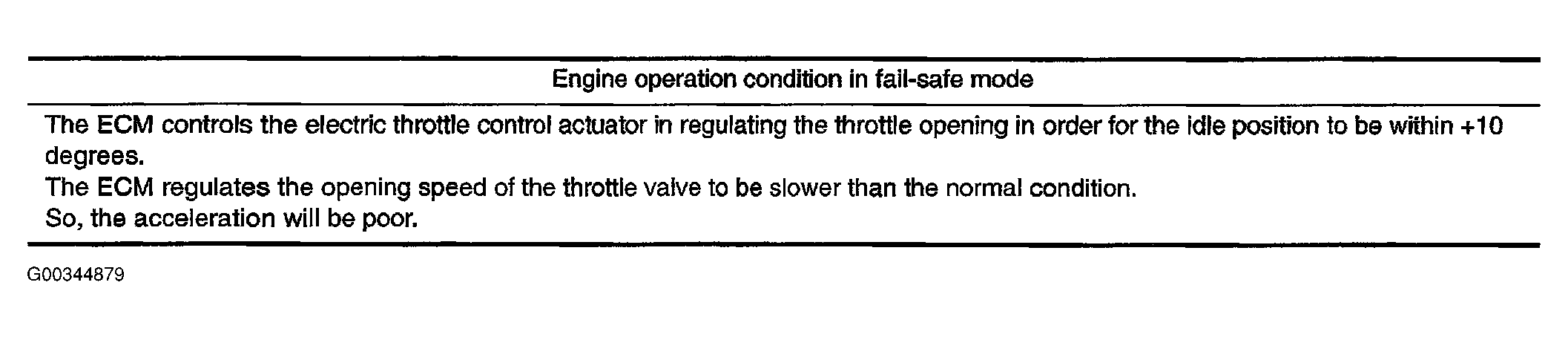

Fig 1: Describing Fail-Safe Conditions (DTC P0222 & P0223)

G00344879

Courtesy of NISSAN MOTOR CO., U.S.A.
