CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values. See Fig 1 .

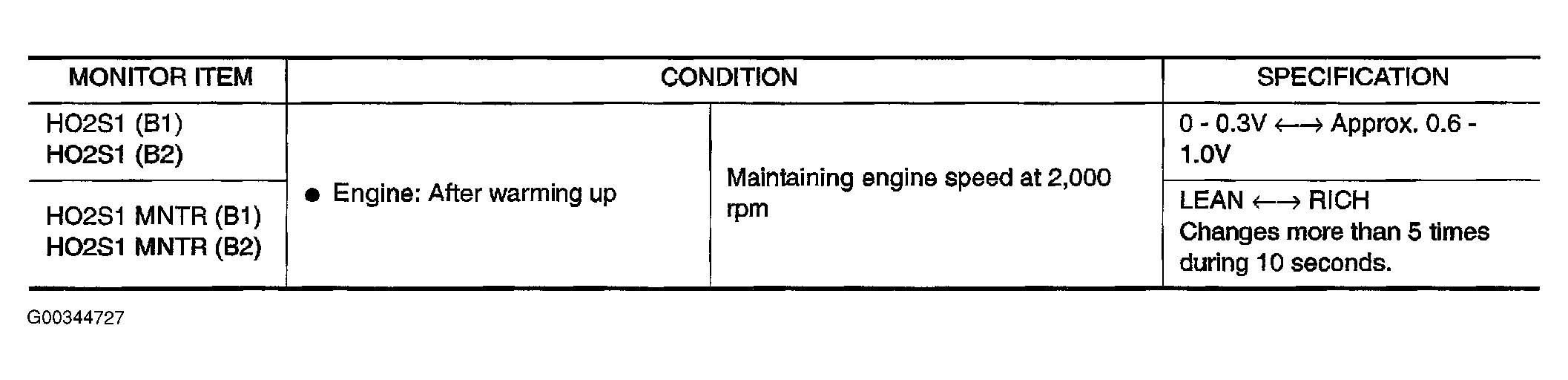

Fig 1: Identifying Heated Oxygen Sensor 1 Monitored Items & Specifications (CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.
