CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

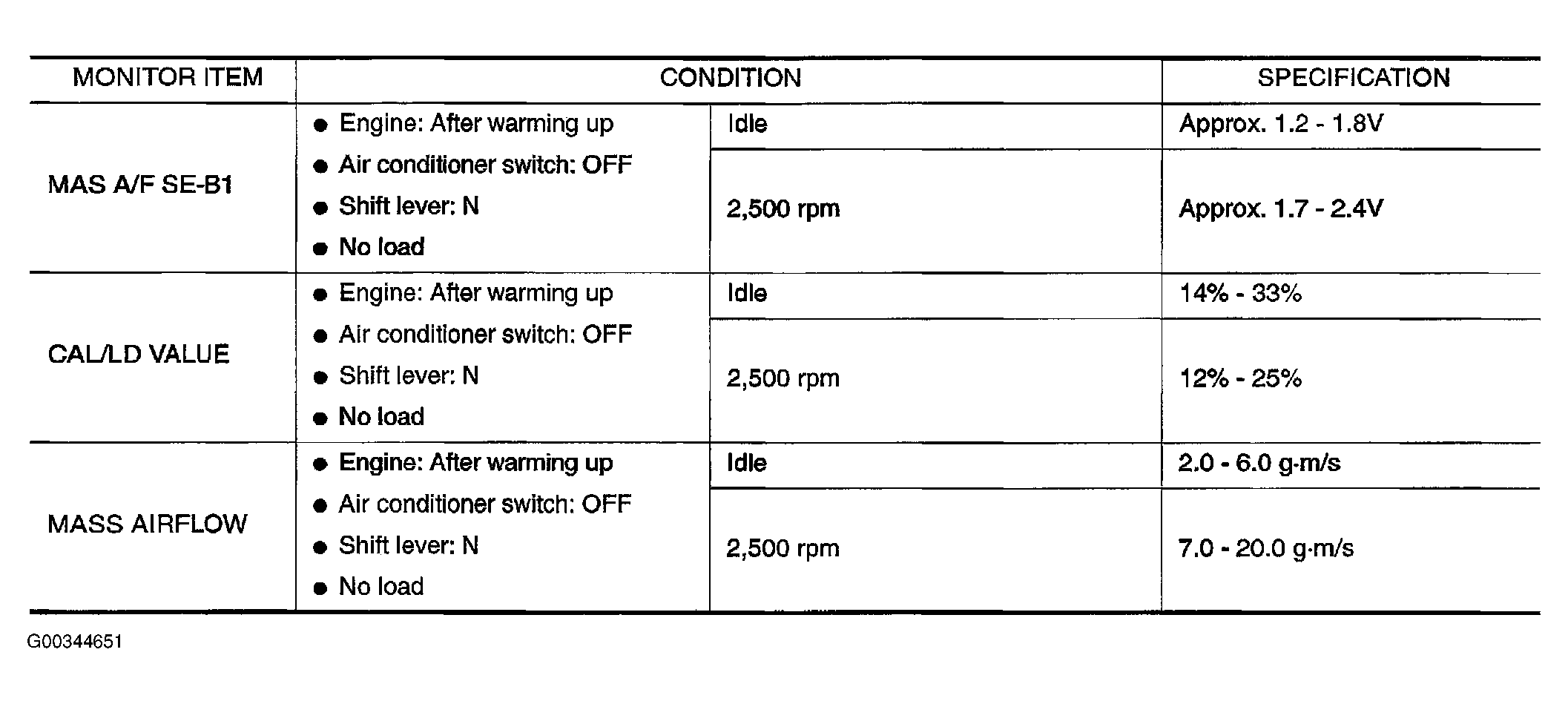

Fig 1: Identifying DTC P0102 & P0103 Monitored Items & Specifications On CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
