CONSULT-II Function: Notes

CONSULT-II performs the following functions communicating with the unified meter and A/C amp.

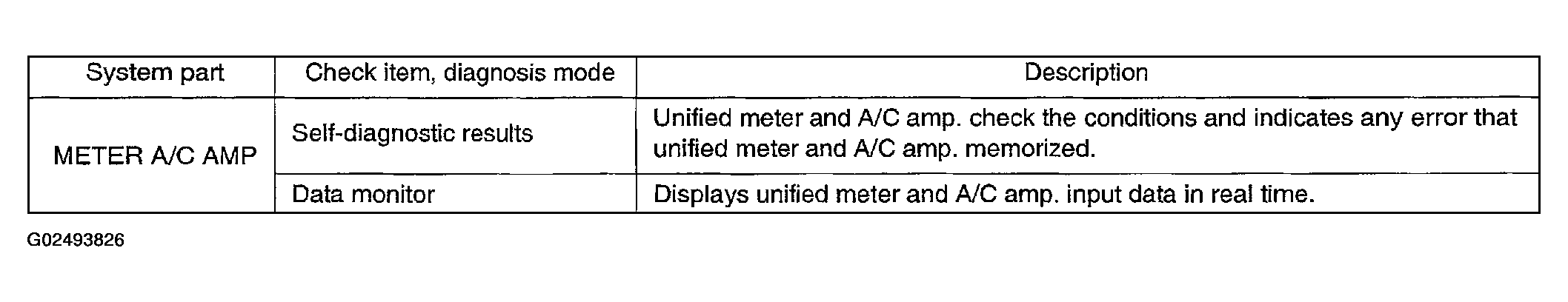

Fig 1: Describing Unified Meter & A/C Amp. Diagnosis
G02493826Courtesy of NISSAN MOTOR CO., U.S.A.
