Operation Procedure

  1. Touch DATA MONITOR on SELECT DIAG MODE screen.
  2. Touch either MAIN SIGNALS , CAN DIAG SUPPORT MNTR or SELECTION FROM MENU on the DATA MONITOR screen.
    DATA MONITOR SCREEN OPTIONS

    Main Signals Monitors Main Signals
    CAN DIAG SUPPORT MNTR Monitors CAN Diagnosis Support
    SELECTION FROM MENU Selects And Monitors Individual Signal
  3. When SELECTION FROM MENU is selected, touch individual items to be monitored. When MAIN SIGNALS is selected, main items will be monitored.
  4. Touch START.
  5. Touch RECORD while monitoring, then the status of the monitored item can be recorded. To stop recording, touch STOP.

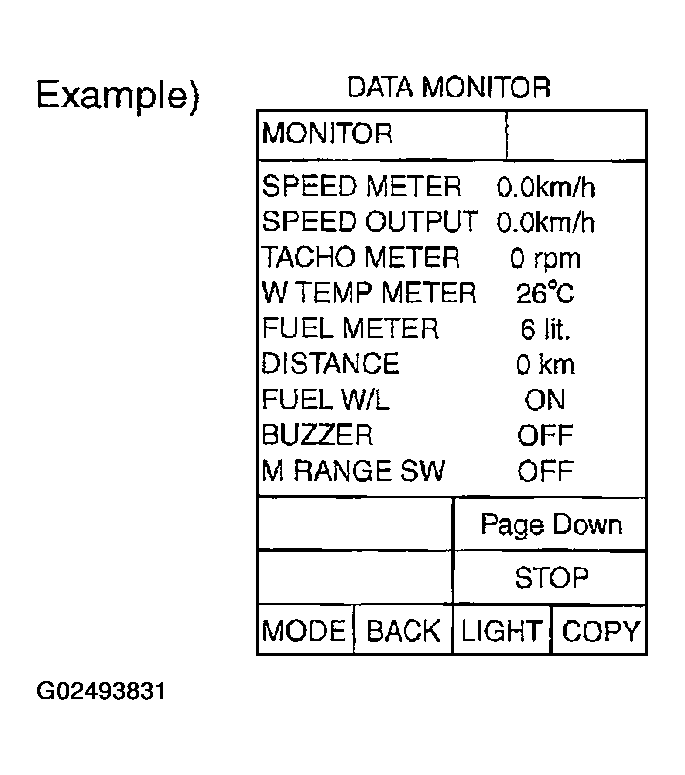

    Fig 1: Locating STOP On CONSULT-II Display
    G02493831Courtesy of NISSAN MOTOR CO., U.S.A.
