Terminals and Reference Value for Combination Meter

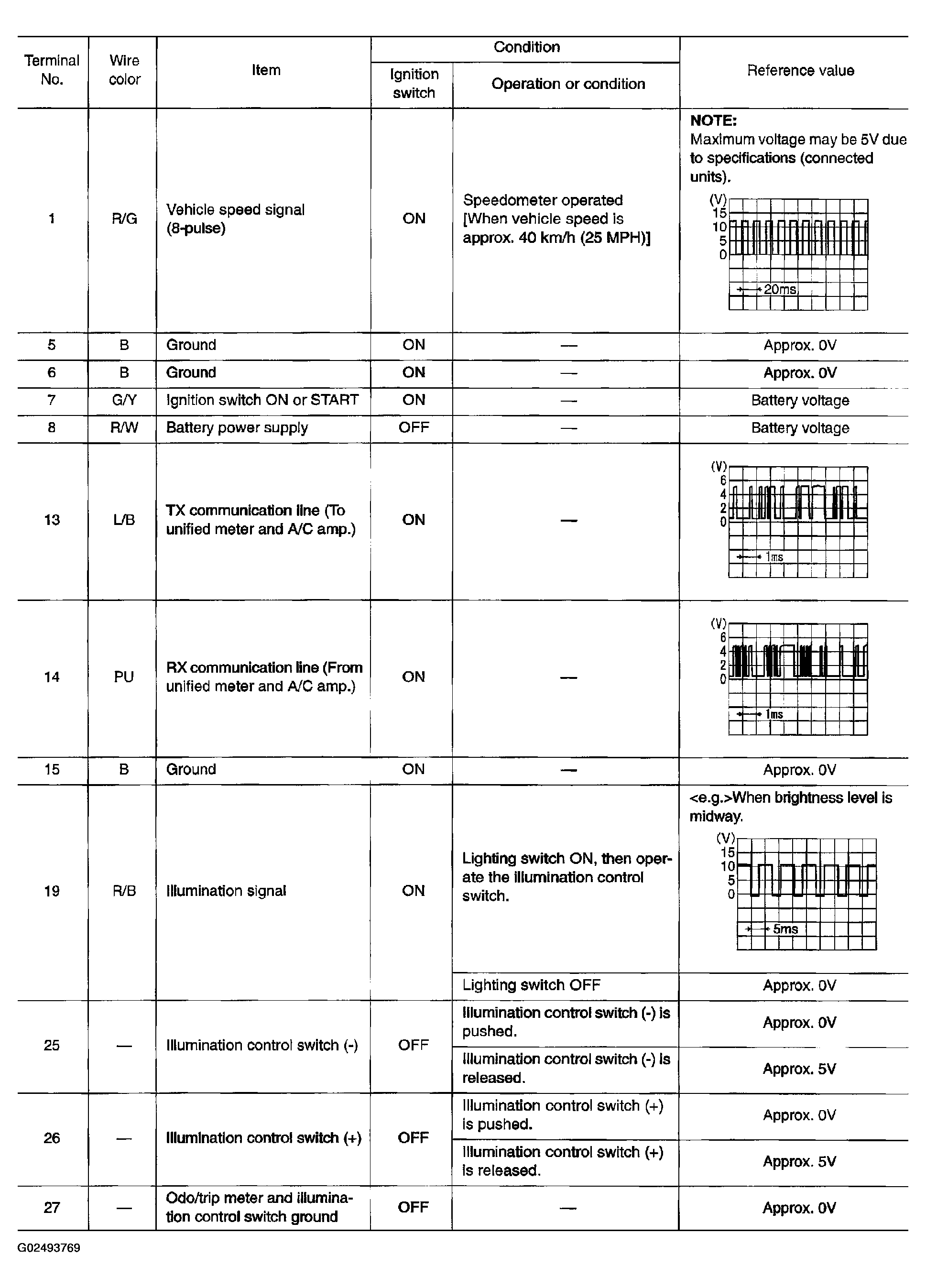

Fig 1: Combination Meter Terminal Specifications (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

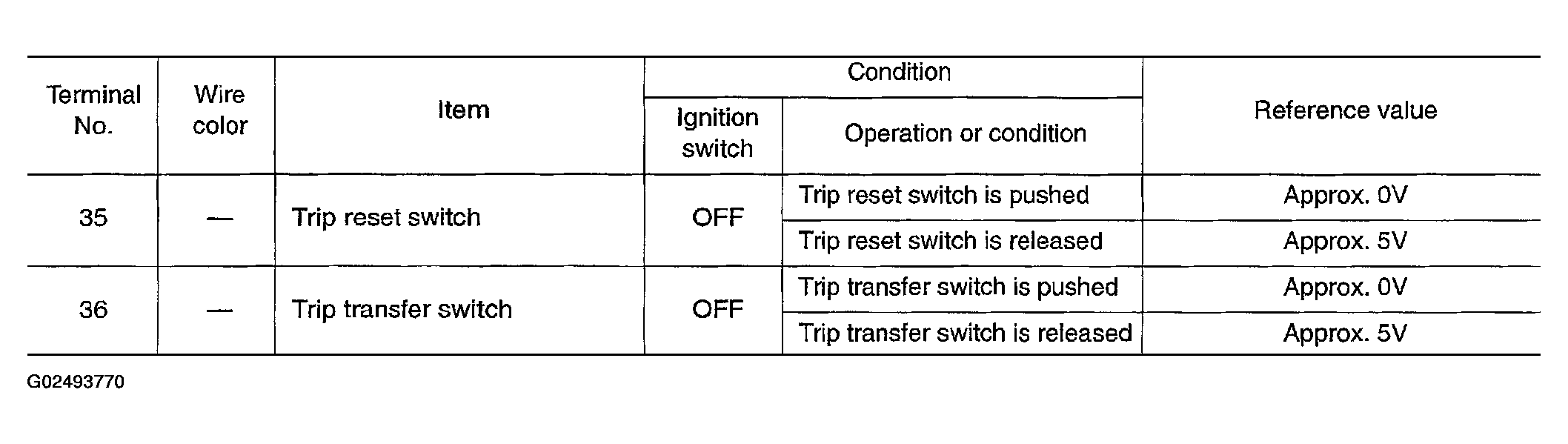

Fig 2: Combination Meter Terminal Specifications (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
