Symptom Chart 1
Symptom Chart 1

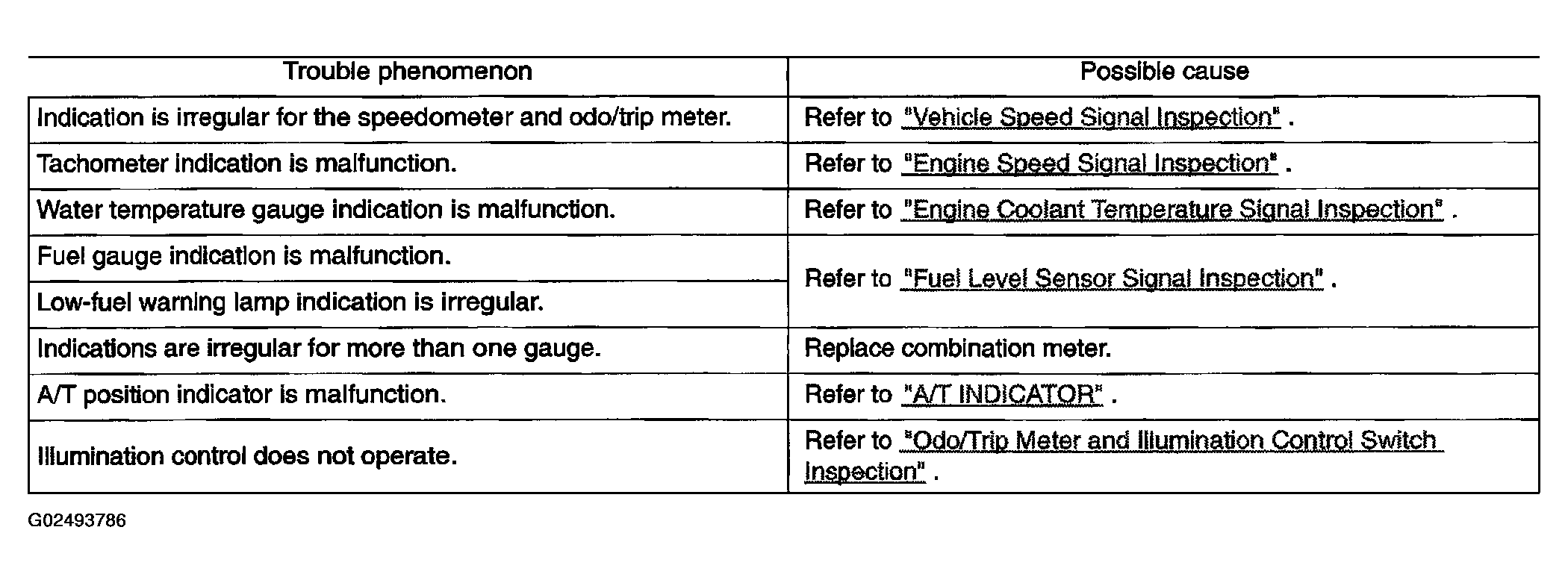

Fig 1: Isolating Causes Of Meter Malfunctions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
