Infiniti
>>
2004
>>
FX45
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Combination Meters
>>
Circuit Diagram
Circuit Diagram

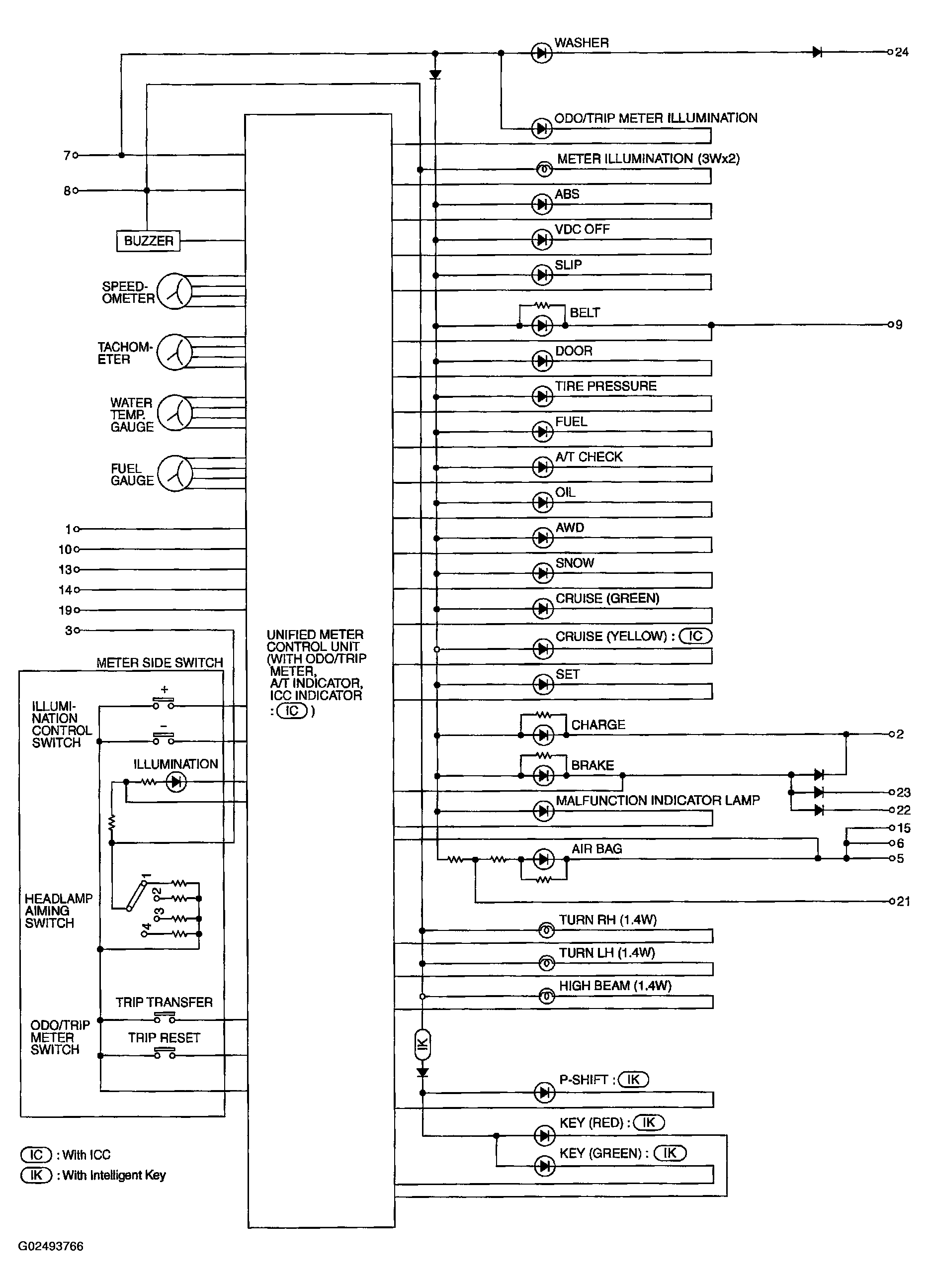

Fig 1: Combination Meter Circuit Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
