Extension Tube Replacement

Drain engine oil. Refer to Changing Engine Oil (VQ35DE) or Changing Engine Oil (VK45DE).
Pry out the extension tube from the engine oil pan.

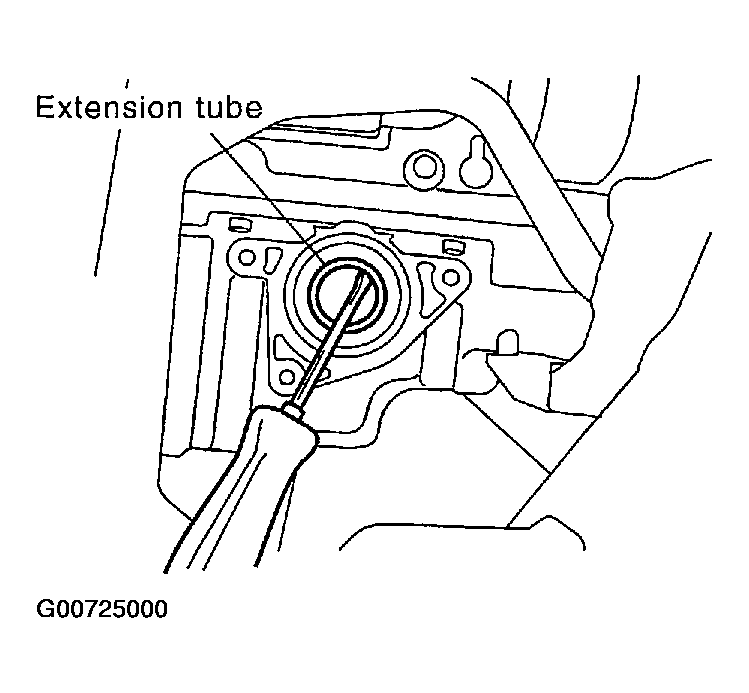

Fig 1: Prying Out Extension Tube From Engine Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the O-rings from the extension tube and replace them with new ones.

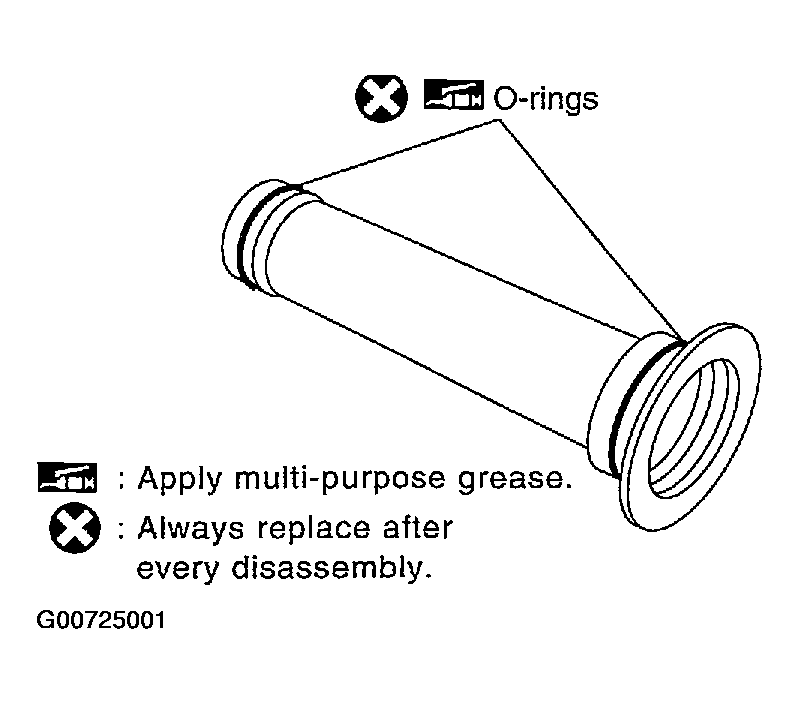

Fig 2: Removing & Replacing O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not reuse the O-ring. Always replace the O-ring with new one.
Apply grease to the new extension tube O-rings.
Install the extension tube into the engine oil pan.

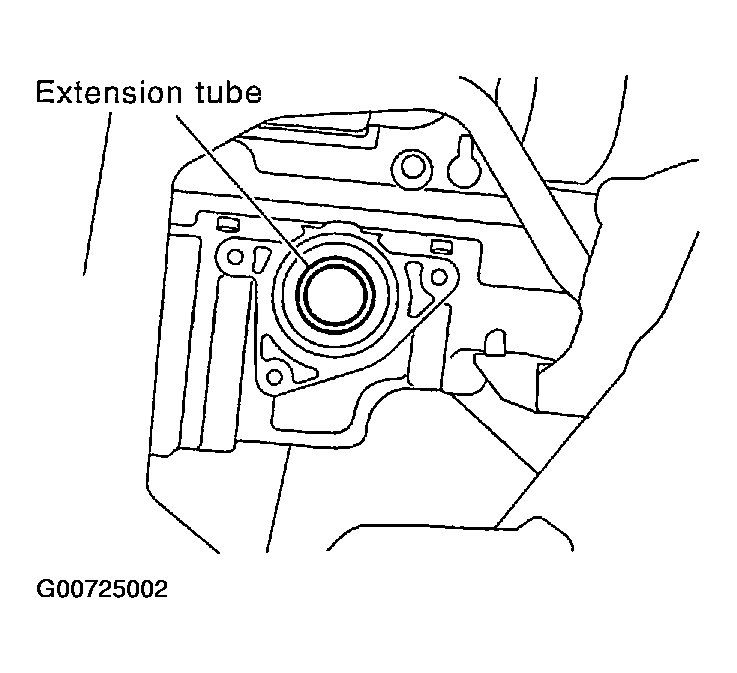

Fig 3: Locating Extension Tube In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
