Disassembly And Assembly: Inspection

Clean up the disassemble parts. Then, inspect if the parts are wear or damaged. If so, follow the measures below.

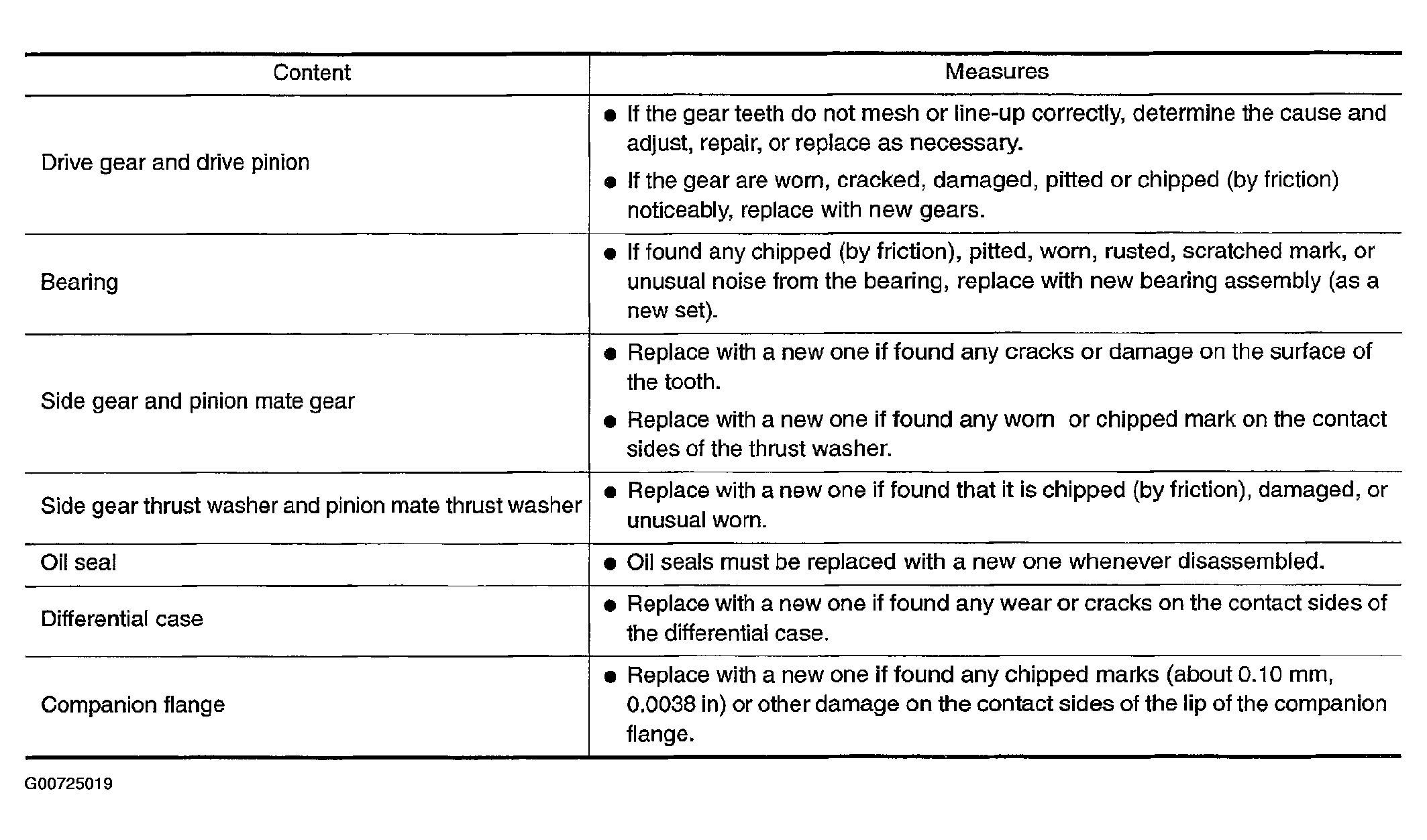

Fig 1: Displaying Measurements For Wear Or Damage Parts Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
