Schematic -BOSE System
>>
Without Navigation System
Without Navigation System

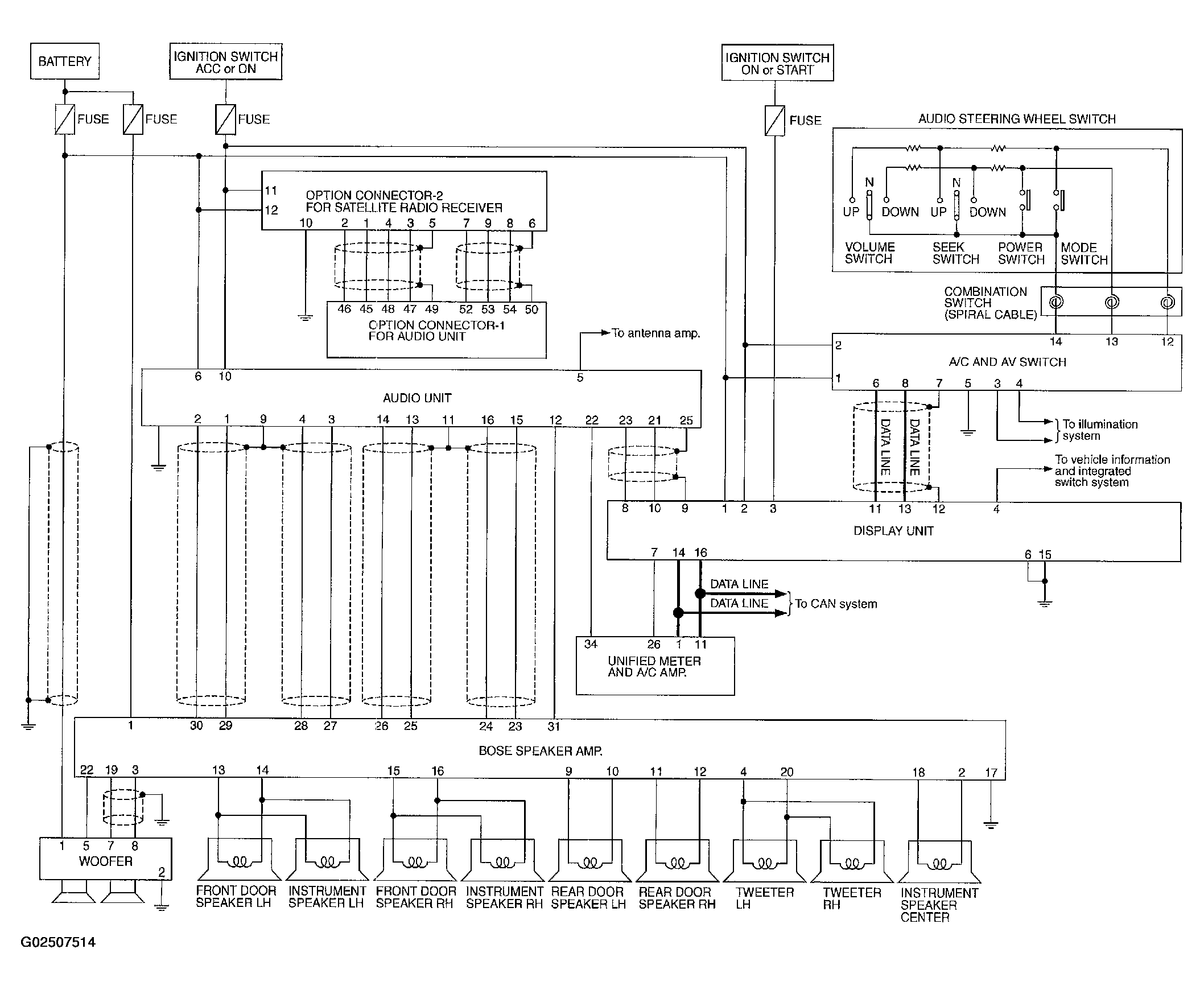

Fig 1: Displaying Schematic-BOSE System Without Navigation System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
