CONSULT-II Reference Value in Data Monitor Mode

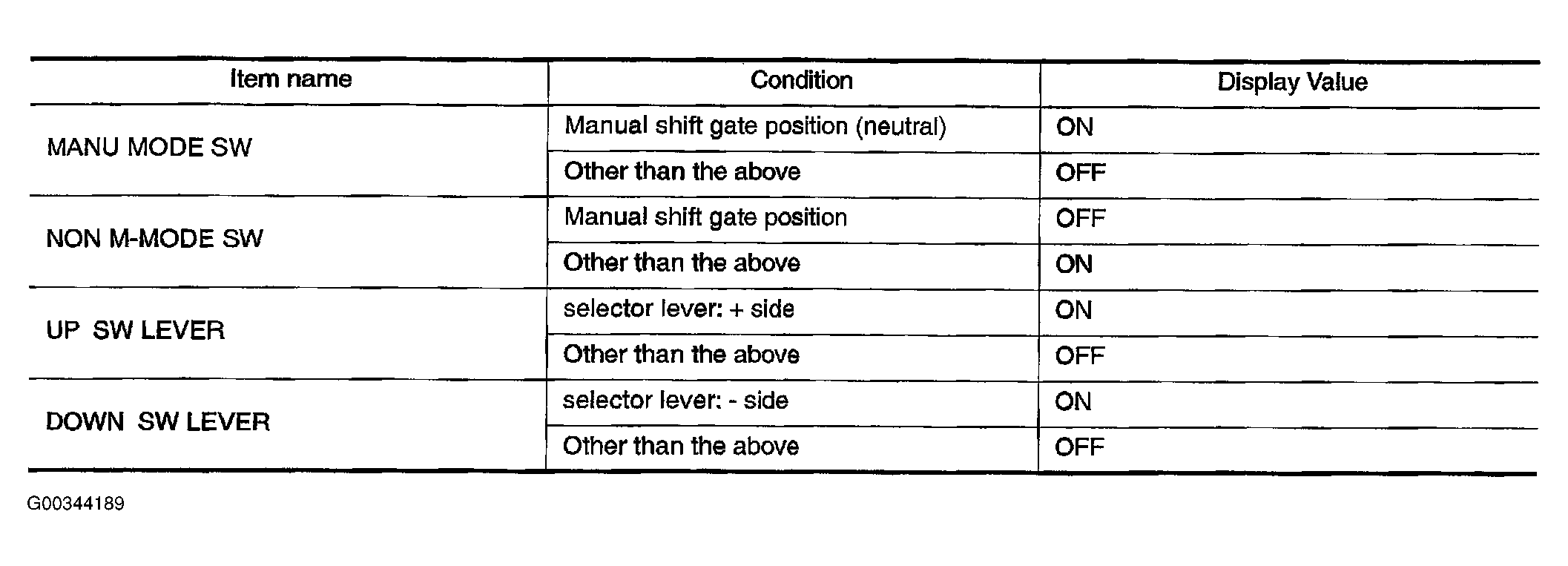

Fig 1: Component Display Values Under Various Conditions

G00344189

Courtesy of NISSAN MOTOR CO., U.S.A.
