Front Power Window Motor (Passenger Side) Circuit Check

Check Front Power Window Switch (Passenger Side) Output Signal
1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger side) connector and ground.

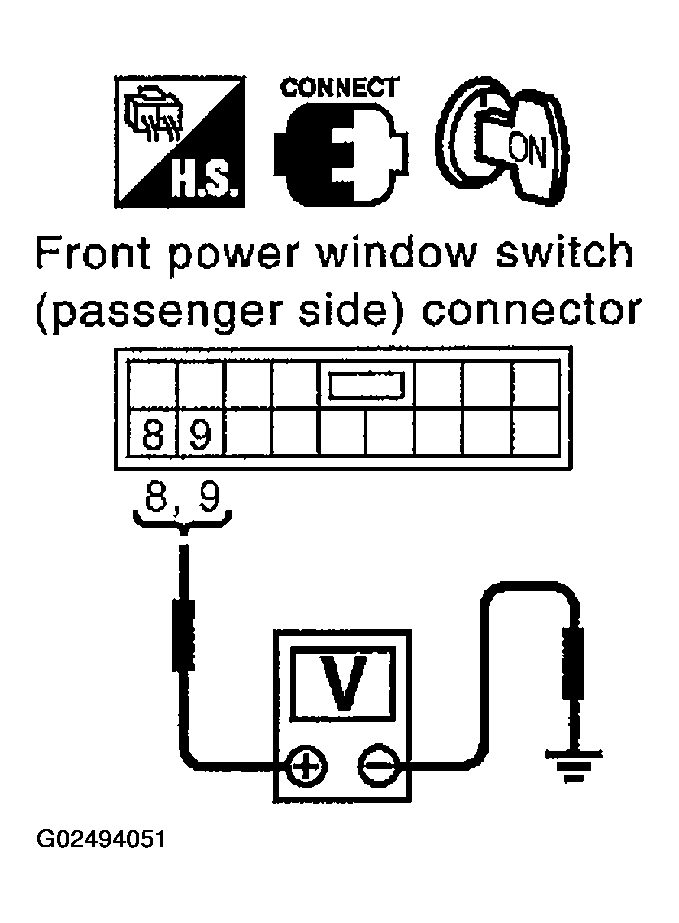

  Fig 1: Checking Voltage At Front Power Window Switch (Passenger Side) Connector D36 Terminals 8 & 9
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Front Power Window Switch (Passenger Side) Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Go to 2.
2. NG: Replace front power window switch (passenger side).
Check Harness Continuity
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) and front power window motor (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D36 terminals 8, 9 and front power window motor (passenger side) connector D38 terminals 1, 2.

  Fig 3: Front Passenger Side Power Window Motor Continuity Testing Procedures
  Courtesy of NISSAN MOTOR CO., U.S.A.

  8 (L) - 2 (L): Continuity should exist .

  9 (G) - 1 (G): Continuity should exist .
OK or NG
1. OK: Replace front power window motor (passenger side).
2. NG: Repair or replace harness between front power window switch (passenger side) and front power window motor (passenger side).
