Automatic Drive Positioner
>>
Symptom Chart
Symptom Chart

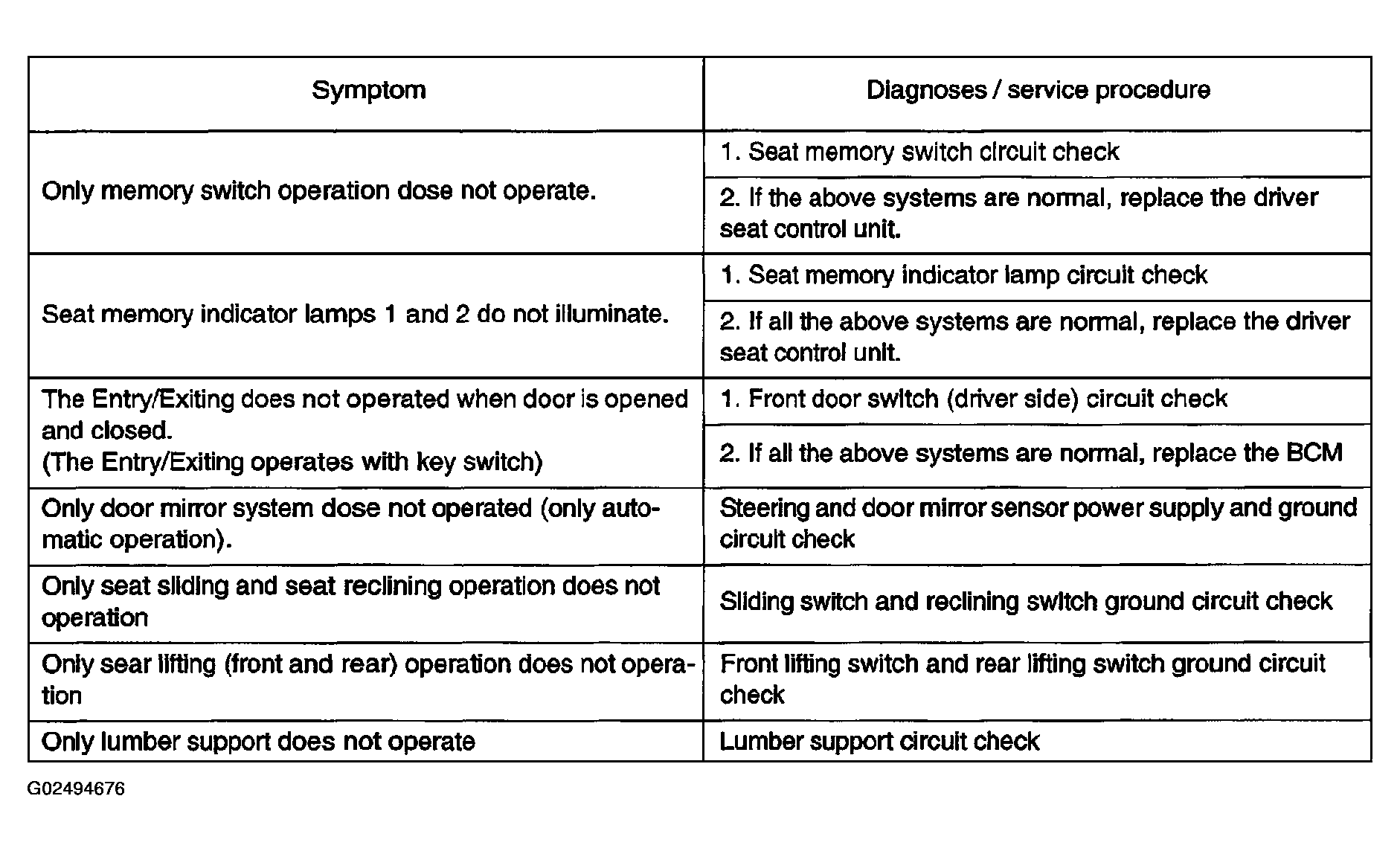

Fig 1: Displaying Symptom Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

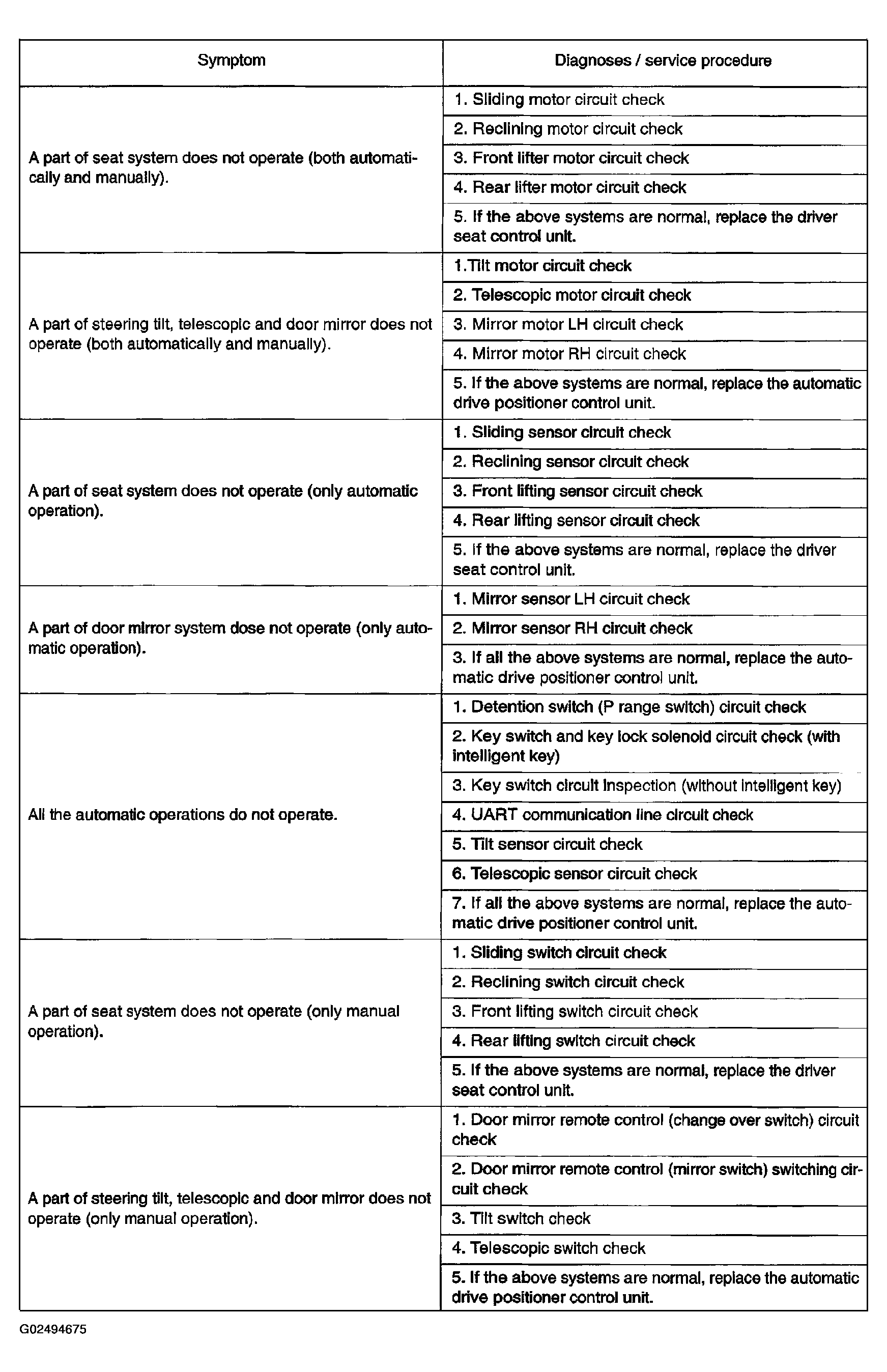

Fig 2: Displaying Symptom Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Displaying Symptom Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
