Seat Memory Switch Circuit Check

  1. Check function  .

    With CONSULT-II

    With "SET SW,MEMORY SW1, MEMORY SW2" on the DATA MONITOR, operate the switch to check ON/OFF operation.

    SEAT MEMORY SWITCH CIRCUIT CHECK

    Monitor Item [OPERATION Or UNIT] Parameter Contents
    MEMORY SW1 "ON/OFF" ON/OFF status judged from the seat memory switch 1 signal is displayed.
    MEMORY SW2 "ON/OFF" ON/OFF status judged from the seat memory switch 2 signal is displayed.
    SET SW "ON/OFF" ON/OFF status judged from the setting switch signal is displayed.

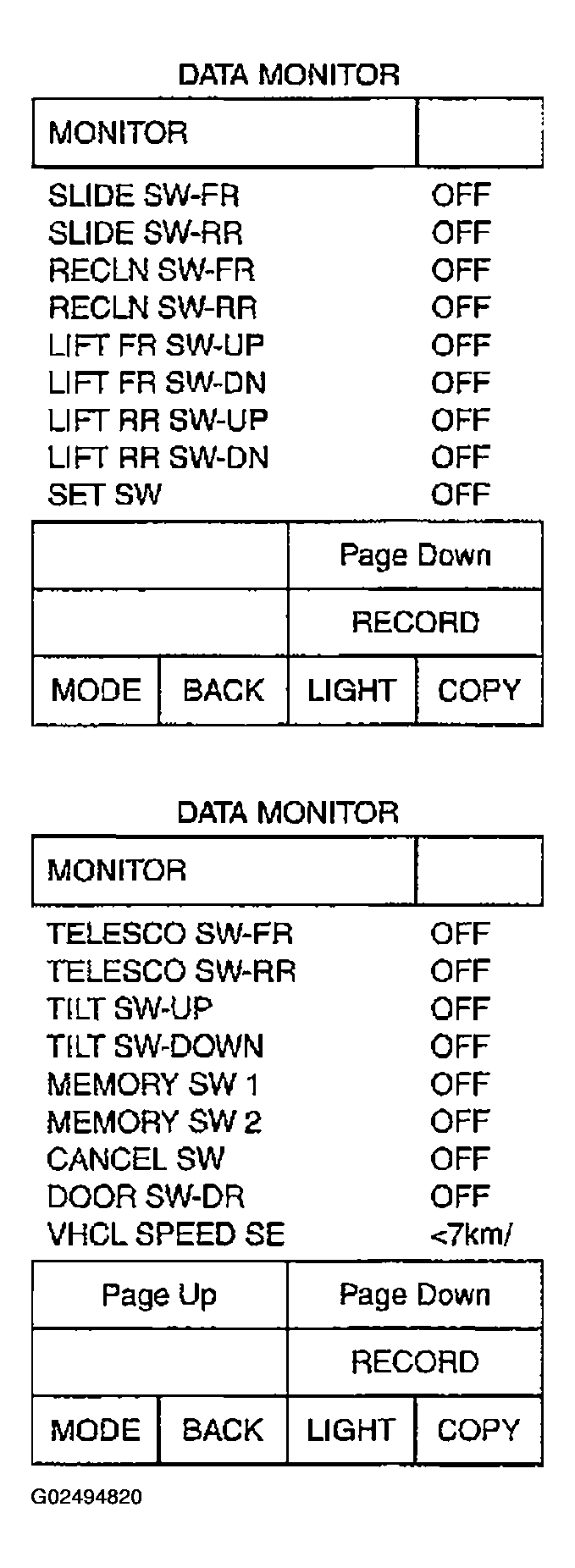

    Fig 1: Identifying DATA MONITOR Display Screen
    G02494820Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. GO TO NEXT STEP.
    2. OK or NG
      1. OK: Seat memory switch circuit is OK.
      2. NG: GO TO NEXT STEP.

  2. Check seat memory switch  .
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch and lumbar support switch connector.
    3. Check continuity between seat memory switch and lumbar support switch connector B158 terminal 22, 34, 35 and 61.

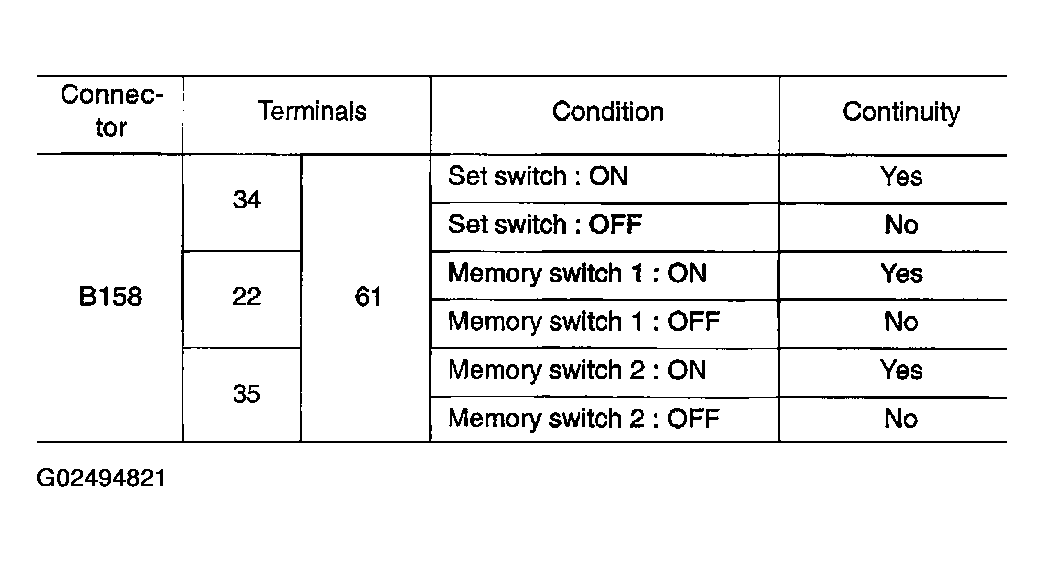

      Fig 2: Displaying Seat Memory Switch & Lumbar Support Switch Connector & Terminals Check Table
      G02494821Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO NEXT STEP.
    2. NG: Replace seat memory switch and lumbar support switch.

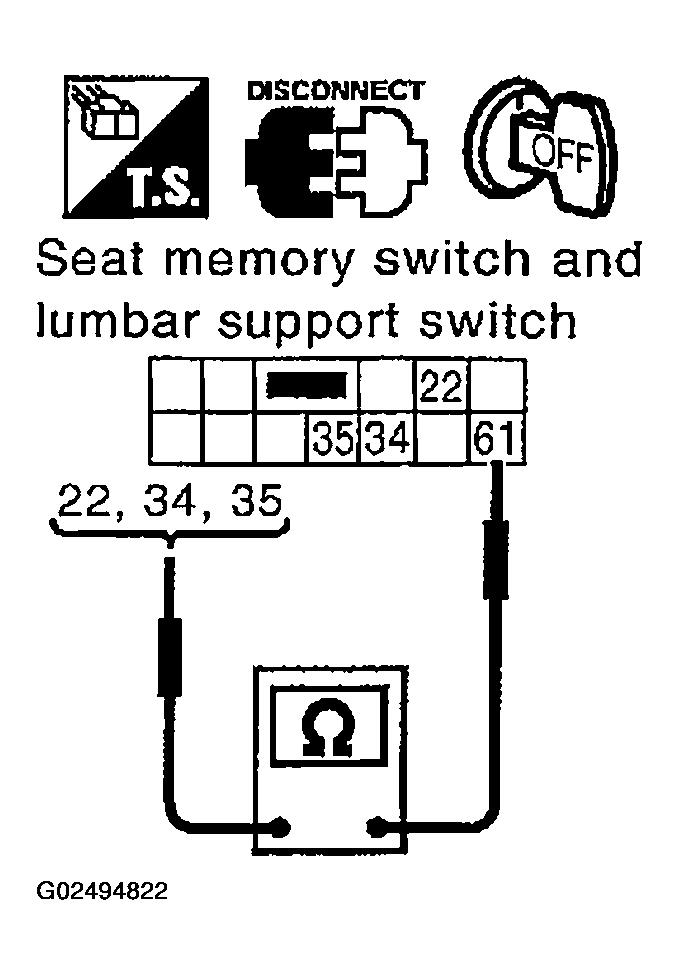

      Fig 3: Checking Continuity Between Seat Memory Switch & Lumbar Support Switch Connector Terminals
      G02494822Courtesy of NISSAN MOTOR CO., U.S.A.

  3. Check harness continuity  .
    1. Disconnect driver seat control unit connector.
    2. Check continuity between driver seat control unit connector B152 terminals 22, 34, 35 and seat memory switch and lumbar support switch connector B158 terminals 22, 34, 35.
      1. 22 (L/G) - 22 (L/G): Continuity should exist  .
      2. 34 (L/W) - 34 (L/W): Continuity should exist  .
      3. 35 (L/B) - 35 (L/B): Continuity should exist  .

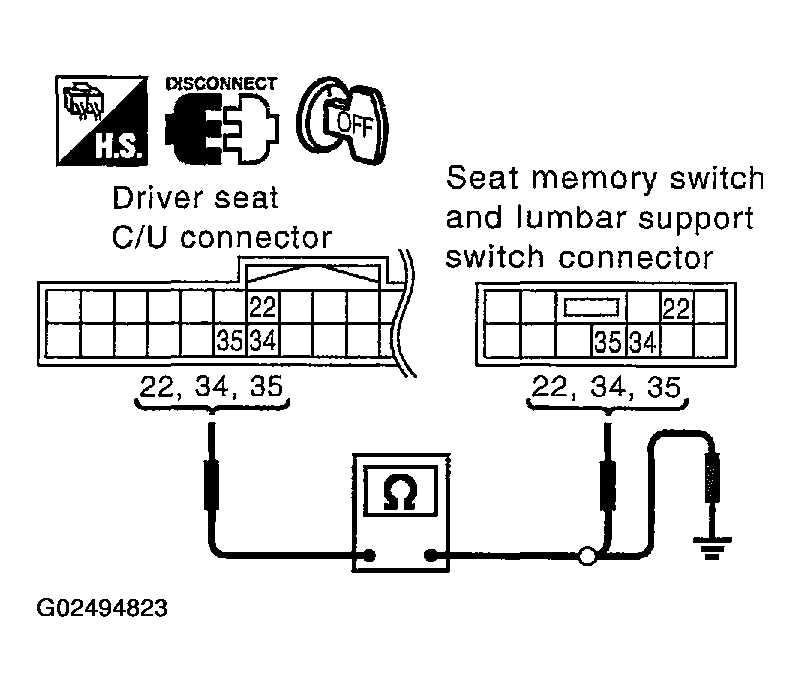

      Fig 4: Checking Continuity Between Driver Seat Control Unit & Seat Memory Switch & Lumbar Support Switch
      G02494823Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between automatic drive positioner control unit connector M152 terminals 22, 34, 35 and ground.
      1. 22 (L/G) - Ground: Continuity should not exist  .
      2. 34 (L/W) - Ground: Continuity should not exist  .
      3. 35 (L/B) - Ground: Continuity should not exist  .

    OK or NG

    1. OK: GO TO NEXT STEP.
    2. NG: Repair or replace harness between driver seat control unit and seat memory switch and lumbar support switch.

  4. Check seat memory switch and lumbar support switch ground circuit  .

    Check continuity between seat memory switch and lumbar support switch B158 terminal 61 and ground.

    61 (B/Y) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace driver seat control unit.
    2. NG: Repair or replace harness between seat memory switch and lumbar support switch and ground.

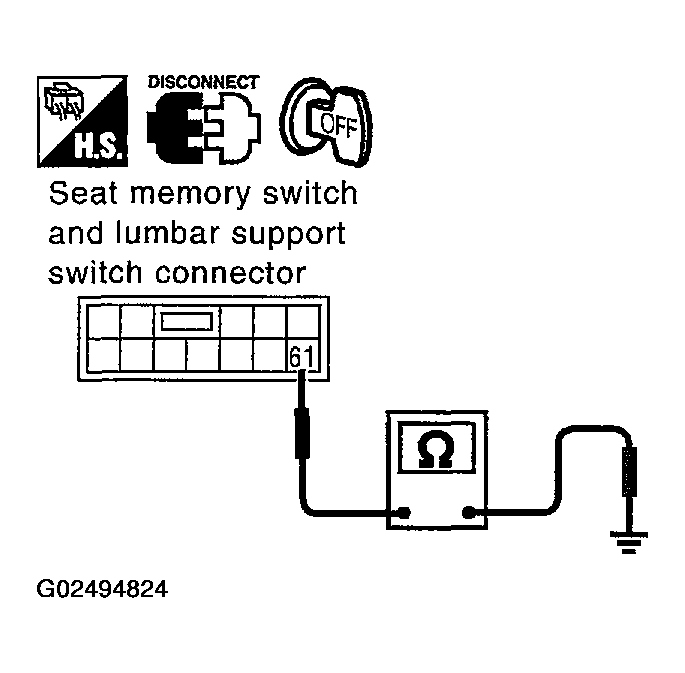

      Fig 5: Checking Continuity Between Seat Memory Switch & Lumbar Support Switch & Ground
