Intelligent Key System
>>
Intelligent Key System
>>
System Description
>>
Warning And Alarm Function
>>
Warning Procedure
Warning Procedure

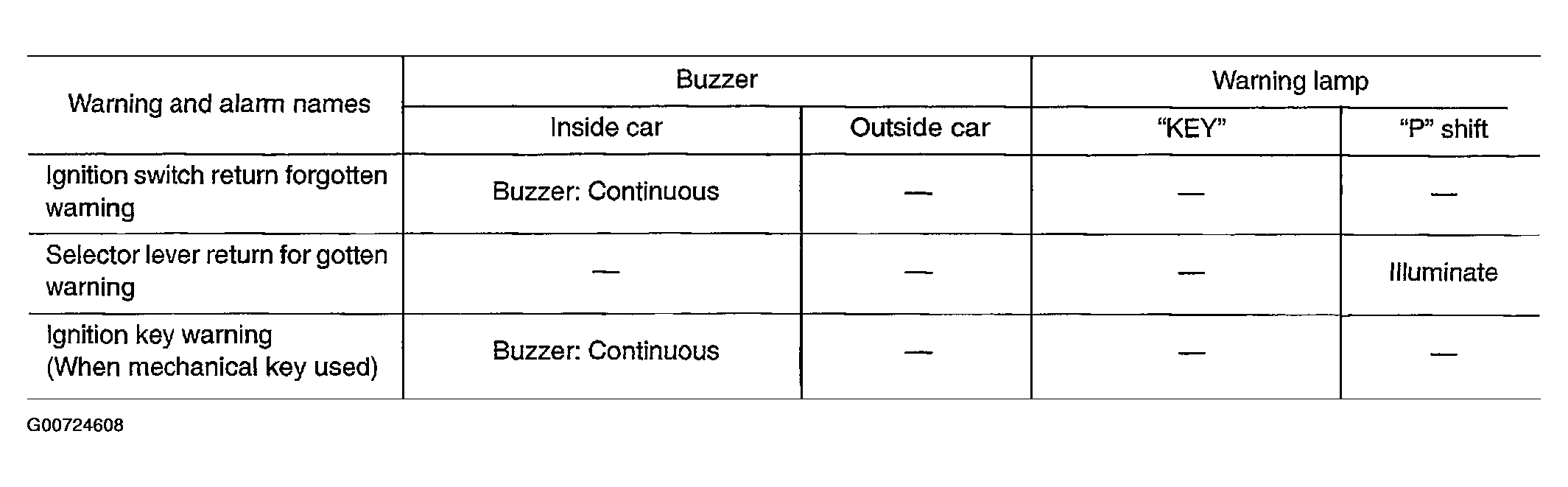

Fig 1: Warning Procedure Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

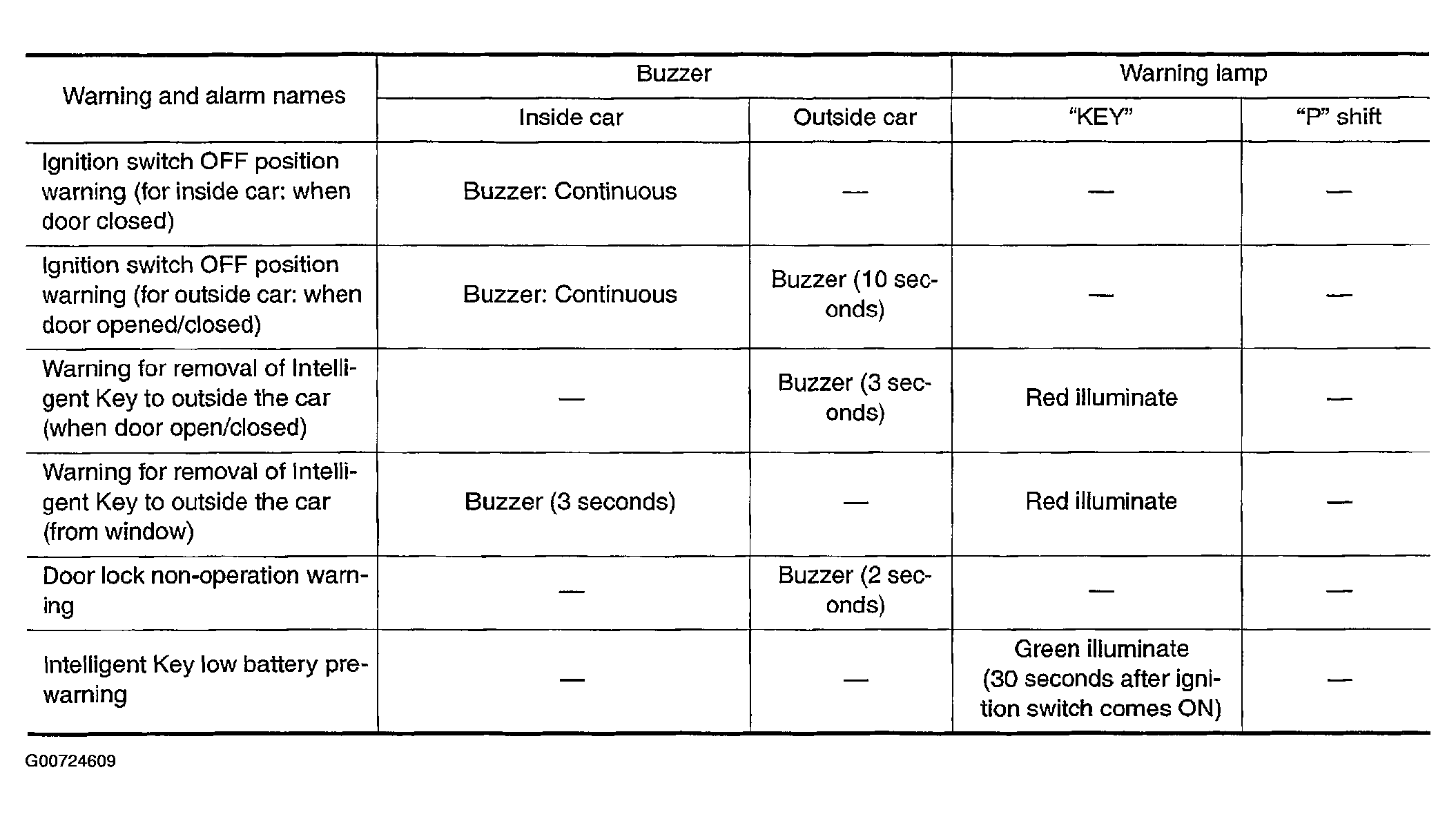

Fig 2: Warning Procedure Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
