Consult-II Function
>>
Data Monitor Mode
>>
Display Item List
Display Item List

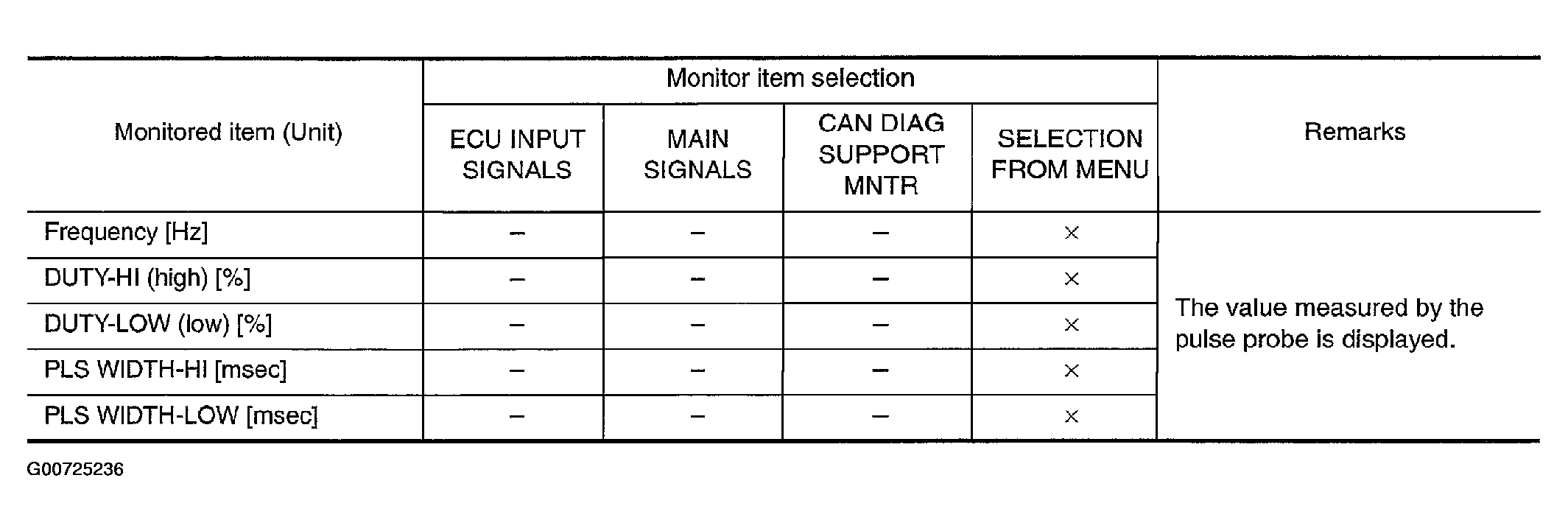

Fig 1: Displaying Data Monitor Mode Item List (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

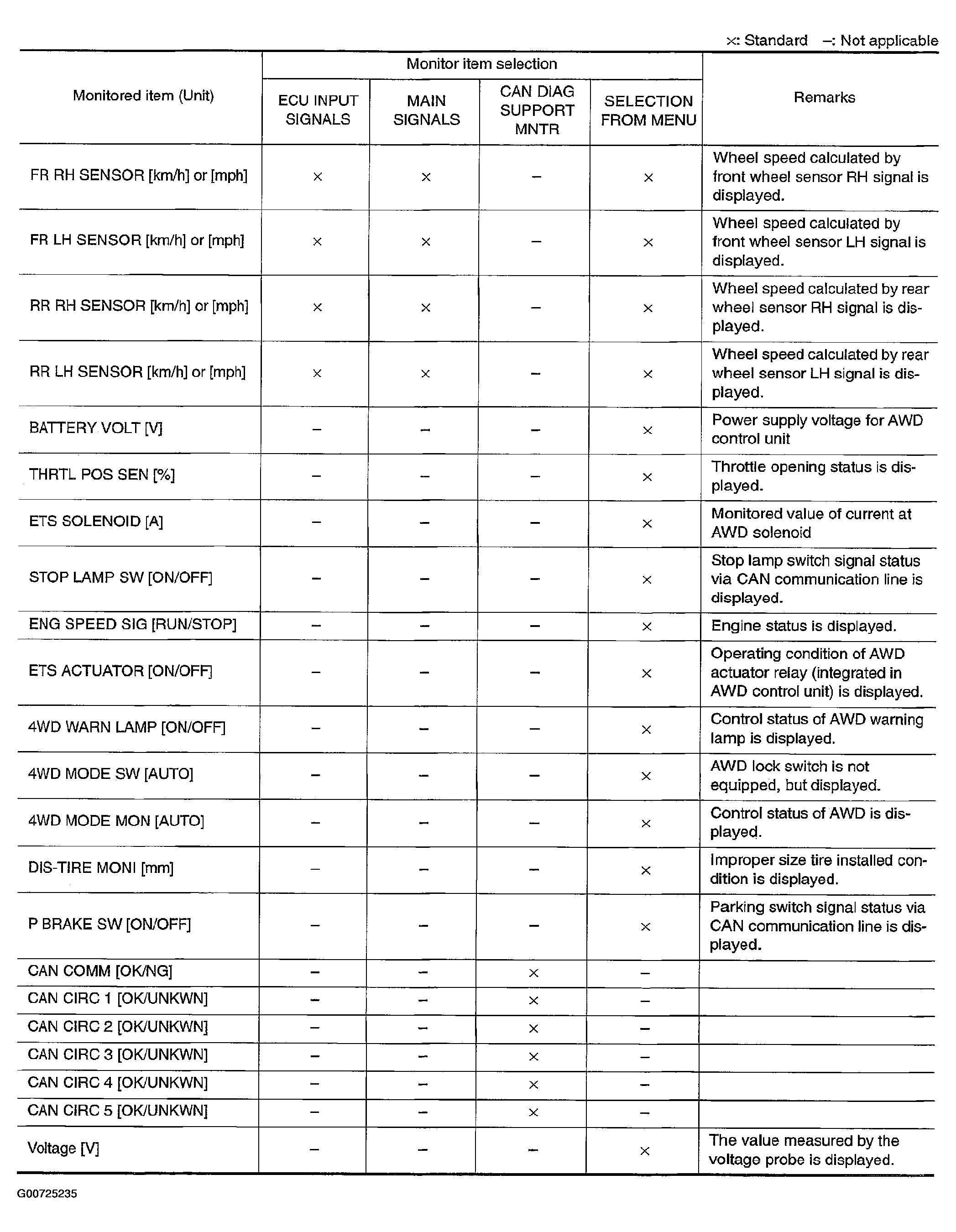

Fig 2: Displaying Data Monitor Mode Item List (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
