CONSULT-II Setting Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operations Manual".
1. Turn ignition switch "OFF".
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle.
3. Turn ignition switch "ON".

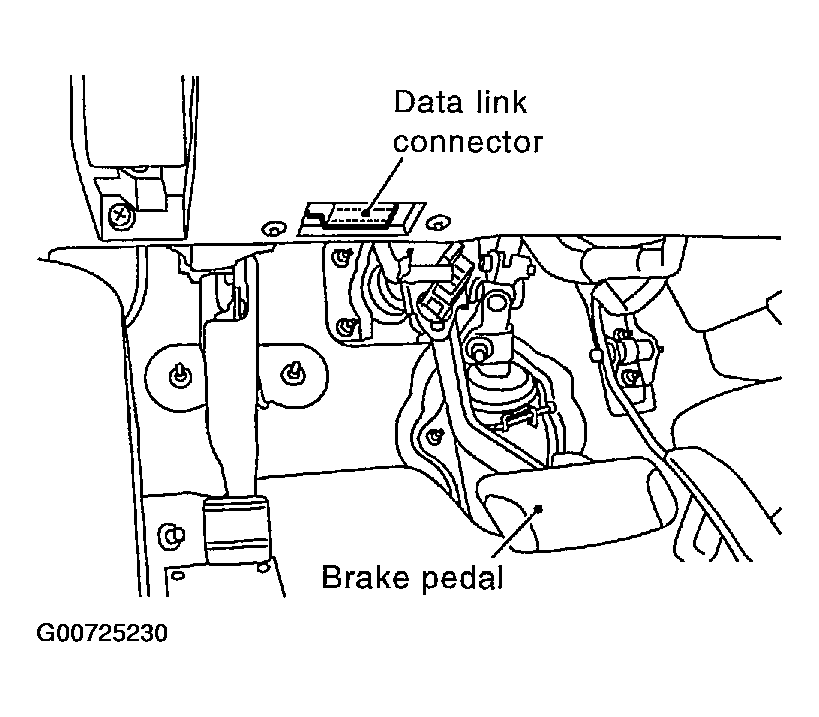

  Fig 1: Locating Data Link Connector On Vehicle
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Touch "START (NISSAN BASED VHCL)".

  Fig 2: Touching START In CONSULT-II Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "ALL MODE AWD/4WD".
  If "ALL MODE AWD/4WD" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
6. Perform each diagnostic test mode according to each service procedure.

  Fig 3: Selecting All Mode AWD/4WD In Select System Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
