Front Drive Shaft And Drive Chain

Separate front case and rear case. Refer to FRONT CASE AND REAR CASE .
Remove drive chain and front drive shaft while tapping front drive shaft with plastic hammer.
CAUTION: Be careful not to tap drive chain.

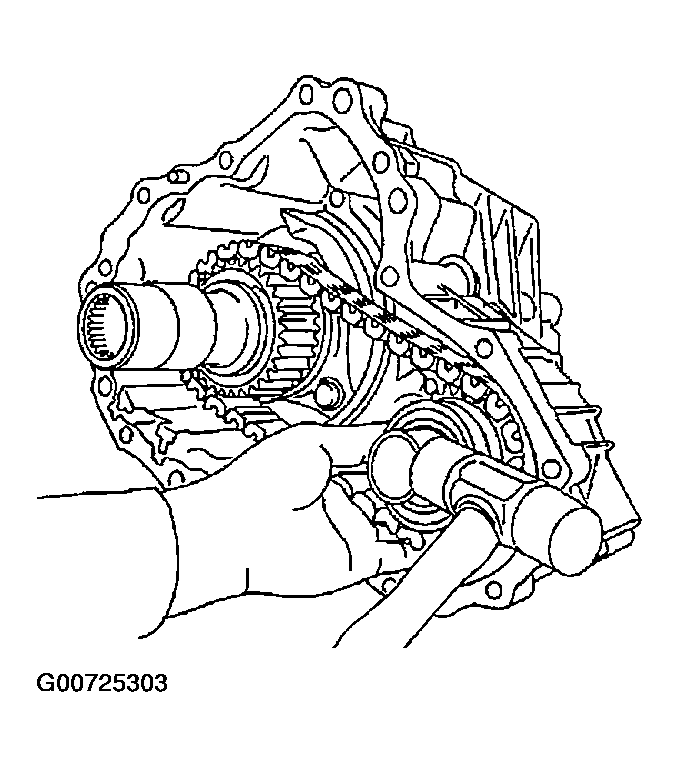

Fig 1: Separating Front Case & Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front drive shaft front bearing, using drift and puller.
1. Tool number : ST31214000 (J25269-B)

  Fig 2: Removing Front Drive Shaft Front Bearing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front drive shaft rear bearing, using drift and puller.
1. Tool number : ST31214000 (J25269-B)

  Fig 3: Removing Front Drive Shaft Rear Bearing
  Courtesy of NISSAN MOTOR CO., U.S.A.
