Components (With Automatic Drive Positioner)

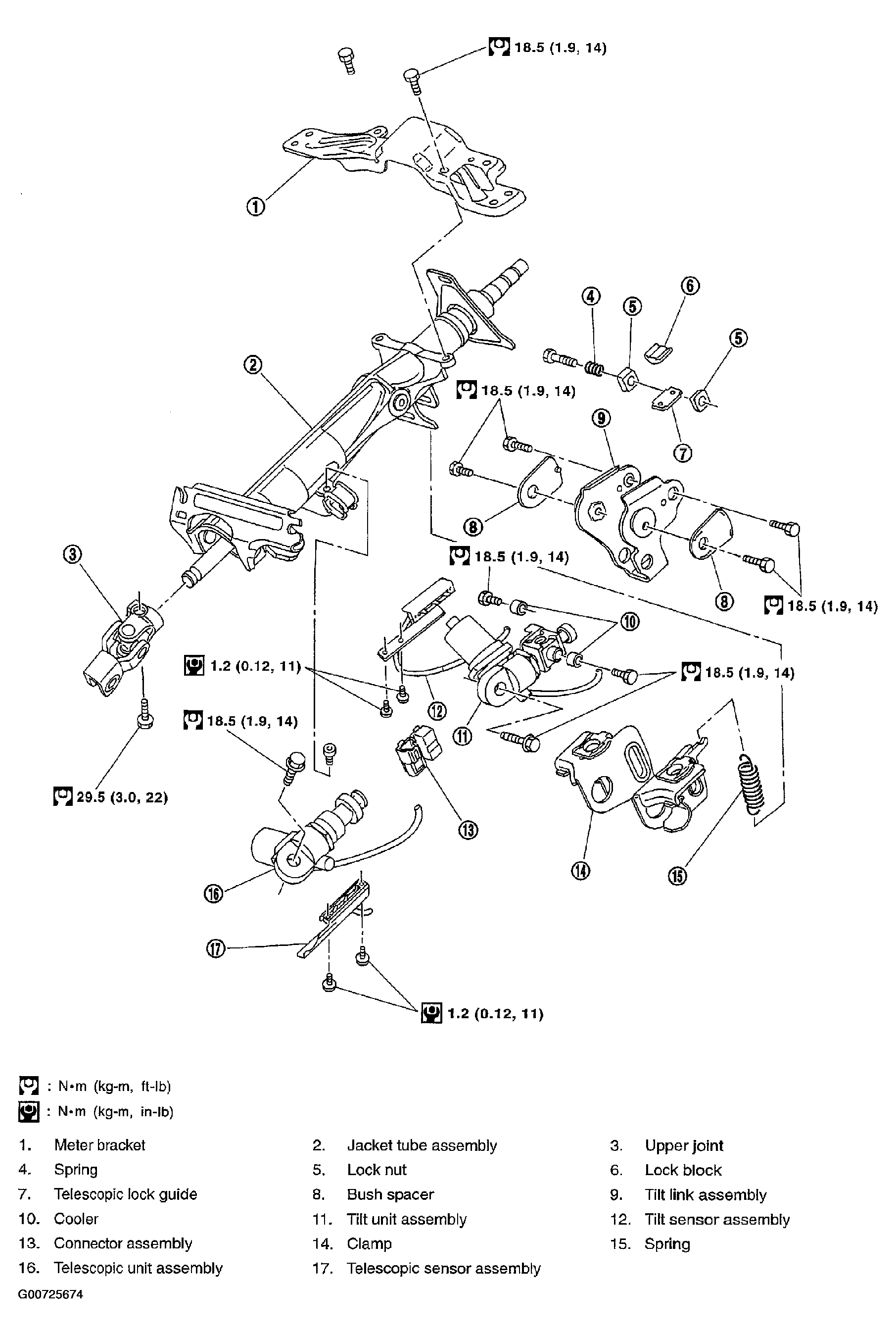

Fig 1: Displaying Steering Wheel Components (With Automatic Drive Positioner)

G00725674

Courtesy of NISSAN MOTOR CO., U.S.A.
