Home >> Infiniti >> 2004 >> FX35 AWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Power Steering Gear And Linkage >> Removal And Installation >> Notes

Removal And Installation: Notes

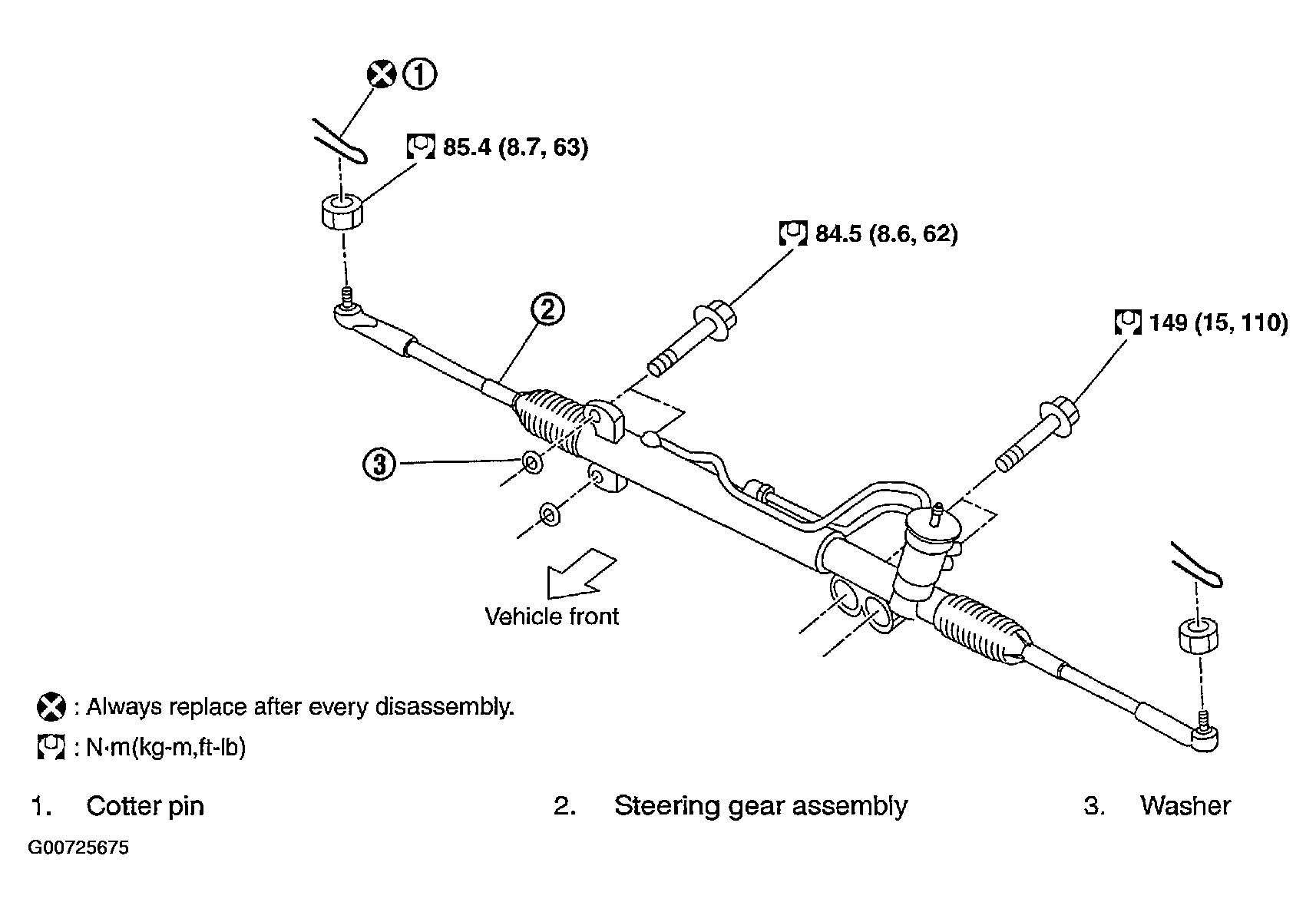

Fig 1: Displaying Power Steering Gear & Linkage
G00725675Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore fix steering wheel with a string to avoid turns.
