Lubricant Adjusting Procedure For Components Replacement Except Compressor

After replacing any of the following major components, add the correct amount of lubricant to the system. Amount of lubricant to be added.

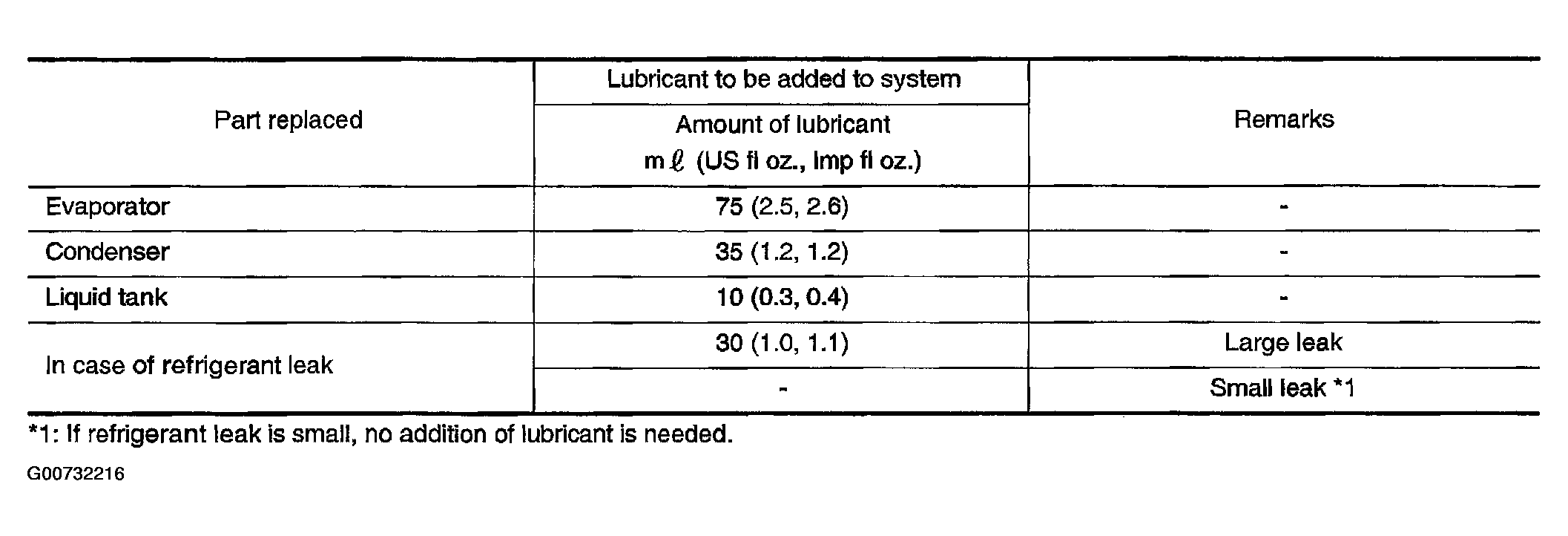

Fig 1: Adding Lubricant Based On Component Replacement

Courtesy of NISSAN MOTOR CO., U.S.A.
