Separation Work

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Change engine slinger installing to cylinder head (right bank).

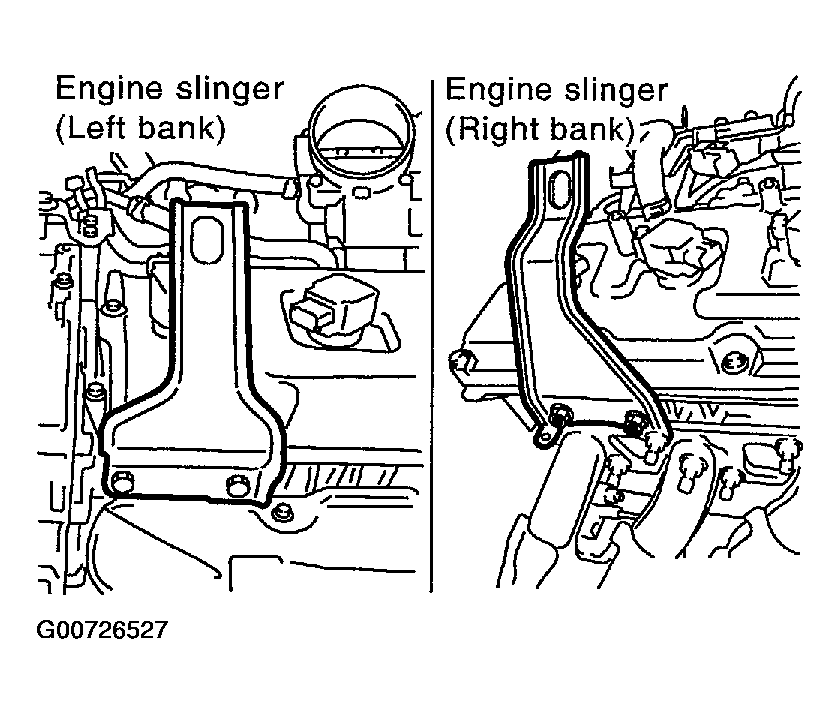

    Fig 1: Locating Engine Slingers
    G00726527Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: In order to keep secure position when hoisting engine.

    Slinger bolts:

    1. 33.4 N.m (3.4 kg-m, 25 ft-lb)

  2. Remove engine mounting insulators (RH and LH) under side nut with power tool.
  3. Lift with hoist and separate engine and transmission assembly from front suspension member.
    CAUTION:
    • Before and during this lifting, always check if any harnesses are left connected.
    • Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
  4. Remove alternator. Refer to GENERATOR .
  5. Remove starter motor. Refer to REMOVAL & INSTALLATION .
  6. Separate engine from transmission assembly. Refer to REMOVAL AND INSTALLATION (AWD MODELS) .
  7. Remove front final drive from engine. Refer to FRONT FINAL DRIVE ASSEMBLY .
  8. Remove engine mounting insulators (RH and LH) and brackets (RH and LH) from engine with power tool.
  9. Remove engine rear member and engine mounting insulator (rear) from transmission.
