Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

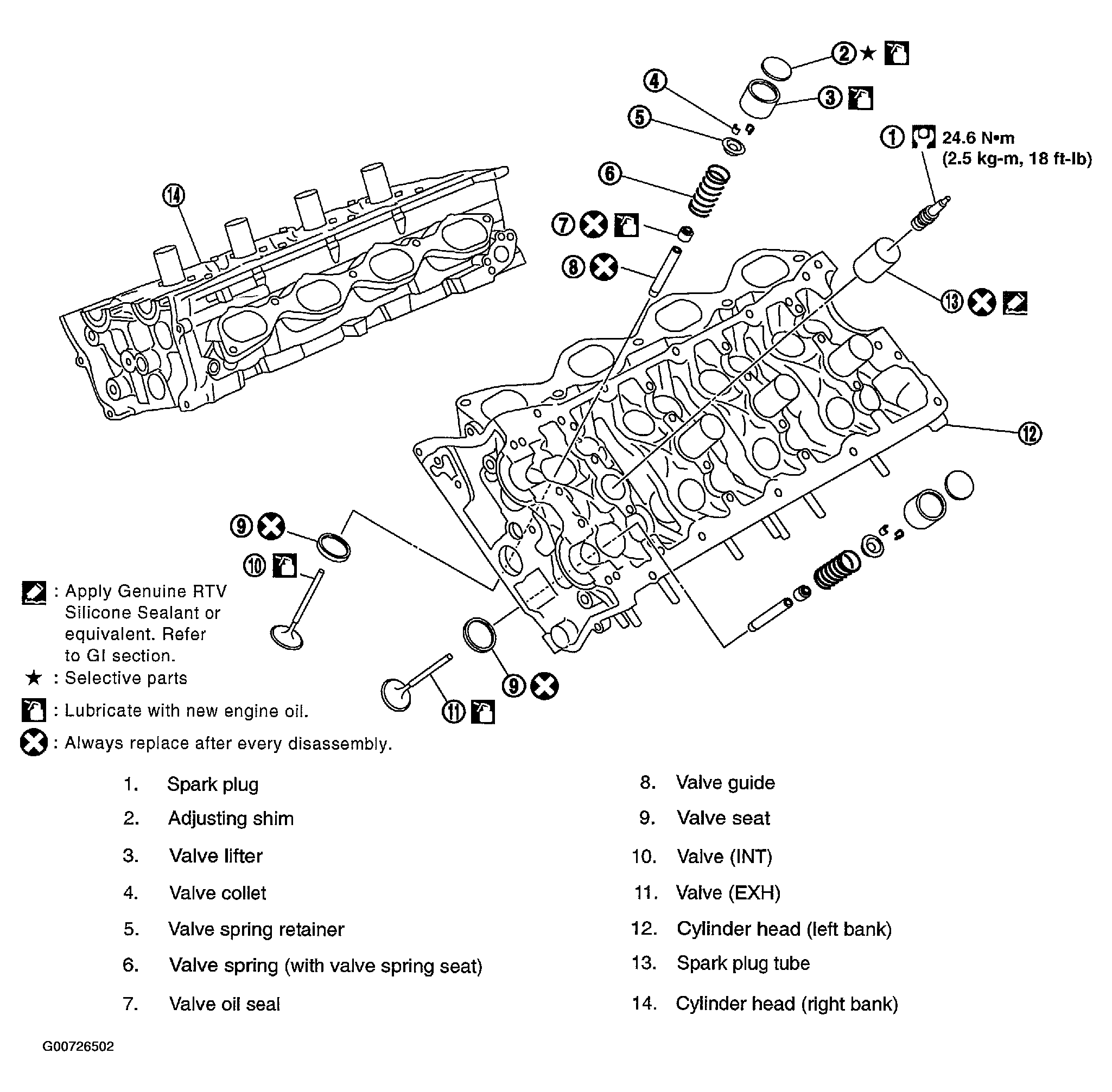

Fig 1: Identifying Cylinder Head Valve Train Components

Courtesy of NISSAN MOTOR CO., U.S.A.
