Piston Selection Table

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

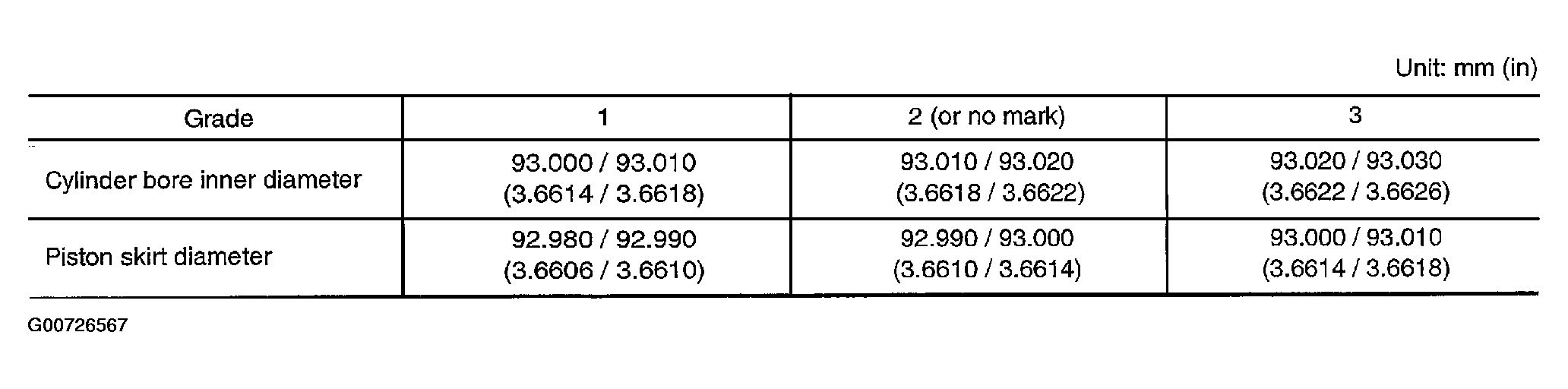

Fig 1: Matching Piston To Cylinder Bore
G00726567Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Piston is available together with piston pin as assembly.
  • Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no piston pin grades can be selected. (Only "0" grade is available.)
  • No second grade mark is available on piston.
