How to Display SRT Code

With CONSULT-II

Selecting SRT STATUS in DTC CONFIRMATION mode with CONSULT-II.

For items whose SRT codes are set, a CMPLT is displayed on the CONSULT-II screen; for items whose SRT codes are not set, INCMP is displayed.

A sample of CONSULT-II display for SRT code. See Fig 1.

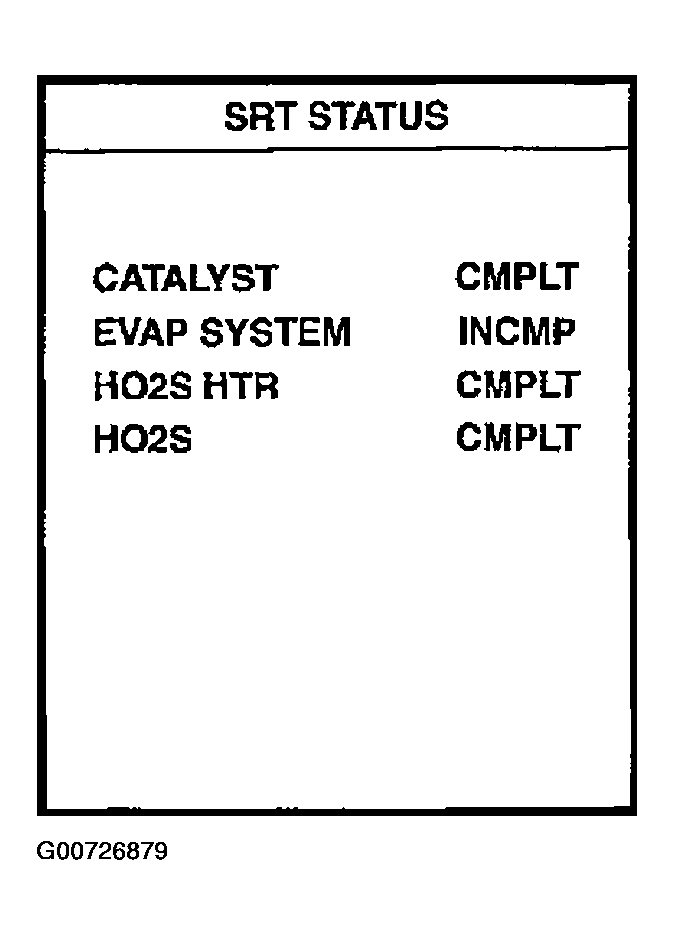

Fig 1: Displaying SRT Code With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

INCMP means the self-diagnosis is incomplete and SRT is not set.

CMPLT means the self-diagnosis is complete and SRT is set.

With GST

Selecting MODE 1 with GST (Generic Scan Tool)
