EVAP Canister
Tighten EVAP canister as shown in
Figure
.

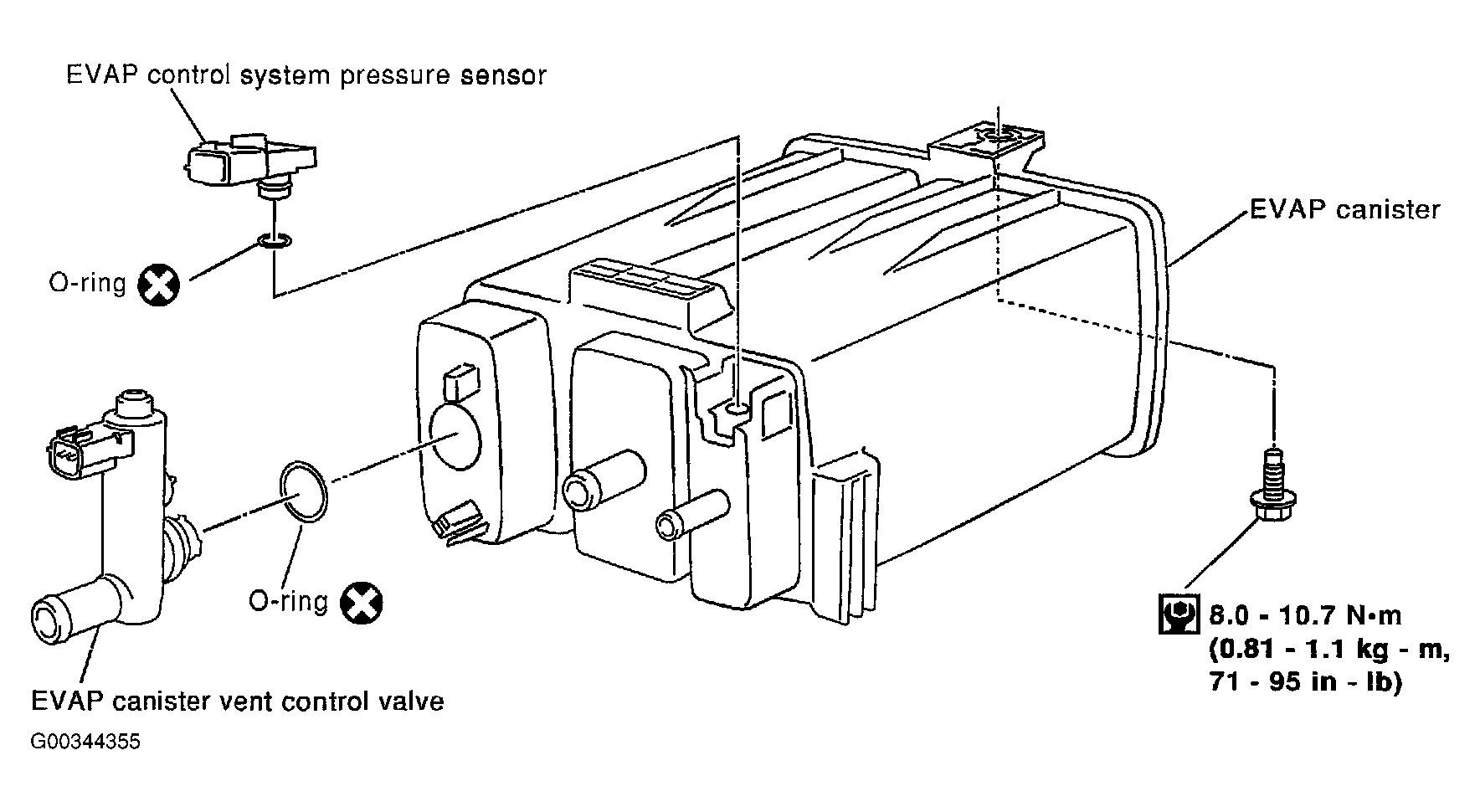

Fig 1: Identifying EVAP Canister Components
Courtesy of NISSAN MOTOR CO., U.S.A.
