DTC U1000 & U1001 Can Communication Line: Wiring Diagram

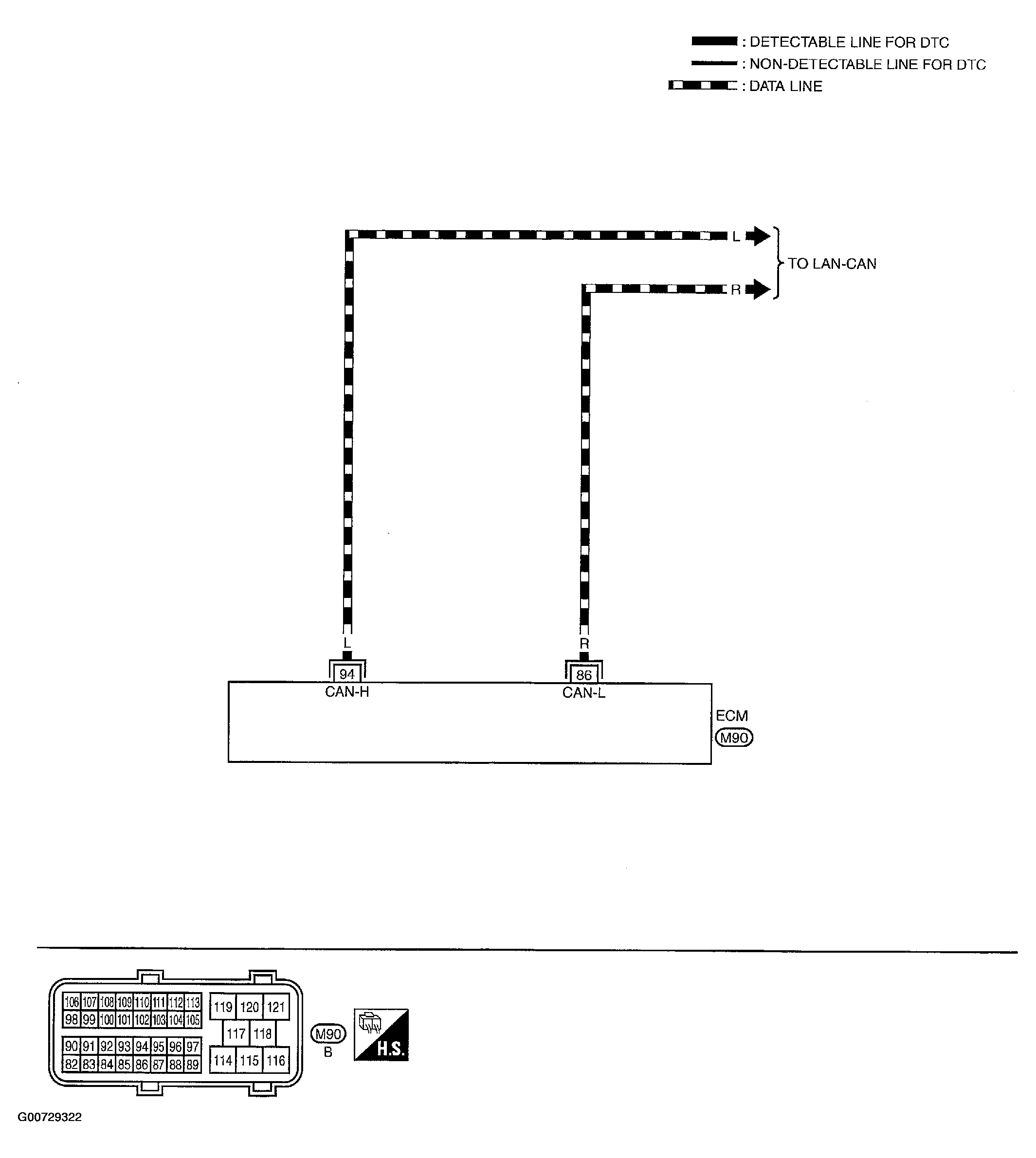

Fig 1: Wiring Diagram

G00729322

Courtesy of NISSAN MOTOR CO., U.S.A.
