Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

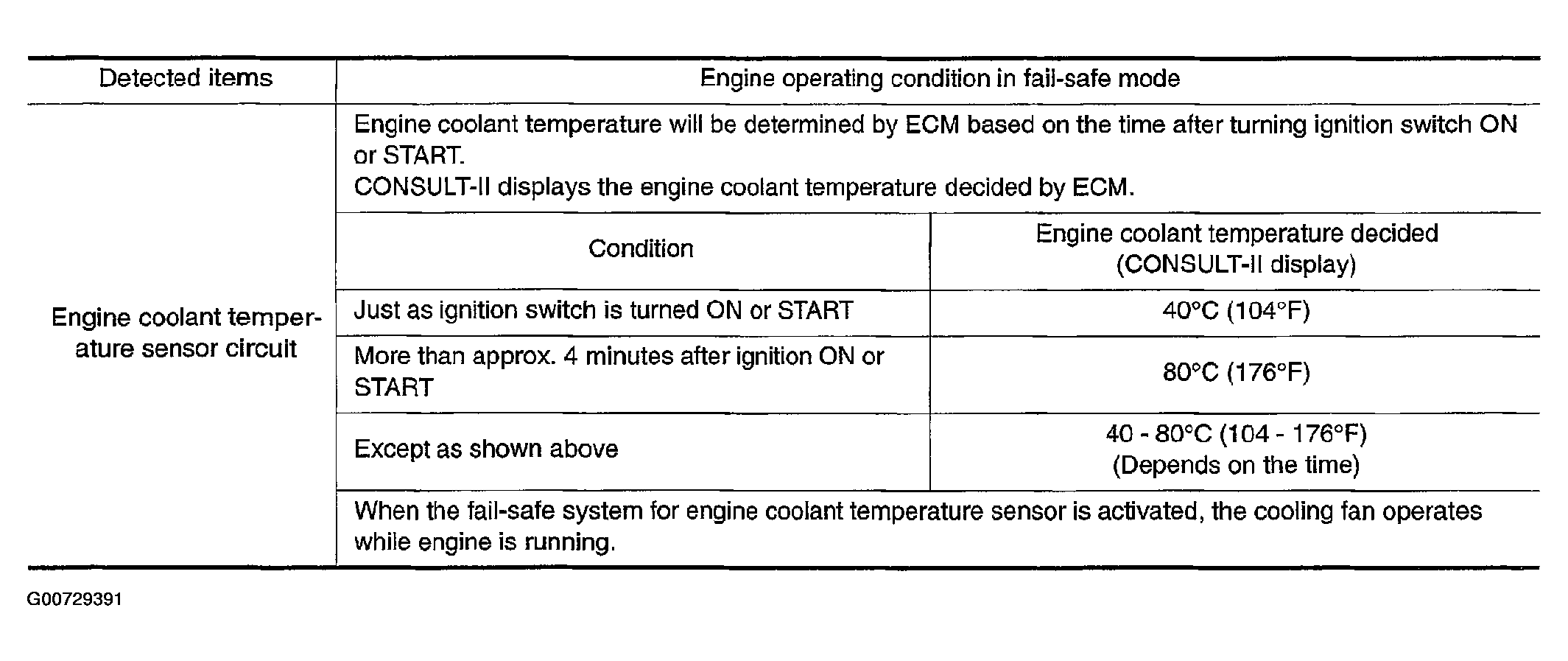

Fig 1: Identifying Engine Conditions Under Fail-Safe Mode (DTC P0117 & P0118)
G00729391Courtesy of NISSAN MOTOR CO., U.S.A.
