Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Oil Pump
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

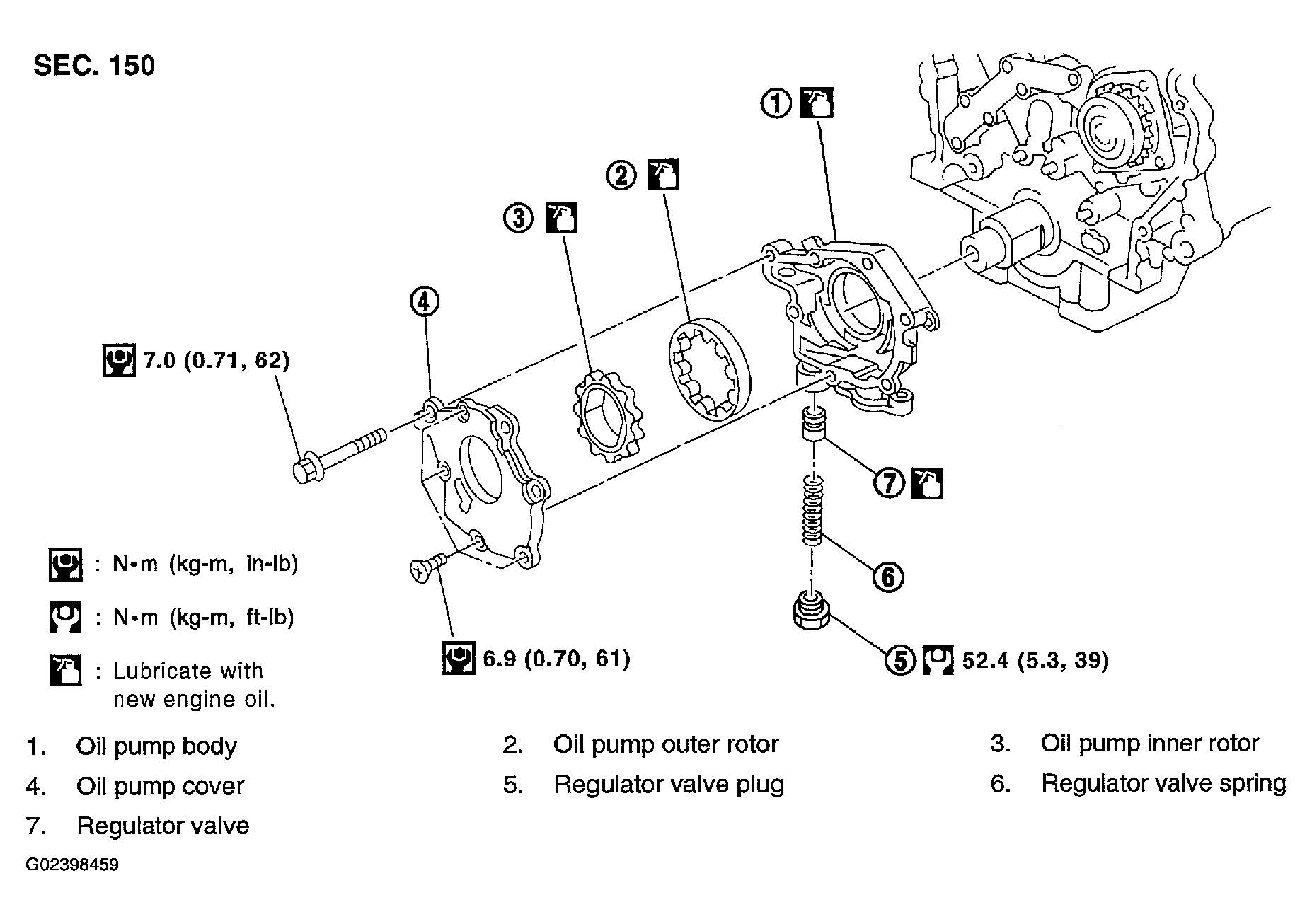

Fig 1: Identifying Oil Pump Components
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
