Home
>>
Infiniti
>>
2004
>>
FX35 AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Oil Cooler
>>
Removal and Installation
>>
AWD Model
AWD Model

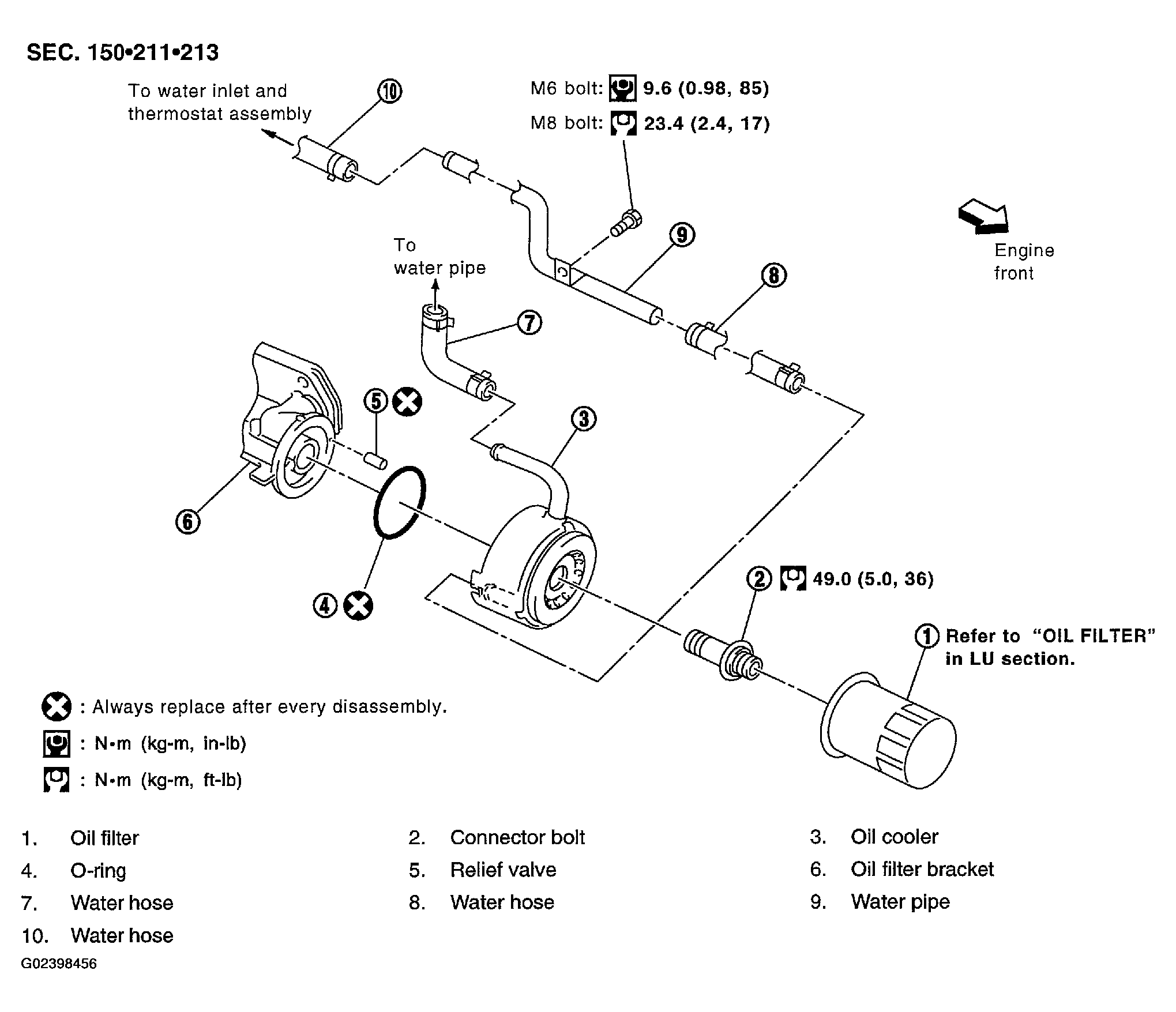

Fig 1: Identifying Oil Filter Related Components (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
